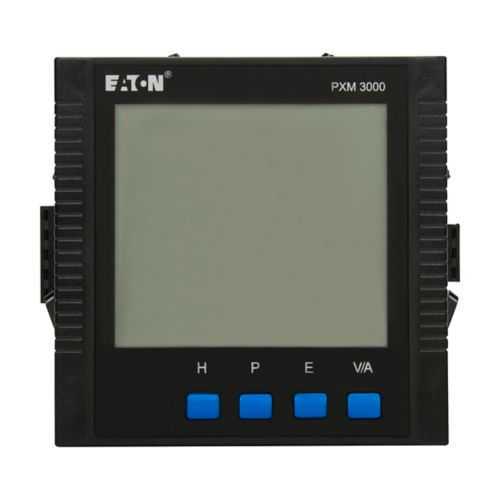

Eaton PXM3K-DISP-3 Power Xpert meter 3000 - 60 Hz
Part Number: PXM3K-DISP-3
Quick Summary
Power Xpert meter 3000 display is a panel-mount remote readout that provides clear, real-time metering for din-rail mounted transducers in electrical panels. Engineers often grapple with ambiguous signals and slow fault diagnosis when meters lack direct visibility on the panel. Compliances details require confirmation from the manufacturer, and the unit includes a 1-year warranty to support durable field deployments. This panel mount remote display reduces wiring complexity, shortens commissioning times, and enhances reliability across Eaton's Power Xpert metering ecosystem. Designed for industrial power management, it delivers instant visibility and supports scalable monitoring in control rooms and machine halls.
Product Information
Extended Description
PXM3K-DISP-3 Eaton: Eaton Power Xpert meter 3000, Panel Mount Remote Display for din-rail mount transducer version, Include one 6ft cable
Product Name
Eaton Power Xpert meter 3000
Catalog Number
PXM3K-DISP-3
UPC
720591000134
Product Length/Depth
3.5 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.25 lb
Warranty
1 year
Compliances
Contact Manufacturer
Type
Display
Frequency rating
60 Hz
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - PXM1K-DISP-3
Feature: Panel-mount remote display for din-rail mounted transducers. Business Impact: Enhances visibility and reduces troubleshooting time, enabling faster decision-making during commissioning and maintenance. Application: Ideal for electrical panels in manufacturing lines and utility cabinets. The result is higher diagnostic confidence and lower downtime during start-ups. Feature: Compact dimensions and light weight (3.5 in depth, 2.25 in width, 1 in height; 0.25 lb). Business Impact: Minimal panel footprint and easy reallocation within crowded control spaces. Application: Suitable for tight enclosures and modular panel layouts where space is at a premium. Feature: 60 Hz frequency rating. Business Impact: Ensures compatibility with standard power systems and metering signals, reducing integration risk. Application: General-purpose metering in commercial and industrial environments. Feature: Includes one 6 ft cable. Business Impact: Streamlines initial wiring and reduces installation costs by minimizing accessory sourcing. Application: Quick deployment in new builds or retrofit projects. Feature: Warranty of 1 year and standard Eaton support. Business Impact: Lowers ownership cost through predictable service and reliable parts availability. Application: Maintenance planning and long-term reliability across the Power Xpert ecosystem. Feature: Compatibility with Power Xpert metering family. Business Impact: Enables seamless data correlation and centralized monitoring, simplifying vendor management. Application: Integrated power management deployments in large facilities and automation plants.
Get a Quick Quote for a Eaton PXM3K-DISP-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM3K-DISP-3?
Enquire Now
FAQs
The PXM3K-DISP-3 is designed for panel mounting with din-rail transducers. Begin by confirming mounting clearance, connect the included 6 ft cable to the transducer signal and power lines per Eaton installation guidelines, then secure the display in a dedicated panel cutout. Ensure the display orientation matches the operator view for best readability and minimize cable runs to reduce electrical noise.
Key specs include a 3.5 in depth, 2.25 in width, and 1 in height with a weight of 0.25 lb. It operates at 60 Hz and is a dedicated Display type in the Power Xpert family. Catalog number PXM3K-DISP-3, UPC 720591000134, and includes a 6 ft cable, with a 1-year warranty and Compliances requiring manufacturer confirmation.
Yes, as a panel-mount remote display for din-rail mounted transducers, it supports standard metering readouts in typical industrial and commercial power systems. While the device is designed for general metering visibility, always verify regional compliance requirements and ensure compatibility with your specific transducer signals before deployment.
Compliances field indicates that certification details should be obtained from the manufacturer. For regulated deployments, check regional requirements (for example, CE/UL equivalents) via Eaton’s datasheets or support. A 1-year warranty is provided, which supports ongoing maintenance and reliability in field service.
The display improves visibility, shortening troubleshooting cycles and speeding commissioning, which reduces downtime. Its compact form factor simplifies installation in crowded panels, and the included cable plus Eaton support help lower installation labor costs. Over the life of a facility, these factors contribute to lower maintenance costs and higher equipment uptime.
