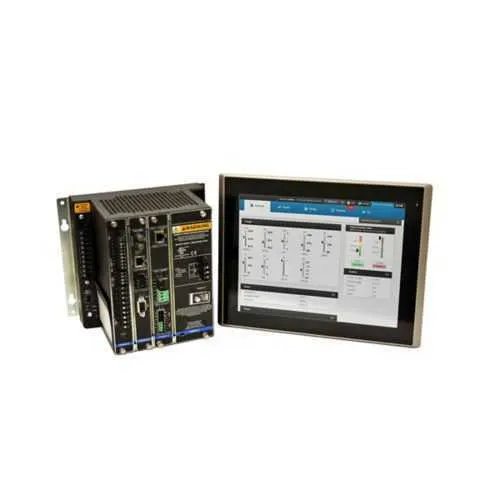

Eaton PXM4051A1BA Power Xpert Meter 4000 - CE/UL Listed

Part Number: PXM4051A1BA
PXM4051A1BA
Manufacturer
Eaton
Part number
PXM4051A1BA
Category

Quick Summary

Power Xpert meter 4000 by Eaton provides advanced power quality monitoring for industrial and commercial facilities. Operators often contend with hidden harmonics, voltage fluctuations, and energy waste that disrupt uptime and inflate costs. The device is UL Listed, CE marked, and designed to IEC 60687 standards, ensuring safe installation in regulated environments. This enclosure-based meter includes 2 GB memory and multiple communications options, delivering reliable energy data for energy management, demand metering, and predictive maintenance. With compatible Modbus TCP, BACnet/IP, and RS-485 interfaces, teams can start realizing ROI through real-time visibility and faster issue resolution. Its 100-240 V AC or 110-250 V DC power supply and 2 GB memory support robust data logging for long-term compliance reporting.

Product Information

Extended Description

PXM4051A1BA Eaton: Eaton Enclosed PXMP meter, Standard power quality, 2 GB, Voltage input; (V1, V2, V3, V4), 100-240 Vac or 110-250 Vdc, Communications module with RS-485, Communications expansion card with 10/100 Base-T, 100F, RS-485, RS-232 ports
Product Name
Eaton Power Xpert meter 4000
Catalog Number
PXM4051A1BA
UPC
786685424781
Product Length/Depth
9.56 in
Product Height
8.32 in
Product Width
6.72 in
Product Weight
7.1 lb
Warranty
1 year
Compliances
CE Marked CFR 47 FCC Part 15
Certifications
IEC 60687 ANSI/IEEE Std C12.20 UL Listed file 61010-1 EN 61010-1 IEC 61326 EN 60687
Type
Standard power quality
Memory
2 GB
Power supply voltage
100-240 V, 110-250 Vdc
%Thd - current and voltage
To 127th
Individual harmonics magnitude
To 85th
Waveform capture sampling rate
4096 Oversampling/cycle
ANSI % revenue accuracy
C12.20 (0.2)
Current sensor input
5A
Instrumentation
Current & Voltage - % Phase Unbalance - EVENT SETTING ONLY Varh Frequency Displacement Power Factor Va Time Of Use Energy Demand Metering Current & Voltage - 3 Phase Min, Max Watts Current & Voltage - 3 Phase Average Per Phase Power Factor View current & voltage phasors on display Voltage Neutral-Ground Current Demand Vars Vah Va demand 4 Quadrant Energy Apparent Power Factor Neutral Current Wh --Net Ground Current Current & Voltage - Per Phase Wh --Positive & Negative Watt Demand
Power quality analysis
K-Factor Crest Factor View Harmonic Spectrum At Device PQ Index Graph -STD Number Of 9'S Availability
Waveform analysis
Captured Waveforms Displayed on Meter/GUI Comtrade - Standard IEEE File Format Waveform Captured On Threshold / Input Excess Dv/Dt Or Interruption Capture Trigger Waveform recording duration - 60 cycles Voltage Disturbance Wave Capture Trigger
Logging
Audible Alarm Time / date stamp LED alarm indicator Event Log Email on alarm Data Logging Min/Max Log
Communications
Modbus TCP BACnet/IP File Transfer Protocol (FTP) built-in 1 x Local Ethernet Port for configuration Internet/HTTP Server built-in 1xRS-485
Modification 1
Standard communications module with RS-485
Modification 2
Communications expansion card with 10/100 Base-T, 100F, RS-485, RS-232 ports
Modification 3
None
Power Xpert Meters 4000/6000/8000 Power Xpert Meters 4000/6000/8000 Power Xpert Meters 4000/6000/8000 Power Xpert Meters 4000/6000/8000 Eaton's Power Xpert: the heart of Ave Maria University's cost-saving power monitoring system Metering devices Back to back meter to display projection mount adapter kit assembly instructions for PXM 6 display (PX-PMBD) Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Modbus register map for Power Xpert meter 4000/6000/8000 Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Upgrading your Power Xpert Meter to HTML5, PXM 4/6/8K Series Edition Next generation power quality meters white paper
Feature → Business Impact → Application. The Power Xpert meter 4000 ships with 2 GB memory for expanded data logging, enabling longer trend analysis and robust compliance reporting; this translates to faster audits and actionable insights for energy management and demand optimization in manufacturing or facilities. It supports Modbus TCP, BACnet/IP, and RS-485, simplifying integration with existing SCADA and building management systems, reducing commissioning time and enabling centralized monitoring across multiple lines. The enclosure-based design offers installation flexibility across electrical rooms and switchgear configurations, supporting safer, more compact deployments in limited spaces. With 100-240 VAC or 110-250 VDC power, it adapts to diverse plant environments, improving uptime and reducing wiring complexity during retrofits. The meter delivers precise harmonic analysis up to the 85th order and THD up to the 127th, improving fault diagnosis and enabling targeted corrective actions.

Get a Quick Quote for a Eaton PXM4051A1BA

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton PXM4051A1BA? Enquire Now

FAQs

Yes. The PXM4051A1BA includes Modbus TCP, BACnet/IP, and RS-485, allowing seamless integration with common SCADA and building management systems. Its flexible power options (100-240 VAC or 110-250 VDC) simplify retrofits in mixed electrical environments, and the 2 GB memory supports extensive data logging for historical analysis during system commissioning.
Key specs include ANSI C12.20 revenue accuracy of 0.2%, THD measurements up to 127th order, individual harmonics up to the 85th, and a waveform capture rate of 4096 oversampling per cycle. These capabilities enable precise fault diagnosis, detailed harmonic analysis, and reliable energy reporting for compliance and optimization.
Absolutely. Rated as a standard power quality meter with 5 A current sensor input and 100-240 VAC or 110-250 VDC power, it supports 3-phase monitoring, per-phase and total energy, and comprehensive event logging. It integrates with existing control systems via Modbus TCP, BACnet/IP, and RS-485 to support demand metering and energy optimization strategies.
The PXM4051A1BA is UL Listed and CE marked, with compliance to CFR 47 FCC Part 15, IEC 60687, ANSI/IEEE C12.20, EN 61010-1, IEC 61326, and EN 60687. These certifications provide installation confidence in regulated facilities and support for safety, interoperability, and regulatory requirements in multiple regions.
ROI is driven by improved energy visibility, reduced downtime, and optimized energy usage through real-time data and event logging. The meter includes email on alarm, Min/Max logs, and a 1-year warranty. Coupled with compatibility across SCADA and energy management tools, it enables faster fault resolution and ongoing compliance reporting with minimal maintenance.
