Eaton PXMP-DISP-6-TM-XV Power Xpert Display - 0.2%

Part Number: PXMP-DISP-6-TM-XV
PXMP-DISP-6-TM-XV
Manufacturer
Eaton
Part number
PXMP-DISP-6-TM-XV
Category

Quick Summary

Power Xpert multi point meter display is a color touchscreen interface for PXMP tenant metering. Operators struggle with complex wiring and limited real-time data visibility, which this display simplifies for faster monitoring and accurate energy accounting. The unit carries UL Listed 61010-1, IEC 687 with 0.2% accuracy, and ANSI/IEEE standards such as C12.20 and C37.90.1, ensuring safety and measurement reliability in demanding environments. By integrating with Power Xpert multi-point metering and tenant metering applications, it delivers business value through faster decisions, improved billing accuracy, and scalable energy management across sites.

Product Information

Extended Description

PXMP-DISP-6-TM-XV Eaton: Eaton Power Xpert multi point meter, Color touchscreen display for PXMP, Tenant Metering
Product Name

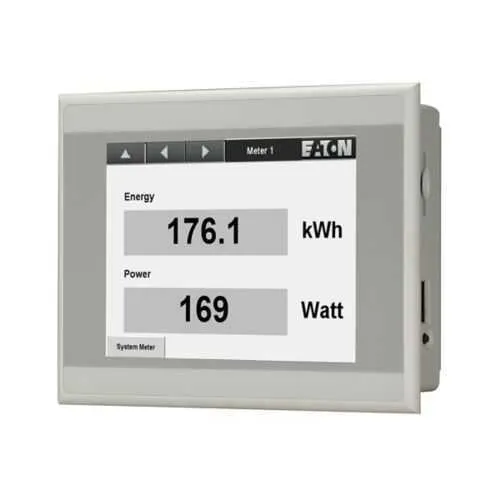

Eaton Power Xpert multi point meter display
Catalog Number
PXMP-DISP-6-TM-XV
UPC
786689397333
Product Length/Depth
1.54 in
Product Height
5.24 in
Product Width
6.81 in
Product Weight
1.32 lb
Certifications
ANSI/IEEE Std C12.20 (0.2% accuracy) UL Listed 61010-1 File E185559 IEC 687 (0.2% accuracy) UL/cUL (Measuring Equipment 20NL) ANSI/IEEE Std C37.90.1 UL 508A ANSI/IEEE Std C62.41
Special features
Display
Type
Touch Display
PXMP display quickstart guide Power Xpert Branch Circuit Monitor 6 tenant metering touchscreen display features Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Connecting to a Power Xpert Multi Point Meter, Step 2: Connections and Cabling Eaton Specification Sheet - PXMP-DISP-6-TM-XV Wireless multi-point energy submetering
Feature: Color touchscreen display provides immediate, at-a-glance visualization of multiple tenant loads across a Power Xpert multi-point meter system. Business Impact: Improves fault isolation, energy accounting, and billing accuracy by presenting real-time metrics in a clear, intuitive interface for operators and engineers. Application: Ideal for tenant metering in commercial buildings and industrial facilities with multiple tenants, where quick access to energy data drives faster decision-making.Feature: Touch Display enables direct navigation and configuration, reducing reliance on external controllers and complicated setup. Business Impact: Cuts commissioning time, lowers training costs, and minimizes human error during panel installations. Application: Works seamlessly with PXMP hardware in new builds or retrofits, delivering consistent user experiences across sites.Feature: Seamless PXMP compatibility for multi-point metering across tenant circuits. Business Impact: Centralizes data collection, supports accurate tenant billing, and simplifies energy reporting for facility managers. Application: Scales from a single panel to multi-tenant energy management programs in commercial, industrial, and data-center environments.Feature: Robust certifications and 0.2% accuracy per ANSI/IEEE C12.20, IEC 687, and related standards. Business Impact: Ensures regulatory compliance, audit readiness, and measurement confidence that reduces risk and rework. Application: Suitable for safety-critical metering in utility-grade installations and machinery panels.Feature: Compact dimensions (1.54 in depth, 5.24 in height, 6.81 in width) and a lightweight 1.32 lb build. Business Impact: Facilitates retrofit in space-constrained panels, simplifies wiring, and reduces enclosure footprint. Application: Panel-mounted displays in distribution boards, switchgear, and compact control cabinets.Feature: Comprehensive documentation and multimedia resources. Business Impact: Shortens commissioning, improves maintenance planning, and reduces service costs. Application: Installation quickstart guides and training videos support procurement and service teams.
