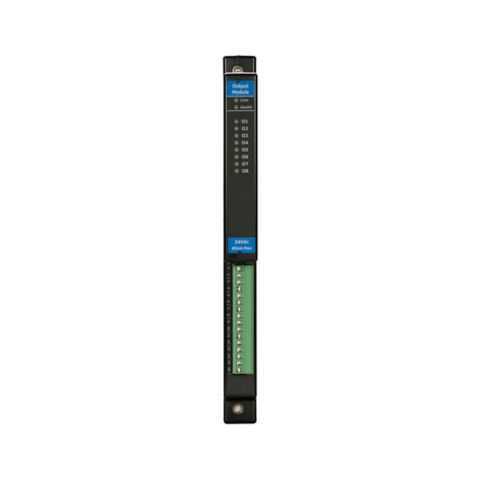

Eaton PXMP-DOM Power Xpert meter output module - CE/UL

Part Number: PXMP-DOM
PXMP-DOM
Manufacturer
Eaton
Part number
PXMP-DOM
Category

Quick Summary

Eaton PXMP-DOM is a Power Xpert multi-point meter output module for distributed monitoring in industrial control panels. Engineers often struggle with wiring complexity and signal isolation when expanding meter points across panels. The PXMP-DOM addresses these challenges with a robust 24 Vdc supply, digital input/output, and 2 kV group isolation, all within a compact form factor. Certified for CE marking and UL listed to 61010-1, plus CSA recognition, it provides regulatory confidence for global deployments. Used with the PXMP-MB and PXMP-MB-AB, it enables scalable, safe submetering with reliable data logging. This module also aligns with modern energy-management strategies, delivering fast integration without sacrificing safety or accuracy.

Product Information

Extended Description

PXMP-DOM Eaton: Eaton Power Xpert multi point meter output module, Digital Input Module, External power source, 0.080A max, 24 +/- 20% Vdc, Digital output, 2 kV group isolation, 10 ohms max, used with PXMP-MB, PXMP-MB-AB, PXMP-DOM
Product Name
Eaton Power Xpert multi point meter output module
Catalog Number
PXMP-DOM
UPC
786685757957
Product Length/Depth
11 in
Product Height
1 in
Product Width
2.9 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
CE Marked
Certifications
UL Listed 61010-1 File E185559 CSA Std. C22.2 No. 1010.1.92
Catalog Notes
120V isolation circuit to circuit, isolation dependent on external source
Used with
PXMP-MB, PXMP-MB-AB, PXMP-DOM
Type
Digital Input Module
Voltage rating
24 +/- 20% Vdc
Memory
None
%Thd - current and voltage
None
Individual harmonics magnitude
None
Waveform capture sampling rate
None
Impulse transient capture
None
ANSI % revenue accuracy
C12.20 (0.5)
Output
Digital
Logging
Data Logging
I/O capability
Digital Input/Output
Model
External power source
Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton's Power Xpert Multi Point Meter Eaton Specification Sheet - PXMP-DOM Wireless multi-point energy submetering
Feature → Business Impact → Application: External power source and 24 Vdc supply simplify installation and power management across distributed meters, reducing wiring complexity and enabling faster panel deployments in manufacturing environments. The digital input/output capability paired with a 0.080 A max current delivers precise status signaling for motor drives and safety interlocks, improving fault detection and reducing downtime in process lines across plants. Feature → 2 kV group isolation improves safety by isolating control circuits from metering signals, supporting compliant submetering in electrical rooms and rack eliminations in high-density panels. Feature → Data logging enables traceability of digital events without adding internal memory, streamlining plant-wide energy analytics through centralized SCADA or MES software. Compatibility with PXMP-MB, PXMP-MB-AB, and PXMP-DOM accelerates installation and supports scalable metering architectures for growing facilities, while CE and UL certifications mitigate compliance risks.

Get a Quick Quote for a Eaton PXMP-DOM

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton PXMP-DOM? Enquire Now

FAQs

PXMP-DOM is designed for use with PXMP-MB, PXMP-MB-AB, and PXMP-DOM to enable multi-point metering. It requires an external power source providing 24 +/- 20% Vdc and supports a maximum load of 0.080 A per channel. Installation benefits include circuit-to-circuit isolation dependent on the external source and a compact form factor that simplifies panel wiring and reduces installation time.
Key specifications include a 24 +/- 20% Vdc voltage rating, a 0.080 A maximum current, 2 kV group isolation, and digital input/output capabilities. The device is designed for external power sourcing, provides data logging, and carries CE marking and UL 61010-1 CSA certification, ensuring electrical safety and regulatory compliance in diverse environments.
Yes. The PXMP-DOM serves as a digital input module within the Power Xpert family, supporting multi-point metering and submetering in manufacturing and energy-management deployments. It integrates with PXMP-MB and PXMP-MB-AB to expand monitoring points, provides reliable digital signaling, and enables data logging for improved process visibility and optimization.
PXMP-DOM carries CE marking and UL Listed 61010-1 (File E185559), along with CSA certification (CSA Std. C22.2 No. 1010.1.92). These certifications underpin regulatory compliance for electrical safety in global installations and help validate product suitability for industrial control panels and metering systems.
The PXMP-DOM supports faster deployment and scalable metering with PXMP-MB/M_B-AB combinations, reducing wiring hours and error rates. With data logging and robust isolation, you gain improved traceability and compliance reporting. A 1-year warranty adds assurance, while compatibility across Eaton’s Power Xpert family helps streamline maintenance and future expansions.
