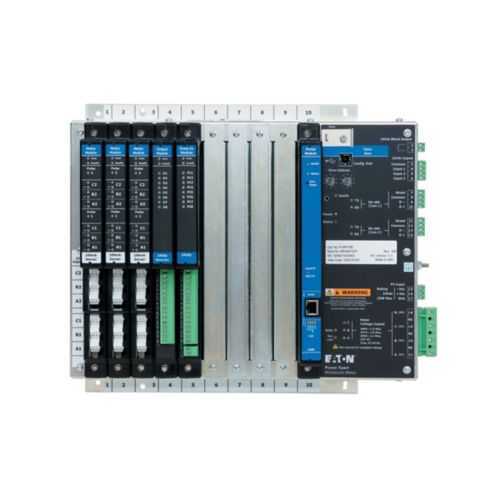

Eaton PXMP-MB-2B-A Enclosed Meter - 0.2% ANSI/IEEE
Part Number: PXMP-MB-2B-A
Quick Summary
Eaton enclosed meter provides precise energy measurement for electrical panels and machine controls. In many facilities, installation time and space constraints complicate retrofitting metering and increase project risk. This model carries CE Marked compliance and ANSI/IEEE Std C12.20 (0.2% accuracy) plus IEC 687 (0.2% accuracy) certifications to ensure accuracy and safety. With a compact NEMA 12 enclosure, no display, a 3-phase/4-wire main fuse disconnect, and a 120/240 Vac power supply, it integrates smoothly with existing power management systems. For procurement teams and engineers, this translates to reliable energy data for billing, monitoring, and energy-management initiatives while reducing total cost of ownership.
Product Information
Extended Description
PXMP-MB-2B-A Eaton: Eaton enclosed meter, PXMP(MB,No Modules),NEMA12(480V),No Display,3Phase/4Wire Main Fuse Disconnect,Vdc Power Supply
Product Name
Eaton enclosed meter
Catalog Number
PXMP-MB-2B-A
UPC
786685763262
Product Length/Depth
12 in
Product Height
30 in
Product Width
23.63 in
Product Weight
100 lb
Compliances
CE Marked
Certifications
ANSI/IEEE Std C12.20 (0.2% accuracy) ANSI/IEEE Std C62.41 IEC 687 (0.2% accuracy)
Catalog Notes
PXMP-MB-AB only supports PXMP-MM10MA-AB,
Power supply
120/240 Vac
Wattage
60W
Phase
Single-phase, three-phase
Display
None
Degree of protection
NEMA 12
Input
Three-wire
Meter type
PXMP
Eaton's enclosed meter family
Eaton's enclosed meter family
Eaton's Enclosed Meters
Eaton Specification Sheet - PXMP-MB-2B-A
Feature: Enclosed PXMP meter in a NEMA 12 enclosure → Business Impact: Provides robust protection against dust and dirt in industrial environments, reducing contamination risk and downtime. Application: Suitable for electrical rooms, control panels, and harsh shop floors. Feature: 120/240 Vac power supply with 60W draw → Business Impact: Simplifies wiring, lowers energy waste, and enables compatibility with standard plant power feeds. Application: Retrofit projects and new installations in manufacturing facilities. Feature: No display, 3-phase/4-wire main fuse disconnect → Business Impact: Compact front, easier enclosure planning, and safer access to main protection; reduces maintenance overhead. Application: Main service disconnects in motor control centers. Feature: High-precision metering (0.2% accuracy) with ANSI/IEEE and IEC certifications → Business Impact: Improves billing accuracy and energy analytics, supporting compliance and cost allocation. Application: Industrial facilities requiring precise demand and energy reporting. Feature: Catalog compatibility with PXMP-MM10MA-AB and related modules → Business Impact: Flexible expansion path and modular upgrades; minimizes downtime during configuration changes. Application: Systems planning future metering upgrades in evolving power management installations.
Get a Quick Quote for a Eaton PXMP-MB-2B-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXMP-MB-2B-A?
Enquire Now
FAQs
The PXMP-MB-2B-A is designed to work with PXMP-MM10MA-AB modules, enabling modular expansion within Eaton's PXMP family. This compatibility allows you to add metering or expand your monitoring capabilities without rewiring the control panel, reducing downtime and enabling scalable energy management across multiple feeders.
The PXMP-MB-2B-A carries CE Marking and ANSI/IEEE Std C12.20 accuracy at 0.2%, with IEC 687 also specified at 0.2% accuracy. These standards support reliable billing, compliance reporting, and consistent energy measurement across industrial facilities.
Yes. The product is specified for NEMA 12 protection and supports three-phase/4-wire configurations, including 480V applications as noted in its general description. The enclosure protects the meter from dust and grime in demanding environments while maintaining accurate metering across distribution panels.
Prioritize placing the PXMP-MB-2B-A in a vented, accessible panel area to simplify wiring and future upgrades. Use the 120/240 Vac supply to minimize wiring complexity, and leverage its no-display design to save front-panel space. The result is faster commissioning, reduced maintenance, and improved energy visibility for your energy-management program.
By delivering high-accuracy energy data (0.2% accuracy) and CE marking, the PXMP-MB-2B-A supports regulatory compliance and precise energy accounting. Its compact, protective enclosure and compatibility with modular PXMP components enable scalable monitoring, enabling better demand forecasting, cost allocation, and efficiency initiatives across production lines.
