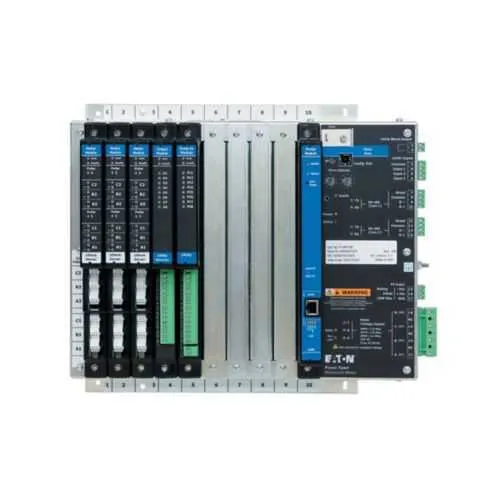

Eaton PXMP-MB-2B-D Enclosed Meter - NEMA12 CE Marked
Part Number: PXMP-MB-2B-D
Quick Summary
Eaton enclosed meter measures energy in three-phase electrical systems for industrial power distribution. Machinery and plant-wide panels demand rugged enclosures and compatible metering modules to avoid costly downtime. It carries ANSI/IEEE Std C12.20 (0.2% accuracy), ANSI/IEEE Std C62.41 surge considerations, IEC 687 (0.2% accuracy), and CE Marking for international compliance. With a 6-inch touchscreen, a 480V power supply, and a NEMA12 enclosure, the PXMP-MB-2B-D streamlines installation and ongoing monitoring in demanding environments. This integrated solution delivers reliable metering, faster commissioning, and clear energy data for operators and engineers to optimize efficiency. It supports module expansion and straightforward serviceability to extend asset life.
Product Information
Extended Description
PXMP-MB-2B-D Eaton: Eaton enclosed meter, PXMP(MB,No Modules),NEMA12(480V),PXMP-DISP(6-XV),3Phase/4Wire Main Fuse Disconnect,Vdc Power Supply
Product Name
Eaton enclosed meter
Catalog Number
PXMP-MB-2B-D
UPC
786685763286
Product Length/Depth
33 in
Product Height
13 in
Product Width
28.5 in
Product Weight
90 lb
Compliances
CE Marked
Certifications
ANSI/IEEE Std C12.20 (0.2% accuracy) ANSI/IEEE Std C62.41 IEC 687 (0.2% accuracy)
Catalog Notes
PXMP-MM100MA-AB and PXMP-MM333MV-AB modules.
Power supply
480V
Wattage
60W
Phase
Single-phase, three-phase
Display
6" Touch Screen
Degree of protection
NEMA 12
Input
Three-wire
Meter type
PXMP
Eaton's enclosed meter family
Eaton's enclosed meter family
Eaton's Enclosed Meters
Eaton Specification Sheet - PXMP-MB-2B-D
Feature: PXMP-MB-2B-D integrates an enclosed meter with a three-phase main fuse disconnect, a built-in 480V power supply, and a generous enclosure footprint suited for indoor panels. Business impact: This all-in-one design reduces component count, minimizes wiring errors, and shortens installation time, delivering faster time-to-first-energy-readings and a tidier control cabinet. Application: Ideal for switchgear, motor control centers, and process lines where dependable energy monitoring must coexist with protective enclosure features. Feature: Display and usability: The 6-inch touchscreen presents real-time energy data in an intuitive layout, enabling operators to assess load, power factor, and demand at a glance. Business impact: Fewer trips to SCADA notebooks and reduced commissioning risk. Application: Suitable for control rooms and on-panel diagnostics in manufacturing environments. Feature: Certifications and accuracy: ANSI/IEEE C12.20 with 0.2% accuracy, ANSI/IEEE C62.41 surge considerations, IEC 687, and CE Marking. Business impact: Regulatory compliance and measurement integrity across facilities save calibration time and support utility verification efforts. Application: Data centers, facilities, and OEM installations requiring proven metering performance. Feature: Module compatibility and scalability: Catalog notes PXMP-MM100MA-AB and PXMP-MM333MV-AB enable modular expansion without replacing the enclosure. Business impact: Invest once, scale gradually as energy monitoring needs grow, preserving capital and reducing outages during upgrades. Application: Plants expanding from basic metering to advanced analytics and power quality monitoring. Feature: Rugged enclosure and footprint: NEMA 12-rated protection, dimensions of 33 in depth, 28.5 in width, 13 in height, and a 90 lb weight. Business impact: Robust protection against dust and splash while guiding installation planning and crew ergonomics. Application: Indoor industrial spaces, machine rooms, and service bays. Feature: Power and input: 480V power supply with 60W wattage, designed for three-wire input and both single- and three-phase configurations. Business impact: Broad compatibility reduces rework during retrofits and simplifies procurement. Application: Facilities with mixed voltage panels and existing PXMP modules. Feature: Maintenance and reliability: Durable build with CE and ANSI certifications and straightforward serviceability. Business impact: Longer asset life, lower maintenance costs, and predictable performance. Application: OEMs, integrators, and plants seeking dependable energy metering with low total cost of ownership.
Get a Quick Quote for a Eaton PXMP-MB-2B-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXMP-MB-2B-D?
Enquire Now
FAQs
Yes. PXMP-MB-2B-D is designed to work with PXMP-MM100MA-AB and PXMP-MM333MV-AB modules, enabling scalable metering without replacing the enclosure. This modular approach minimizes reinvestment and downtime while supporting enhanced data capture, from basic energy readings to power quality monitoring, in existing switchgear and motor control centers.
The meter carries ANSI/IEEE Std C12.20 with 0.2% accuracy, ANSI/IEEE Std C62.41 for surge considerations, IEC 687 with 0.2% accuracy, and CE Marking. These certifications provide accuracy, reliability, and regulatory compliance across global facilities, reducing qualification risk for data centers, manufacturing floors, and utility-adjacent equipment.
Key specs include a 480V power supply, 60W wattage, 6-inch touch screen display, three-wire input, and NEMA12 protection. It supports single-phase and three-phase configurations, with a PXMP meter type, and measures within a compact footprint suitable for indoor panels. Weight and dimensions guide installation planning and site readiness.
Best suited for switchgear, motor control centers, and process lines requiring reliable energy monitoring within a protective enclosure. It is ideal for industrial facilities seeking accurate energy data, quick commissioning, and an integrated meter-and-protection solution to support energy management, power quality analyses, and regulatory reporting.
By integrating metering with a protective enclosure, the unit reduces wiring complexity, accelerates installation, and lowers maintenance costs over the asset life. The modular options allow staged upgrades, protecting investment and delivering a predictable return through improved energy visibility and reduced downtime.
