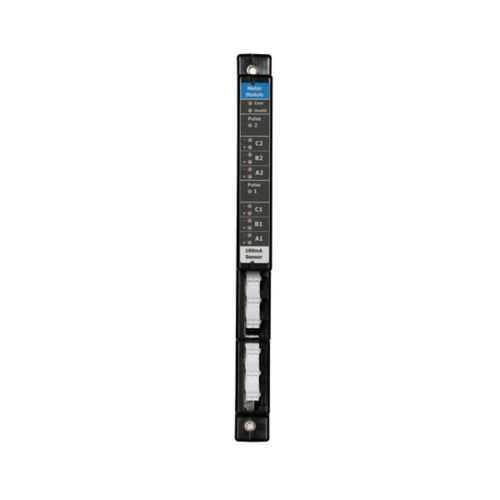

Eaton PXMP-MM10MA Power Xpert Meter Module - UL CE

Multi-point metering with a compact footprint lies at the core of the PXMP-MM10MA. The module adds an external power source option and 10 mA CT secondary inputs to a PXMP-MB backplane, enabling monitoring of multiple feeders from a single panel. This consolidation reduces wiring and speeds commissioning, while maintaining data fidelity for energy efficiency and demand management. The 67 ohm input characteristic and 20% over-range guidance ensure reliability across diverse sensor configurations and install conditions. CE marking and UL 61010-1 certification, plus ANSI/IEEE C12.20 with 0.5% accuracy, deliver utility-grade measurements for panel-level metering. This certification suite reduces compliance risk while ensuring reliable operation in industrial environments under varying loads, harmonics, and temperature conditions. Programmable Pulse Output for Wh, Varh, and Vah, plus Analog and Digital I/O, enable straightforward integration with PLCs and building management systems. Data Logging captures energy trends over time, supporting demand calculations, fault analysis, and verification of energy-savings initiatives. This combination provides actionable visibility, helping facilities optimize utilization, justify projects, and meet energy-management KPIs. At 11 in long by 2.9 in wide by 1 in tall and weighing 0.3 lb, the PXMP-MM10MA fits compactly into standard enclosures alongside PXMP-MB. External power source operation supports isolation in noisy environments, and the 20% over-range guidance aids sensor selection for primary isolation. The result is a scalable, modular metering solution for manufacturing, data centers, and commercial facilities.
