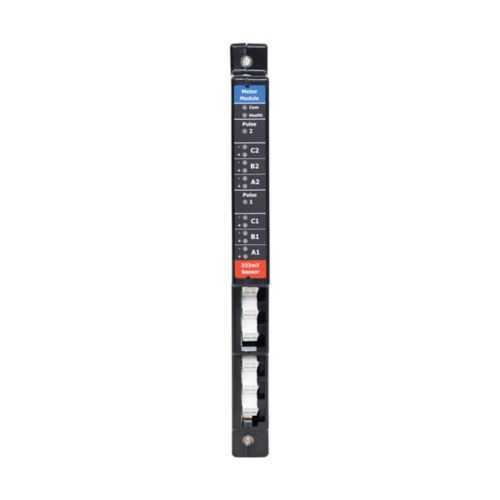

Eaton PXMP-MM333MV Power Xpert Meter Module - UL 61010-1
Part Number: PXMP-MM333MV
Quick Summary
Eaton PXMP-MM333MV is a Power Xpert multi-point meter module used for submetering in panel boards. Engineers often struggle to obtain accurate, harmonized energy data across multiple points without disrupting operations. This module carries UL Listed 61010-1, CE compliance, and CSA certification, ensuring safe integration into global installations. Designed to work with PXMP-MB, it supports data logging and per‑phase measurements while delivering Watt, VA, and Varh demand data, enabling clear energy visibility and informed decision-making for utility cost management and reliability improvements.
Product Information
Extended Description
PXMP-MM333MV Eaton: Eaton Power Xpert Multi-Point Meter, Module, External power source, 0.333 Vac RMS, CT secondary, 50K ohms, used with PXMP-MB, PXMP-MM333MV
Product Name
Eaton Power Xpert multi point Meter module
Catalog Number
PXMP-MM333MV
UPC
786685757902
Product Length/Depth
11 in
Product Height
1 in
Product Width
2.9 in
Product Weight
0.3 lb
Warranty
1 year
Compliances
CE Marked
Certifications
UL Listed 61010-1 File E185559 CSA Std. C22.2 No. 1010.1.92
Catalog Notes
20% over-range, see sensor for primary isolation
Used with
PXMP-MB, PXMP-MM333MV
Type
Module
Voltage rating
0.33 V
Memory
None
%Thd - current and voltage
None
Individual harmonics magnitude
None
Waveform capture sampling rate
None
Impulse transient capture
None
ANSI % revenue accuracy
C12.20 (0.5)
Current sensor input
333 mV
Instrumentation
Per Phase Power Factor Va demand Watt Demand Demand Metering Current & Voltage - Per Phase Watts
Logging
Data Logging
I/O capability
Digital Input/Output Prog. Pulse Output --Wh, Varh, Vah Analog Input/Output
Model
External power source
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Programming a Power Xpert Multi Point Meter, Step 3: Getting Started with the Configuration Tool
Eaton Specification Sheet - PXMP-MM333MV
Wireless multi-point energy submetering
Feature External power source design → Business Impact Safer sensing and reduced wiring complexity in LV panels → Application Retrofit or new installations in switchgear to monitor multi-point loads. Feature 0.333 V current sensor input → Business Impact Accurate CT secondary measurements with minimal burden on primary circuits → Application Submetering across multiple feeders in distribution boards. Feature Per‑phase power factor, Va demand, Watt demand, and data logging → Business Impact Granular energy insight and traceability for audits and optimization → Application Energy management and efficiency programs in manufacturing sites. Feature I/O capability including Digital I/O and programmable pulse output → Business Impact Flexible integration with building automation and energy systems → Application Smart controls and demand response in industrial facilities. Feature Compact 11 in × 2.9 in × 1 in form factor and PXMP-MB compatibility → Business Impact Easier retrofits and space-efficient installations in crowded panels → Application Retrofit projects in legacy switchgear with minimal footprint.
Get a Quick Quote for a Eaton PXMP-MM333MV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXMP-MM333MV?
Enquire Now
FAQs
When pairing PXMP-MM333MV with the PXMP-MB, ensure external power supply is wired per Eaton guidelines and that the module is mounted in a compatible panel with sufficient clearance for the 11 in length and 2.9 in width. Verify CT secondary connections and 50 kΩ impedance per the specification, and respect 20% over-range notes to prevent sensor isolation issues. The combination supports data logging and per‑phase metering.
The PXMP-MM333MV uses a 0.33 V voltage rating and a 333 mV current sensor input for CT secondary sensing. It is designed for external power sources and supports per‑phase power factor, Va and Watt demand metering, along with digital I/O and programmable pulse outputs. It outputs data suitable for energy management, submetering, and integration with PXMP-MB for comprehensive monitoring.
This module is UL Listed 61010-1 (File E185559), CE Marked, and CSA certified (CSA Std. C22.2 No. 1010.1.92). These certifications support compliance across North American and European installations, enabling safer operation in control panels and energy management applications while meeting regulatory and safety expectations for electrical metering devices.
PXMP-MM333MV is ideal for submetering in switchgear, distribution panels, and energy management systems where multi-point monitoring is required. It supports data logging, per‑phase measurements, Watt/VAR/VA demand, and integrates with PXMP-MB. This makes it suitable for manufacturing facilities, data centers, and commercial buildings seeking improved energy visibility and efficiency.
By delivering granular energy data and demand signals, the PXMP-MM333MV helps identify energy waste, optimize load distribution, and support demand management—leading to lower utility costs and improved equipment performance. With a 1‑year warranty and durable UL/CE certifications, maintenance is reduced through reliable long‑term operation and easier diagnostics via data logging.
