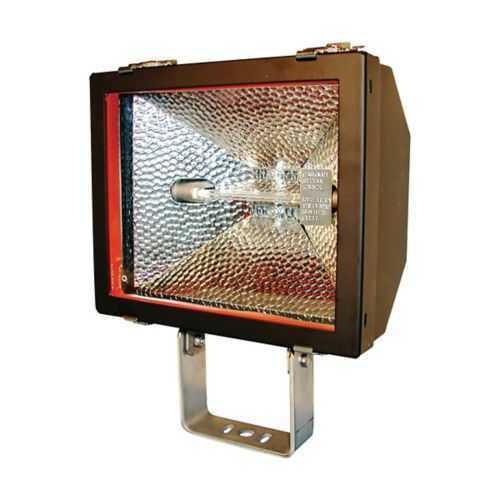

Eaton QA1603 Pauluhn Achiever Floodlight - IP66
Part Number: QA1603
Quick Summary
The Eaton QA1603 Pauluhn Achiever floodlight delivers rugged, high-output illumination for marine and industrial facilities. In harsh environments with dust, moisture, and frequent cycling, reliability and maintenance costs are major concerns. It carries IP66 ingress protection and NEC/CEC compliance, with ordinary/non-hazardous location classification, supporting safe operation in diverse sites. Designed for commercial lighting and heavy industry, this fixture combines robust copper-free aluminum construction with a tempered glass lens to reduce downtime and extend service life, delivering value across projects. Its 300W quartz-halogen lamp and 6x6 optical distribution optimize area coverage while meeting energy and safety standards, and the trunnion mount eases installation and service.
Product Information
Extended Description
QA1603 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight, Quartz halogen lamp, Tempered glass lens, Copper-free aluminum, Trunnion mount, 6x6 optical distribution, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight
Catalog Number
QA1603
UPC
662276414877
Product Length/Depth
9.75 in
Product Height
12.75 in
Product Width
5.88 in
Product Weight
5.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
Copper-free aluminum
Wattage
300W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Eaton Crouse-Hinds QA1603 3D drawing
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QA1603
Copper-free aluminum housing delivers excellent corrosion resistance, reducing repainting and component replacement in coastal and washdown zones; the business impact is lower lifecycle costs and higher uptime for offshore and inland plants. This translates to faster project turnovers and less maintenance disruption in industrial facilities, docks, and processing sites, enabling reliable outdoor area lighting with fewer service calls. The IP66 ingress protection and NEC/CEC compliance protect workers and equipment in ordinary/non-hazardous locations, ensuring safe operation in rain, dust, and spray zones; installation teams benefit from straightforward code-aligned validation and fewer field reworks. The 6x6 optical distribution provides uniform coverage, reducing the number of fixtures required and lowering energy use; this supports perimeter and general area lighting efficiencies for large outdoor spaces. Quartz-halogen lamps deliver immediate, high-brightness output with good color rendering, supporting critical visual tasks in hazardous-free zones and reducing restart delays after power fluctuations. The trunnion mounting allows flexible aiming and rapid alignment, cutting installation time and simplifying ongoing maintenance in tight or elevated mounting points. A 120 Vac, 300W power requirement aligns with standard electrical panels, simplifying wiring and spare-part planning, while tempered glass lens offers shatter resistance for safer outdoor operation. Overall, QA1603 combines rugged build, straightforward serviceability, and proven NEC/CEC compliance to deliver predictable ROI in demanding environments.
Get a Quick Quote for a Eaton QA1603
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QA1603?
Enquire Now
FAQs
QA1603 uses a standard trunnion mounting method, enabling straightforward replacement in many existing floodlight setups. Its copper-free aluminum housing and 6x6 optical distribution fit common outdoor mounting footprints, reducing the need for custom brackets. Verify panel voltage (120 Vac) and ensure a clean, dry connection to prevent moisture ingress; power wiring should follow NEC guidelines for non-hazardous locations.
The copper-free aluminum housing and tempered glass lens resist corrosion and impact, essential for coastal or splash zones. Regular inspection of the lens and mounting hardware, plus periodic electrical checks, keeps performance consistent. With IP66 protection, the unit tolerates dust and water jets, minimizing downtime; routine cleaning and seal checks are typically sufficient between service intervals.
Yes, QA1603 is designed to comply with NEC/CEC standards for ordinary/non-hazardous locations, which simplifies approvability in many industrial facilities. It carries IP66 ingress protection for durability in challenging environments and is built from copper-free aluminum to meet corrosion resistance expectations. Always confirm local code amendments and maintain proper labeling and installation documentation for compliance audits.
The 6x6 optical distribution delivers broad, uniform illumination across large outdoor zones, reducing dark spots and improving visual safety. This coverage can lower the number of fixtures required, cutting installation labor and material costs. In perimeter lighting for docks or plant yards, it also supports consistent luminance while balancing energy use and thermal performance.
When replacing the quartz-halogen lamp, ensure you select a 300W, 120 Vac variant compatible with the QA1603 model. Power down the unit, inspect the tempered glass for cracks, verify the trunnion mount is secure, and reseal as needed to maintain IP66 integrity. Regular maintenance should focus on lamp life, lens clarity, and fasteners to sustain performance and safety in outdoor environments.
