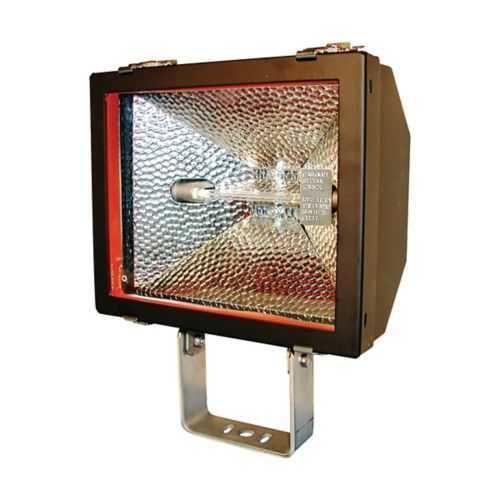

Eaton QA1610 Floodlight - Copper-Free Aluminum IP66
Part Number: QA1610
Quick Summary
QA1610 floodlight is a rugged, high-output luminaire designed for non-hazardous industrial locations. Operators contend with dust ingress, moisture, and downtime in outdoor and marine-adjacent facilities; this fixture addresses those challenges with a copper-free aluminum housing and a tempered glass lens. Key certifications include IP66 ingress protection, NEC/CEC compliance, and Ordinary/Non-Hazardous area classification, providing code-aligned protection across demanding environments. The design supports 120 Vac operation and 1000W quartz-halogen illumination, delivering reliable performance for long shifts. By combining durable construction with straightforward installation, the QA1610 helps maintain safety standards while reducing maintenance frequency and lifecycle costs. For project teams, this translates to faster commissioning and dependable night-time visibility in industrial settings.
Product Information
Extended Description
QA1610 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight, Quartz halogen lamp, Tempered glass lens, Copper-free aluminum, Trunnion mount, 6x6 optical distribution, 120 Vac, 1000W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight
Catalog Number
QA1610
UPC
662276414914
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
13.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
Copper-free aluminum
Wattage
1000W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QA1610
Feature: 1000W quartz halogen lamp delivers high lumen output with instant full brightness. Business impact: reduces hotspots and eliminates long warm-up times, improving site safety during shift changes. Application: outdoor loading docks and warehouse perimeters benefit from dependable, immediate illumination. Feature: Copper-free aluminum housing with tempered glass lens. Business impact: enhanced corrosion resistance and weather resilience lower maintenance costs and extend service life. Application: exposure to humidity and salt spray at docks, yards, and non-hazardous outdoor facilities is well supported. Feature: IP66 ingress protection with rugged construction. Business impact: protection against dust and powerful water jets minimizes downtime and protects electrical components. Application: reliable operation in wet, dusty environments reduces unplanned outages. Feature: 6x6 optical distribution. Business impact: broad, even coverage reduces the number of fixtures required for site-wide visibility. Application: large outdoor areas such as warehouses and perimeters can be illuminated efficiently. Feature: Trunnion mounting and 120 Vac operation. Business impact: flexible aiming, simplified installation, and compatibility with standard electrical systems. Application: retrofit projects and new builds alike benefit from fast commissioning and straightforward wiring. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Business impact: ensures code-compliant installations with reduced regulatory risk. Application: projects in non-hazardous locations can proceed with confidence, supporting safer operation and workforce comfort.
Get a Quick Quote for a Eaton QA1610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QA1610?
Enquire Now
FAQs
The QA1610 uses a robust trunnion mounting method, enabling flexible aiming for precise area coverage. For safe installation, mount on secure supports with appropriate hardware, shield wiring from moisture, and connect to a standard 120 VAC circuit through a weatherproof enclosure. Always follow NEC code requirements and confirm the fixture is sealed against dust and water ingress after installation.
IP66 indicates complete protection against dust ingress and protection against powerful water jets from any direction. This rating ensures reliable operation in harsh outdoor conditions, reduces routine cleaning needs, and minimizes the risk of electrical faults due to moisture or particulate contamination during service life.
Yes. The QA1610 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it a compliant choice for general industrial lighting, outdoor facilities, and marine-adjacent environments where hazardous classifications do not apply, while delivering high performance and consistent illumination.
Maintenance typically involves periodic cleaning of the tempered glass lens, inspection for corrosion, and timely replacement of the quartz halogen lamp when luminous flux declines. The copper-free aluminum housing helps resist corrosion, lowering repaint or enclosure maintenance, while the straightforward electrical connection supports quick lamp swaps and minimal downtime.
Maximize efficiency by using the 6x6 optical distribution to minimize the number of fixtures for wide-area coverage and plan for optimal mounting height and azimuth via the trunnion. Ensure proper wiring on 120 VAC circuits, employ weatherproof enclosures, and maintain IP66 sealing during and after installation to uphold safety and reliability in non-hazardous outdoor settings.
