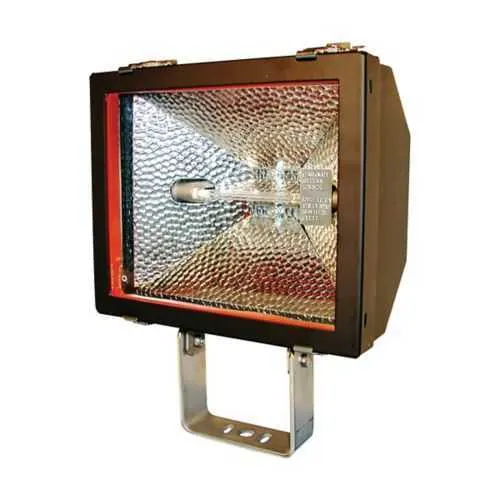

Eaton QA1610-220 QA floodlight - IP66
Part Number: QA1610-220
Quick Summary
QA1610-220 floodlight is a high-output lighting fixture designed for demanding industrial and maritime environments. Engineers often struggle with corrosion, installation complexity, and unreliable performance in harsh locations. Its IP66 ingress protection, NEC/CEC compliance, and Ordinary/Non-Hazardous area classification help ensure safe, code-compliant operation. The rugged copper-free aluminum housing and tempered glass lens reduce maintenance needs, while the 6x6 optical distribution and trunnion mounting support quick, accurate alignment for scalable project deployment. This combination delivers reliable, long-life illumination that minimizes downtime and accelerates commissioning in challenging sites.
Product Information
Extended Description
QA1610-220 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight, Quartz halogen lamp, Tempered glass lens, Copper-free aluminum, Trunnion mount, 6x6 optical distribution, 220 Vac, 1000W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight
Catalog Number
QA1610-220
UPC
662276414921
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
18.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
Copper-free aluminum
Wattage
1000W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
220 Vac
Lens material
Tempered glass
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QA1610-220
The IP66 rated enclosure paired with a tempered glass lens provides robust protection against dust ingress and water exposure, dramatically reducing unplanned outages and maintenance costs in outdoor and marine environments. This translates to higher uptime and safer night-time operations for facilities with demanding exposure to the elements. The 1000W quartz halogen lamp delivers high-intensity, broad-area coverage, enabling fewer fixtures to achieve the same illumination levels, which lowers capital and installation costs while speeding up project timelines. Copper-free aluminum construction offers superior corrosion resistance in coastal or industrial atmospheres, extending service life and reducing replacement cycles in harsh environments. The trunnion mounting option enables flexible orientation and quick aiming, cutting installation time and simplifying future reconfigurations as site layouts evolve. With a 6x6 optical distribution, the unit delivers even lighting across large areas, improving visibility for safety-critical personnel and perimeter security while reducing energy waste. Designed for 220 VAC systems, the QA1610-220 integrates smoothly with standard power infrastructure, improving reliability and reducing wiring complexity. Its overall dimensions and weight (14.25 in L, 14.75 in H, 7.38 in W, 18.4 lb) support straightforward handling and mounting in constrained spaces and on elevated structures, aligning with typical industrial installation practices.
Get a Quick Quote for a Eaton QA1610-220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QA1610-220?
Enquire Now
FAQs
QA1610-220 is designed for straightforward integration with standard industrial electrical enclosures and 220 VAC power systems. Its trunnion mounting enables flexible orientation on walls, ceilings, or poles, while the 14.25 in length and 18.4 lb weight simplify handling and mounting. Ensure enclosure access is adequate for wiring, and use appropriate rated connectors and seals to maintain IP66 integrity after installation.
The QA1610-220 uses copper-free aluminum housing and IP66 protection, delivering excellent corrosion resistance in salt-vegetated or damp environments. Tempered glass lens stands up to frequent washdowns, and the quartz halogen lamp provides dependable brightness under challenging outdoor conditions. Combined with NEC/CEC compliance, this fixture meets industry requirements for marine and coastal lighting projects.
QA1610-220 aligns with NEC/CEC standards and is certified for Ordinary/Non-Hazardous locations. Its IP66 rating confirms robust ingress protection against dust and water. This combination ensures safer operation, easier compliance audits, and suitability for non-hazardous industrial outdoor applications where reliable illumination is required.
Begin by selecting a secure mounting location with clear 220 VAC access. Attach the fixture using the trunnion mounting hardware, ensuring proper alignment for the 6x6 optical distribution. Wire with compliant connectors and seal entries to maintain IP66. For maintenance, inspect the tempered lens and lamp, replace the 1000W quartz halogen lamp as needed, and verify seals after weather exposure to preserve ingress protection.
The 1000W quartz halogen lamp delivers high luminous intensity, enabling fewer fixtures to cover large areas, which reduces both material and labor costs. The 6x6 distribution provides even coverage, improving safety and reducing glare. Copper-free aluminum and IP66 protection lower maintenance and replacement costs in harsh environments, supporting faster project commissioning and longer service life in demanding industrial or marine sites.
