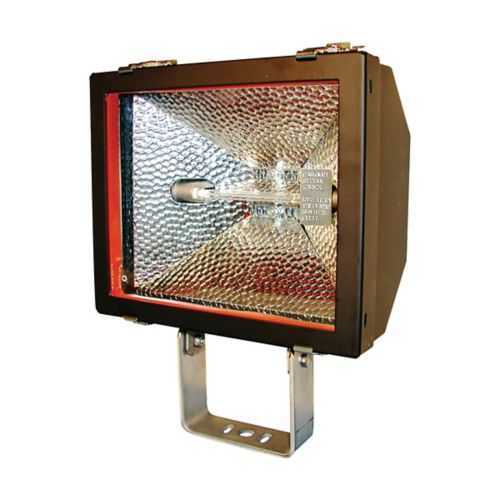

Eaton QA1615-240 Floodlight - IP66
Part Number: QA1615-240
Quick Summary
QA1615-240 floodlight from Eaton delivers high-intensity general area lighting for industrial facilities. Operators and maintenance teams struggle with corrosion, dust intrusion, and frequent fixture replacement in tough environments. It meets NEC/CEC standards, carries IP66 ingress protection, and is classified for Ordinary/Non-Hazardous Locations, helping ensure regulatory compliance. This rugged copper-free aluminum housing, combined with a 240 V electrical rating and a compact 14.75 in height, supports reliable, long-life illumination with minimal downtime in warehouses, production lines, and outdoor yards. By aligning with common industrial power architectures and proven optics, this fixture reduces installation risk and accelerates procurement cycles. Designed for long service life in challenging settings, it supports reduced maintenance costs over time.
Product Information
Extended Description
QA1615-240 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight, Quartz halogen lamp, Tempered glass lens, Copper-free aluminum, Trunnion mount, 6x6 optical distribution, 240 Vac, 1500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QA floodlight
Catalog Number
QA1615-240
UPC
662276414945
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
8.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
Copper-free aluminum
Wattage
1 x 25W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
240 Vac
Lens material
Tempered glass
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QA1615-240
Quartz halogen lamp delivers immediate full output and high color rendering, enabling faster task completion and safer operation in work cells and yard lighting; the design translates to reliable performance with minimal warm-up delay in busy manufacturing lines. The IP66 ingress protection guards against dust and powerful water jets, reducing failure rates in outdoor, wash-down, and damp locations—lowering maintenance interventions and unplanned downtime. Copper-free aluminum housing provides excellent corrosion resistance, extending fixture life in coastal plants and humid environments, which translates to lower lifecycle costs and improved asset uptime. Trunnion mounting offers flexible aiming and straightforward retrofit into existing layouts, minimizing installation time and structural work. The 6x6 optical distribution delivers even illumination across broad areas, reducing hotspots and improving safety margins while integrating smoothly with standard 240 V power feeds. This combination of rugged enclosure, standard power compatibility, and NEC/CEC compliance supports quick procurement, consistent code adherence, and reliable operations in non-hazardous industrial settings.
Get a Quick Quote for a Eaton QA1615-240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QA1615-240?
Enquire Now
FAQs
The QA1615-240 is designed for general area lighting in ordinary/non-hazardous industrial settings, including warehouses, production floors, and outdoor yards. It uses 240 VAC power and a 25W quartz halogen lamp with a 6x6 optical distribution to provide uniform coverage across large spaces.
It employs a quartz halogen lamp rated at 25W, operating at 240 VAC. The fixture features copper-free aluminum housing, tempered glass lens, and a 6x6 optical distribution for even light spread across the target area.
Yes. With an IP66 ingress protection rating, it is protected against dust and powerful water jets, making it suitable for outdoor installations and wash-down areas in non-hazardous locations.
The unit uses a trunnion mounting method, offering flexible orientation and straightforward installation on walls, ceilings, or supports, which helps with retrofits and layout adjustments.
It complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, ensuring code compliance for typical industrial facilities while providing reliable, durable performance.
