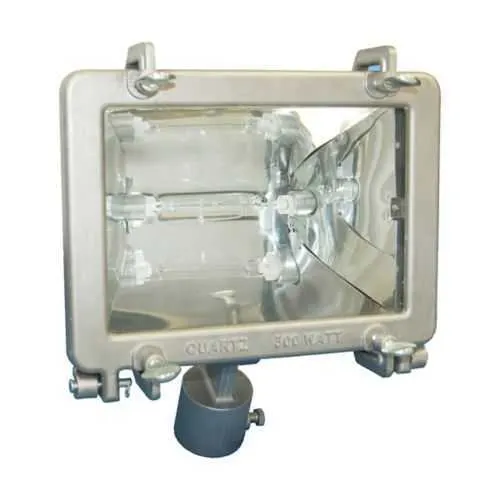

Eaton QAC511P Pauluhn Achiever QC floodlight - IP66
Part Number: QAC511P
Quick Summary
The Eaton QAC511P floodlight provides rugged illumination for industrial spaces such as warehouses and outdoor yards. Facing high downtime from dust, water ingress, and maintenance needs, engineers need a durable, easy-to-service fixture. Key certifications include NEC/CEC compliance, NEMA 4 enclosure, and IP66 ingress protection, ensuring reliable performance in ordinary/non-hazardous locations. With post-top mounting, 120 Vac operation, and a 500 W quartz halogen lamp, this luminaire supports straightforward installation and predictable maintenance for long-term facility reliability.
Product Information
Extended Description
QAC511P Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QC floodlight, Quartz halogen lamp, Tempered glass lens, Cast aluminum, Post-top mount, 6x6 optical distribution, C-clamp design, 120 Vac, 500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QC floodlight
Catalog Number
QAC511P
UPC
662276498808
Product Length/Depth
11.13 in
Product Height
13 in
Product Width
8.38 in
Product Weight
9.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
Cast aluminum
Wattage
500W
Mounting Method
Post-top
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Type
C-clamp design
Crouse-Hinds Pauluhn Achiever Dusttight Halogen Floodlights catalog page
IF LBL1566 - Pauluhn Achiever Dustight QAC Floodlights
Eaton Specification Sheet - QAC511P
The QAC511P leverages a cast aluminum housing to deliver exceptional mechanical durability, reducing impact-related maintenance costs while enabling reliable operation in harsh environments. This translates to lower downtime and improved uptime metrics for facilities handling outdoor storage or exterior work zones, particularly where weather exposure is a concern. The 6x6 optical distribution paired with a tempered glass lens provides precise light control, minimizing glare and spill while improving task performance and worker safety in industrial settings. The quartz halogen lamp delivers bright, immediate illumination with predictable color rendering, supporting fast deployment in projects requiring immediate readiness and consistent visibility. A post-top mounting design simplifies installation on existing infrastructure, lowering labor costs and speeding up project timelines. The C-clamp design enhances mounting versatility, facilitating quick retrofits and adaptable positioning across uneven surfaces. Built to meet ordinary/non-hazardous location classifications, it remains compatible with NEC/CEC standards and local codes, reducing regulatory risk. Overall, the QAC511P offers a compelling balance of durability, performance, and installation efficiency that translates into measurable total cost of ownership savings for maintenance teams and procurement departments.
Get a Quick Quote for a Eaton QAC511P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QAC511P?
Enquire Now
FAQs
The QAC511P is designed for post-top mounting with a C-clamp design, allowing straightforward installation on standard poles or compatible fixtures. This mounting approach reduces installation time and provides flexible positioning to optimize light coverage in outdoor or industrial areas.
No. The QAC511P is certified for Ordinary/Non-Hazardous Locations with IP66 protection and a NEMA 4 enclosure. It is intended for non-hazardous industrial environments where weather resistance and dust protection are critical, not for Class I/II hazardous atmospheres.
The QAC511P carries NEC/CEC compliance, a NEMA 4 enclosure, and IP66 ingress protection. These certifications ensure compliance with common electrical codes and robust protection against dust and water ingress in industrial applications.
The luminaire operates at 120 VAC with a 500 W quartz halogen lamp, offering immediate full illumination. Its electrical design supports reliable performance in outdoor or exposed environments while maintaining compatibility with standard 120 V power distribution systems.
Use the post-top mounting and C-clamp design for rapid hardware installations, and reference the IF LBL1566 instruction sheet for step-by-step guidance. The tempered glass lens and cast aluminum housing reduce maintenance needs, while the 6x6 optical distribution provides efficient light control to meet site-specific illumination requirements.
