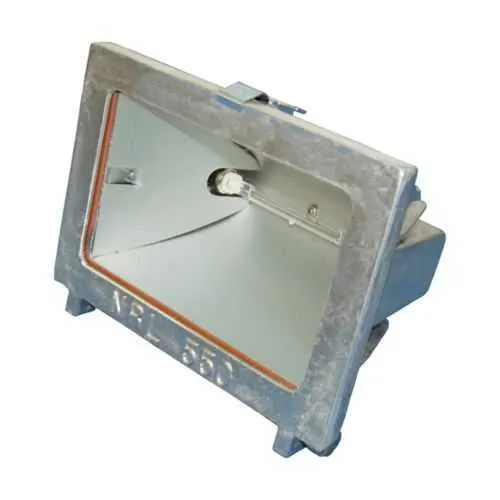

Eaton QAL502T QL Floodlight - Quartz Halogen IP66
Part Number: QAL502T
Quick Summary
Eaton QAL502T QL floodlight is a rugged, reliable lighting solution for industrial facilities and outdoor areas requiring durable, maintenance-friendly illumination. This fixture addresses downtime and premature lumen loss in harsh environments by delivering robust protection and high-quality optics. Key certifications matter in the field: IP66 ingress protection for water and dust resistance, NEMA 4 enclosure rating for severe environments, and NEC/CEC compliance for electrical safety. By combining a quartz halogen lamp, cast aluminum housing, and tempered glass lens, this floodlight enables safer, more efficient operations while reducing maintenance frequency and facilitating straightforward installation across multiple sites.
Product Information
Extended Description
QAL502T Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QL floodlight, Quartz halogen lamp, Tempered glass lens, Cast aluminum, Trunnion mount, 6x6 optical distribution, Single latch design, 240 Vac, 500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QL floodlight
Catalog Number
QAL502T
UPC
662276498860
Product Length/Depth
10 in
Product Height
8.75 in
Product Width
5.44 in
Product Weight
8.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
Cast aluminum
Wattage
500W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
240 Vac
Lens material
Tempered glass
Type
Single latch design
Crouse-Hinds Pauluhn Achiever Dusttight Halogen Floodlights catalog page
IF LBL1377 - Pauluhn Achiever Dustight QAL Floodlights
Eaton Specification Sheet - QAL502T
The QAL502T uses a 500W quartz halogen lamp at 240 VAC to deliver high-intensity illumination with fast start-up, addressing the need for immediate visibility in loading docks and work zones. Cast aluminum housing and tempered glass lens provide rugged durability and optical clarity, protecting against impact and environmental exposure in non-hazardous locations while maintaining lumen output. The 6x6 optical distribution concentrates light for broad area coverage, improving safety and reducing the number of fixtures required per site. A trunnion mounting method offers flexible aiming and quick alignment during installation or retrofits, supported by a single latch design that speeds lamp replacement and routine maintenance. Compliance with NEC/CEC, IP66 sealing, and NEMA 4 protection enhances regulatory peace of mind and reduces long-term operating costs. Long-tail keywords integrated include Pauluhn Achiever floodlights, dusttight floodlights, trunnion mount floodlight, 6x6 optical distribution, tempered glass lens, cast aluminum enclosure, and 240 VAC lighting to reflect real-world search queries and applications.
Get a Quick Quote for a Eaton QAL502T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QAL502T?
Enquire Now
FAQs
The QAL502T utilizes a versatile trunnion mounting approach that enables precise horizontal and vertical aiming. This flexibility supports quick alignment during installation and simplifies retrofits to existing Pauluhn Achiever fixtures. The design minimizes on-site adjustments, reduces wiring interference, and helps achieve consistent lighting coverage across docks, aisles, and exterior spaces.
QAL502T runs on 240 VAC and uses a 500 W quartz-halogen lamp, delivering high-intensity illumination with fast warm-up. The fixture features a cast aluminum housing and tempered glass lens, providing durable performance in industrial environments while maintaining luminance under varying ambient conditions. This combination targets reliable, maintenance-friendly operation in ordinary locations.
Yes. With IP66 ingress protection and a NEMA 4 enclosure, the QAL502T is designed to resist dust and powerful water jets, making it suitable for outdoor and semi-exposed areas such as loading docks and exterior walkways. It complies with NEC/CEC standards, ensuring safe installation and operation in non-hazardous industrial settings.
The QAL502T carries IP66 protection, a NEMA 4 enclosure, and NEC/CEC compliance. It is intended for ordinary/non-hazardous locations, aligning with electrical safety requirements and ensuring robust environmental protection. These certifications support code compliance, safer maintenance practices, and reliable performance in industrial facilities.
The fixture employs a durable cast aluminum body with a tempered glass lens and a single-latch access, reducing maintenance time and spare parts. Its rugged construction lowers downtime and extends service intervals, while the quartz halogen lamp delivers predictable performance, contributing to a lower total cost of ownership across multi-site operations.
