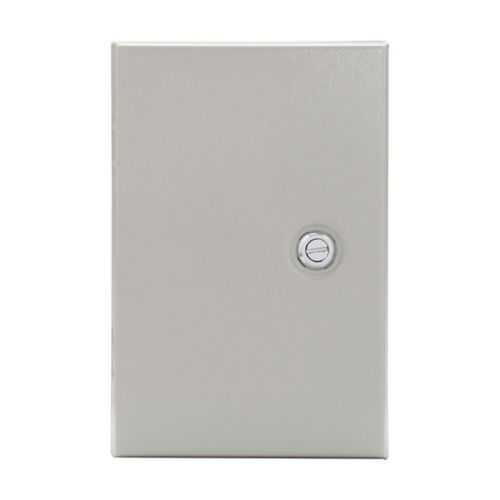

Eaton QBXPS404022UL Enclosure - IP66 & Hazardous Locations
Part Number: QBXPS404022UL
Quick Summary
Eaton QBXPS404022UL enclosure protects electrical gear in hazardous areas for safe, compliant control panels. The challenge is delivering rugged protection while meeting strict NEC/CEC codes and minimizing installation time. This model carries NEC/CEC hazardous-location ratings, IP66 ingress protection, and a NEMA 4/3S specification to support audits and reliability. With its painted sheet steel construction and QBX family lineage, it delivers cost-efficient protection for standard industrial enclosures and outdoor uses, supporting reliable panel integration. Secondary considerations like compatibility with standard electrical accessories and straightforward mounting translate to faster setup and reduced downtime. In practice, engineers gain predictable performance, better uptime, and clearer compliance documentation for audits and maintenance.
Product Information
Extended Description
QBXPS404022UL Eaton: Eaton Crouse-Hinds series QBX enclosure, 8.66" depth, 15.75" x 15.75" x 8.66", Painted sheet steel
Product Name
Eaton Crouse-Hinds series QBX enclosure
Catalog Number
QBXPS404022UL
Product Length/Depth
15.75 in
Product Height
15.75 in
Product Width
8.66 in
Product Weight
16.42 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class III Class II, Division 2 Class II, Division 1
NEMA Rating
4 3S
Ingress protection (IP) ratings
IP66
Material
Painted sheet steel
Depth
8.66 in
Enclosure size
15.75" x 15.75" x 8.66"
Crouse-Hinds series QBX Stainless Steel or Sheet Steel Enclosures catalog page
Eaton Specification Sheet - QBXPS404022UL
Feature: Painted sheet steel QBX enclosure delivers sturdy, economical protection for electrical assemblies. Business impact: The durable painted finish resists corrosion and reduces lifecycle costs, enabling longer service intervals. Application: Ideal for compact control panels in manufacturing lines where space and budget matter. Feature: IP66 ingress protection combined with NEMA 4/3S ratings. Business impact: Keeps dust and water out in harsh environments, lowering maintenance downtime and extending component life. Application: suitable for indoor and outdoor installations across industrial plants and process facilities. Feature: Hazardous Location ratings per NEC/CEC including Class I Division 2, Zone 2, Class II and III. Business impact: Simplifies regulatory approvals, supports compliance reporting, and reduces risk during audits. Application: critical for chemical processing, oil and gas, and hazardous-material handling scenarios. Feature: Exact dimensions 15.75 in length, 15.75 in height, 8.66 in depth; weight 16.42 lb. Business impact: provides predictable footprint and manageable weight for quick installation and mounting. Application: fits standard wall or equipment enclosures in space-constrained panels. Feature: Documentation and compatibility within the QBX family, with downloadable spec sheet and catalog page. Business impact: Accelerates design, procurement, and installation planning with clear data. Application: panel builders and integrators seeking rapid configuration. Feature: Industry context: The QBX enclosures address rigorous industrial automation needs, delivering reliable protection for downstream processes, packaging lines, and hazardous-area control panels. Business impact: reduces risk, improves uptime, and supports compliant modernization. Application: plant retrofits, new installations, and safety-critical systems.
Get a Quick Quote for a Eaton QBXPS404022UL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QBXPS404022UL?
Enquire Now
FAQs
It is rated NEC/CEC hazardous location (Class I Division 2, Zone 2, Class II/III), IP66 protection, and NEMA 4/3S, making it appropriate for chemical plants, oil & gas, and water-treatment facilities.
Dimensions are 15.75 in L × 15.75 in H × 8.66 in D and it weighs 16.42 lb; constructed from painted sheet steel for a durable yet cost-effective enclosure.
The enclosure complies with NEC/CEC for hazardous locations, offers IP66 ingress protection, and carries a NEMA 4/3S rating, suitable for demanding industrial environments.
You can access the Eaton QBXPS404022UL specification sheet at Eaton’s site and view the Crouse-Hinds QBX catalog page for broader QBX family context.
Yes. The QBX series is designed for reliable integration with standard electrical accessories and common installation practices in hazardous-location control panels.
