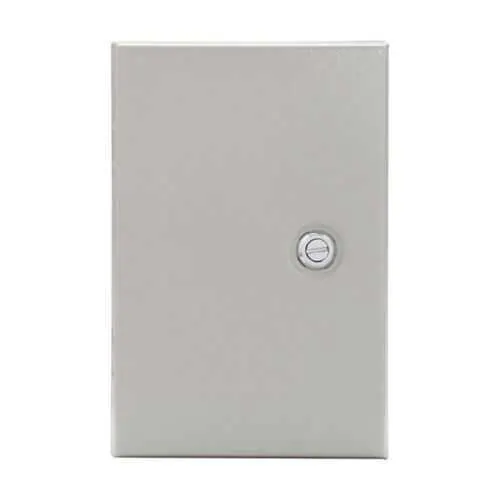

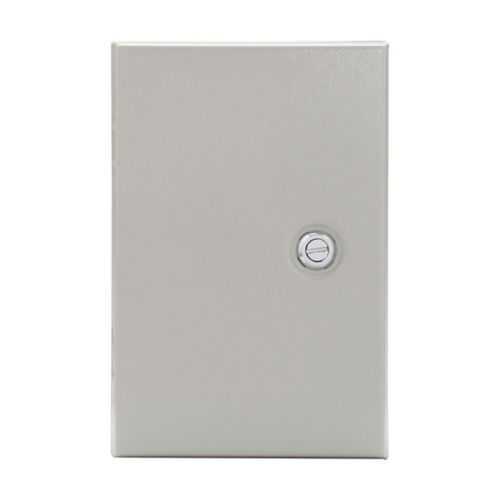

Eaton QBXPS604012UL Enclosure - IP66 Hazardous Locations
Part Number: QBXPS604012UL
Quick Summary
Eaton QBXPS604012UL enclosure is an industrial-grade solution that protects electrical controls and power distribution equipment in harsh environments. This addresses downtime, corrosion risk, and safety concerns that arise when protection is inadequate for outdoor, industrial, or hazardous sites. The unit meets IP66 ingress protection, NEMA 3S and 4 ratings, and NEC/CEC hazardous-location classifications (Class I Division 2, Zone 2; Class II/III) to support code compliance. Manufactured from painted sheet-steel with a 23.62 by 15.75 by 4.72 inch footprint, it balances rugged durability with a manageable install footprint. Its compatibility with the QBX family accelerates procurement, simplifies stocking, and reduces retrofit risk across oil and gas, chemical processing, and water-treatment facilities. Engineers gain a durable, code-ready enclosure that supports safer installations and faster maintenance in hazardous environments.
Product Information
Extended Description
QBXPS604012UL Eaton: Eaton Crouse-Hinds series QBX enclosure, 4.72" depth, 23.62" x 15.75" x 4.72", Painted sheet steel
Product Name
Eaton Crouse-Hinds series QBX enclosure
Catalog Number
QBXPS604012UL
Product Length/Depth
15.75 in
Product Height
23.62 in
Product Width
4.72 in
Product Weight
16.33 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3S 4
Ingress protection (IP) ratings
IP66
Material
Painted sheet steel
Depth
4.72 in
Enclosure size
23.62" x 15.75" x 4.72"
Crouse-Hinds series QBX Stainless Steel or Sheet Steel Enclosures catalog page
Eaton Specification Sheet - QBXPS604012UL
Feature: IP66 ingress protection paired with a sturdy painted sheet-steel body delivers reliable dust and water sealing, reducing corrosion risk and unplanned downtime. Benefit: Longer service life for control panels and lower maintenance costs in harsh environments. Application: Outdoor locations, wash-down areas, and chemical plants where dependable protection is essential. Feature: Hazardous-location ratings (Class I Division 2, Zone 2; Class II/III) with NEC/CEC compliance. Benefit: Enables safe installation of electrical gear in hazardous areas, supporting regulatory compliance and risk reduction. Application: Oil refineries, petrochemical plants, and other zones requiring robust protection. Feature: Compact footprint of 23.62 in height by 15.75 in length and 4.72 in depth (weight 16.33 lb). Benefit: Space-efficient mounting reduces wall and enclosure footprint, streamlining layout and reducing installation time. Application: Process lines, control panels, and equipment nests in restricted spaces. Feature: Painted steel construction offers durability with corrosion resistance. Benefit: Lower upkeep costs and longer asset life in aggressive environments. Application: Outdoor utilities, water treatment, and industrial facilities exposed to moisture and dust. Feature: QBX family compatibility with catalog and datasheet support. Benefit: Simplifies procurement, supports standardized parts management, and minimizes sourcing risk. Application: System integrations, panel upgrades, and multi-equipment installations across facilities.
Get a Quick Quote for a Eaton QBXPS604012UL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QBXPS604012UL?
Enquire Now
FAQs
QBXPS604012UL is designed to complement the Eaton Crouse-Hinds QBX enclosure family. It shares mounting dimensions and panel interfaces typical of QBX products, streamlining parts procurement and allowing straightforward replacement or expansion. For best results, reference the QBX catalog page and the QBXPS604012UL datasheet to confirm mounting holes, gasket selections, and door configurations before installation.
The enclosure carries NEC/CEC hazardous-location classifications including Class I, Division 2, Zone 2; Class II, Division 1 and 2; and Class III. It also has IP66 ingress protection and a NEMA rating of 3S 4, supporting compliance in environments with flammable gases, vapors, and dust, such as refineries and chemical plants.
Yes. With IP66 ingress protection and rugged painted sheet-steel construction, the QBXPS604012UL is designed for outdoor use, wash-down areas, and harsh industrial sites. Its hazardous-location approvals further ensure safe operation in environmental conditions typical of oil, gas, and chemical processing facilities while maintaining enclosure integrity.
The QBXPS604012UL measures 23.62 inches in height, 15.75 inches in length/depth, and 4.72 inches in width, with a weight of approximately 16.33 pounds. These specifications help engineers plan mounting, verify clearances, and estimate shipping and handling during deployment in constrained spaces.
You can access the Eaton Crouse-Hinds QBX enclosures catalog page and the QBXPS604012UL specification sheet from Eaton’s official site via the provided product data. These resources include installation guidelines, dimensional drawings, material information, and compliance notes to support project documentation and regulatory audits.
