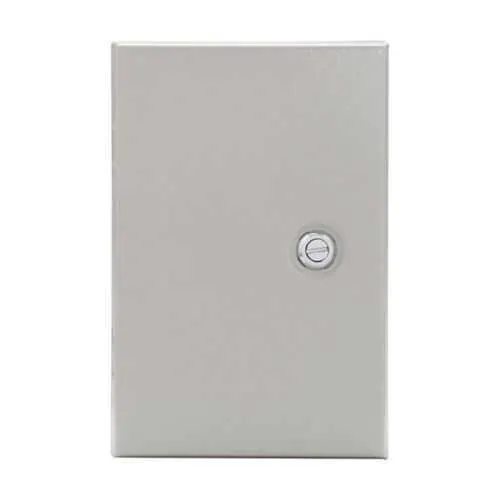

Eaton QBXS2505022UL QBX Enclosure - IP66 4X
Part Number: QBXS2505022UL
Quick Summary
The Eaton QBXS2505022UL QBX enclosure protects electrical gear in hazardous industrial spaces. A single enclosure that withstands corrosion, dust, and regulatory demands reduces redesigns and field returns. It carries NEMA 4X and IP66 protection along with NEC/CEC compliance and hazardous-location ratings, making it suitable for Class I, Zone 2 environments. Designed for stainless steel enclosures and hazardous location applications, it supports reliable automation deployments in chemical, oil, and gas facilities, delivering long-term lifecycle value for industrial projects. The QBX series also offers compatibility with common mounting patterns, simplifying retrofits and spare-parts planning while enabling robust protection in washdown or outdoor settings.
Product Information
Extended Description
QBXS2505022UL Eaton: Eaton Crouse-Hinds series QBX enclosure, 8.66" depth, 19.68" x 19.68" x 8.66", 304 stainless steel
Product Name
Eaton Crouse-Hinds series QBX enclosure
Catalog Number
QBXS2505022UL
Product Length/Depth
19.68 in
Product Height
19.68 in
Product Width
8.66 in
Product Weight
22.22 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class I, Division 2 Class II, Division 1 Class III Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Material
304 stainless steel
Depth
8.66 in
Enclosure size
19.68" x 19.68" x 8.66"
Crouse-Hinds series QBX Stainless Steel or Sheet Steel Enclosures catalog page
Eaton Specification Sheet - QBXS2505022UL
Stainless steel 304 construction provides exceptional corrosion resistance in demanding environments, extending enclosure life and reducing replacement costs for chemical plants and offshore installations. The robust material choice supports long-term reliability, enabling maintenance teams to schedule inspections around process-driven downtimes rather than frequent part replacements. Large interior dimensions (19.68 in x 19.68 in x 8.66 in) offer ample space for modern controls, drives, and I/O modules, simplifying layout and reducing panel fabrication time during installations or upgrades. IP66 and NEMA 4X protection deliver dependable ingress protection against dust, water, and washdown exposure, minimizing field failures and downtime in harsh environments. Hazardous-location ratings (Class I, Zone 2; Class II, Division 1/2) ensure compliance with regulatory requirements, enabling safe integration of electrical assemblies in oil, gas, and chemical facilities. At 22.22 lb, the enclosure is manageable for installation, transport, and service contractors, supporting efficient project timelines. The QBX design aligns with common mounting patterns and accessory compatibility, aiding retrofits and future expansions without costly enclosures swaps.
Get a Quick Quote for a Eaton QBXS2505022UL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QBXS2505022UL?
Enquire Now
FAQs
The QBXS2505022UL QBX enclosure is designed for straightforward installation with standard mounting patterns compatible with common control panels. Its 19.68 in x 19.68 in x 8.66 in footprint provides ample interior space for PLCs, drives, and terminal blocks, while the 304 stainless steel construction supports secure mounting in washdown and outdoor environments. When retrofitting, verify base flange dimensions and accessory compatibility to ensure a seamless upgrade path.
IP66 and NEMA 4X ratings protect against powerful water jets, dust ingress, and corrosion, enabling reliable performance in harsh environments. This combination reduces seal failures and maintenance, supports washdown routines, and ensures regulatory compliance for equipment located outdoors, in chemical plants, or near process fluids.
Yes. The enclosure carries NEC hazardous-location ratings including Class I, Zone 2, and related classifications, making it appropriate for hazardous-area installations in oil & gas, petrochemical, and similar facilities. Always confirm exact site classifications and ensure proper installation practices to maintain compliance.
The QBXS2505022UL aligns with NEC/CEC standards and provides hazardous-location ratings (Class I Zone 2, Class I Division 2, Class II Division 1/2, Class III). It also carries NEMA 4X and IP66 ratings, offering comprehensive protection for demanding environments and helping ensure regulatory compliance across industrial plants.
The 304 stainless steel construction delivers superior corrosion resistance, reducing replacement frequency and maintenance costs in chemical, coastal, or washdown environments. Coupled with robust IP66/NEMA 4X protection and hazardous-location ratings, the enclosure lowers downtime, simplifies compliance audits, and supports longer intervals between service windows, delivering a favorable total cost of ownership for automation projects.
