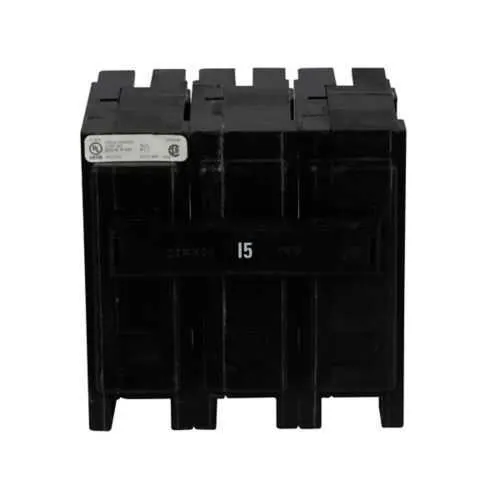

Eaton QPHW3015H Circuit Breaker - UL Listed
Part Number: QPHW3015H
Quick Summary
Eaton QPHW3015H thermal-magnetic circuit breaker protects industrial panels and control circuits. This device helps engineers prevent nuisance trips and field failures by combining instantaneous thermal and magnetic trip mechanisms for reliable, long-life protection. It carries CSA Certified and UL Listed marks and is HACR rated for HVAC and general electrical loads, reinforcing compliance in commercial and industrial environments. With plug-on mounting, fixed terminals, and a compact three-pole design, it streamlines panel layouts and reduces installation time. The 15 A rating, 22 kAIC interrupt capacity, and 240 V rating make it a versatile choice for distribution feeders, motor circuits, and protection for equipment in demanding settings.
Product Information
Extended Description
QPHW3015H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,15 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3015H
UPC
786679387252
Product Length/Depth
3.8 in
Product Height
4.7 in
Product Width
3.2 in
Product Weight
1.1 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
CSA Certified UL Listed
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
15 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Thermal-magnetic Quicklag trip technology reduces nuisance trips and provides coordinated protection in motor feeders, enhancing uptime and extending component life. This translates to lower maintenance costs and fewer unexpected outages in demanding industrial environments. The device is well suited for control panels, feeders, and machine centers that require reliable overcurrent protection in 240 V circuits. The three-pole plug-on mounting with fixed terminals speeds installation, reduces wiring errors, and enables compact panel layouts in high-density electrical rooms. It also simplifies field service because terminals are pre-wired and secured, cutting commissioning time by hours per panel. The rugged construction resists vibration and incidental impacts while maintaining electrical tolerances in harsh environments. With a 22 kAIC interrupt rating at 240 V, the breaker safely interrupts high fault currents typical of motors and conveyors, protecting conductors and equipment. HACR rating supports HVAC and building automation loads, making the QPHW3015H suitable for mixed-use facilities. UL Listed and CSA Certified certifications substantiate compliance across North American standards, while a 1-year warranty offers maintenance planning support and favorable ROI in industrial operations.
Get a Quick Quote for a Eaton QPHW3015H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3015H?
Enquire Now
FAQs
QPHW3015H features plug-on mounting with fixed terminals for quick, secure installation in industrial panels. The three-pole design simplifies wiring, reduces panel depth, and supports dense control architectures. This configuration minimizes wiring errors, shortens commissioning time, and ensures reliable connections in harsh factory environments.
The QPHW3015H carries a 22 kAIC interrupt rating at 240 V, enabling rapid clearance of high-current faults typical in motors and feeders. This level of protection limits damage to conductors and equipment, improves personnel safety, and helps maintain uptime in heavy-industry applications without unnecessary nuisance tripping.
Yes, the QPHW3015H is HACR Rated, meaning it is suitable for HVAC and general electrical loads in commercial and industrial facilities. HACR compatibility supports building automation projects and climate-control systems while meeting applicable safety standards and reducing the risk of nuisance trips in HVAC circuits.
The device is UL Listed and CSA Certified, ensuring conformity to North American safety standards. This simplifies procurement and compliance when assembling industrial control panels, protects against noncompliant components, and supports warranty coverage and supplier confidence.
Industries with motor control centers, conveyors, pumps, and automation panels benefit from the QPHW3015H due to robust protection, fast fault interruption, and easy installation. The 15 A rating aligns with small-to-medium feeders, while the 22 kAIC rating protects against high fault currents, reducing downtime and maintenance costs, contributing to lower total cost of ownership in industrial operations.
