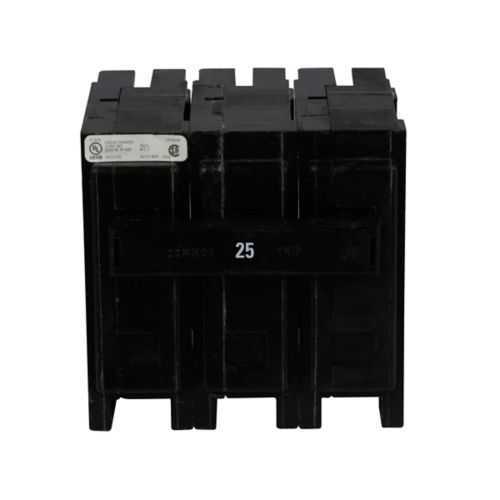

Eaton QPHW3025H Industrial Breaker - 22 kAIC
Part Number: QPHW3025H
Quick Summary
Eaton QPHW3025H industrial thermal-magnetic circuit breaker protects motor and panel circuits in rugged industrial environments. Selecting the right breaker can be challenging amid high short-circuit demands and limited panel space. Certified UL Listed and CSA Certified with HACR rating, this unit supports safe operation in industrial and HVAC-ready applications. Its plug-on three-pole design simplifies installation, while fixed terminals improve termination reliability, delivering measurable business value through reduced downtime and predictable protection for critical equipment.
Product Information
Extended Description
QPHW3025H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,25 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3025H
UPC
786679387276
Product Length/Depth
3.1 in
Product Height
3 in
Product Width
3.1 in
Product Weight
1 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
CSA Certified UL Listed
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
25 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Feature → Business Impact → Application: The QPHW3025H uses a thermal-magnetic trip mechanism to deliver coordinated protection for motor loads and panel circuits, reducing nuisance tripping and protecting downstream equipment. This translates to improved uptime and lower maintenance costs in manufacturing lines and process controls. Application: Ideal for rugged industrial panels where quick, reliable fault clearance is essential and where 240 V circuits require robust 25 A protection with a 22 kAIC interrupt rating. Feature → Business Impact → Application: Fixed terminals and a plug-on mounting method streamline wiring and installation, cutting commissioning time and minimizing wiring errors in control cabinets. Application: Suitable for new builds or retrofits in machine centers and HVAC electrical rooms. Feature → Business Impact → Application: HACR-rated compliance ensures safe integration with HVAC equipment and other heat-generating loads, supporting regulatory adherence and safer energy management. Application: Widely used in commercial-industrial environments requiring dependable overcurrent protection with clear maintenance pathways.
Get a Quick Quote for a Eaton QPHW3025H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3025H?
Enquire Now
FAQs
The QPHW3025H features plug-on mounting with fixed terminals, designed for straightforward installation in 3-pole configurations. Ensure proper alignment with panel din rail or mounting provisions, verify 240 V circuit compatibility, and confirm wiring terminations meet local electrical codes. This setup minimizes wiring errors and accelerates commissioning in control panels.
Yes. The QPHW3025H carries HACR rating, making it suitable for HVAC-related loads where heat-generating equipment requires reliable overcurrent protection. This ensures safer integration with cooling and heating systems while maintaining compliance with electrical safety standards.
The breaker is UL Listed and CSA Certified, with HACR compliance. These certifications validate safety, performance, and interoperability in North American industrial installations, reducing procurement risk and facilitating regulatory approval for panel builds and retrofit projects.
With a 25 A rating and 22 kAIC interrupt capability, the unit delivers robust protection that minimizes nuisance trips, reducing unplanned downtime. Coupled with a 1-year warranty and durable construction, it supports lower maintenance costs and faster recovery after faults, enhancing overall equipment effectiveness (OEE).
Absolutely. The QPHW3025H is designed for 240 V circuits with a 22 kAIC interrupt rating. It uses a plug-on mounting method with fixed terminals, providing secure termination and efficient installation in compact control panels or motor starter cabinets.
