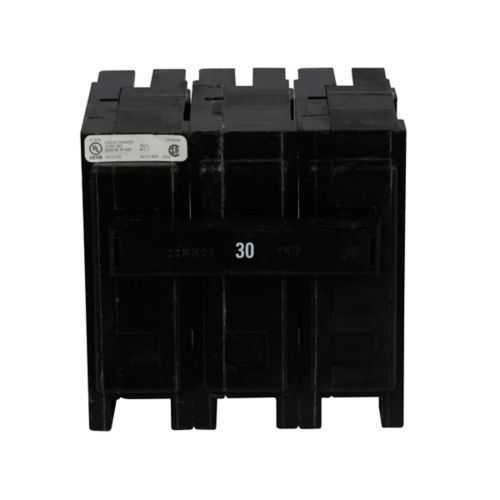

Eaton QPHW3030H Industrial Circuit Breaker - HACR
Part Number: QPHW3030H
Quick Summary
Eaton QPHW3030H is a thermal‑magnetic circuit breaker built for industrial power distribution and machine protection. In demanding panels, nuisance trips and space constraints can derail uptime; this unit solves that with precise trip timing and a compact 3‑Pole plug‑on design. It carries CSA Certified and UL Listed marks and is HACR rated for HVAC and light‑industry use, aligning with safety and energy codes. With a 30 A rating, 22 kAIC interrupt capacity, and 240 V operation, it delivers reliable protection for three‑phase circuits. This combination supports streamlined panel assembly, easier maintenance, and lower total cost of ownership in manufacturing and process environments.
Product Information
Extended Description
QPHW3030H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,30 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3030H
UPC
786679387283
Product Length/Depth
3.8 in
Product Height
4.9 in
Product Width
3.1 in
Product Weight
1.15 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
CSA Certified UL Listed
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
30 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Thermal-magnetic Quicklag protection delivers precise overload and short-circuit response with a controlled trip curve, reducing nuisance trips during motor start-ups and inrush events. Business impact: fewer unplanned shutdowns, smoother production lines, and extended equipment life. Application: ideal for three-phase motors, pumps, and conveyors in industrial plants where steady power availability matters. Paragraph two continues to emphasize installation ease: Three-pole plug-on mounting with fixed terminals streamlines installation and simplifies field service. Impact: faster commissioning, reliable connections, and lower labor costs during panel upgrades. Application: retrofit into existing control panels and new builds requiring robust, take‑and‑go protection for 240 V three-phase circuits. Paragraph three highlights electrical robustness: 30 A, 240 V rating with 22 kAIC interrupt capacity and T268 trip type ensure safe disconnection under short-circuit conditions, protecting downstream equipment and reducing arc flash risk. Application: power distribution panels, motor control centers, and feeders in manufacturing environments. Paragraph four covers compliance: HACR rated; CSA Certified; UL Listed. Impact: codes compliance for HVAC and light-industrial installations, simplifying procurement and inspection. Application: industrial HVAC, processing facilities, and energy‑managed environments. Paragraph five reinforces lifecycle value: Non-interchangeable configuration clarifies compatibility and reduces stocking errors, while a compact form factor and modest weight support faster field service and maintenance planning.
Get a Quick Quote for a Eaton QPHW3030H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3030H?
Enquire Now
FAQs
Install the QPHW3030H using its plug-on mounting with fixed terminals for a secure connection. Ensure the panel supports 240 V three-phase circuits and that the device is configured as a non-interchangeable unit to prevent mismatches during replacement.
The breaker is rated for 30 A, 240 V with a 22 kAIC interrupt rating and a T268 trip type. It is designed for three-pole applications and provides reliable protection against overloads and short circuits.
Yes. It is HACR rated and UL Listed with CSA certification, making it appropriate for HVAC control panels and light-industrial processing environments where code compliance and reliable protection are essential.
This unit is CSA Certified and UL Listed, with HACR rating for HVAC applications, ensuring alignment with safety and performance standards in industrial facilities.
Thermal‑magnetic Quicklag action reduces nuisance trips, while fixed terminals and plug‑on mounting simplify service and replacements, supporting lower maintenance costs and improved uptime over the life of the panel.
