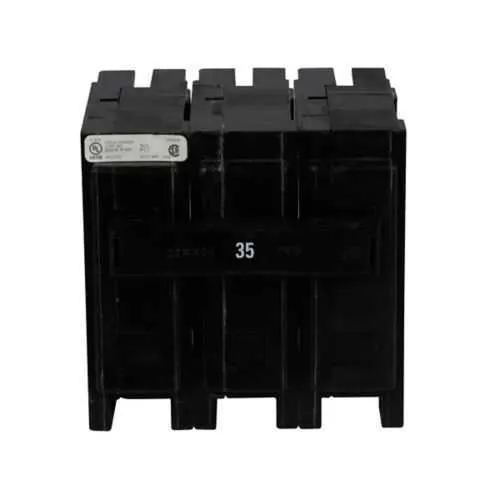

Eaton QPHW3035H industrial thermal-magnetic circuit breaker - UL Listed
Part Number: QPHW3035H
Quick Summary
Eaton Quicklag QPHW3035H is an industrial thermal-magnetic circuit breaker designed for reliable protection of 3-pole, 240 V circuits in panels and switchgear. Engineers frequently face nuisance trips, mis-specified protection, and slow field swaps when safeguarding motors and feeders; this device addresses those pain points with precise coordination and robust protection. With HACR Rated performance and multiple certifications, it supports safe operation in HVAC and general industrial loads. The 35 A rating paired with a 22 kAIC interrupt capability aligns with common plant electrical schemes, while a plug-on mounting and fixed terminals streamline installation. This combination of protection, reliability, and installation efficiency supports cost-effective panel design and easier procurement through UL Listed and CSA Certified coverage.
Product Information
Extended Description
QPHW3035H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,35 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3035H
UPC
786679387290
Product Length/Depth
3 in
Product Height
3 in
Product Width
3 in
Product Weight
1.1 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
35 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Feature: 35 A amperage rating and 22 kAIC interrupt rating provide substantial protection for motor and feeder circuits; Business Impact: reduces risk of equipment damage from short circuits and overloads, lowering downtime; Application: ideal for 240 V three-pole panels in industrial settings. Feature: Three-pole, plug-on mounting with fixed terminals; Business Impact: enables fast, secure installation with minimal field wiring complexity; Application: panel boards and motor control centers benefit from rapid replacements and dependable field connections. Feature: HACR rated compliance; Business Impact: safe for HVAC and related motor loads, aligning with regulatory expectations; Application: HVAC systems in industrial facilities and commercial buildings. Feature: Non-Interchangeable option; Business Impact: reduces the risk of mis-matching protection devices during retrofits or upgrades; Application: retrofits and controlled expansion projects. Feature: UL Listed and CSA Certified; Business Impact: streamlines procurement and regulatory acceptance; Application: suitable for regulated industries and cross-site deployments. Feature: 1-year warranty; Business Impact: lowers total cost of ownership through predictable service life and support; Application: reliable long-term protection in mission-critical power distribution. Feature: Compatibility with Eaton Quicklag family; Business Impact: leverages existing stock and panel design, reducing training and inventory complexity; Application: new installations and spare-part strategy in manufacturing environments.
Get a Quick Quote for a Eaton QPHW3035H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3035H?
Enquire Now
FAQs
QPHW3035H uses plug-on mounting with fixed terminals, designed for quick, secure insertion into Eaton panel boards and compatible enclosures. It supports three-pole configurations at 240 V and aligns with the Quicklag family for streamlined retrofits, reducing wiring complexity and installation time without compromising reliability.
The device is rated for 35 A continuous current with a 22 kAIC interrupt rating at 240 V. Its thermal-magnetic trip type (T268) provides selective protection against overloads and short circuits, helping minimize nuisance trips while preserving downstream equipment.
Yes. The 3-pole, 240 V configuration with HACR rating makes it appropriate for motor control centers, feeders, and HVAC-related loads. Its 22 kAIC interrupt rating ensures fast clearance of high faults, protecting motors and power distribution gear in industrial environments.
QPHW3035H is UL Listed and CSA Certified, with HACR rating support. These certifications simplify regulatory approvals, cross-site procurement, and enable use in regulated industrial installations where recognized protection devices are required.
With fixed terminals and plug-on mounting, field replacement is straightforward, reducing downtime during maintenance. The 1-year warranty adds a predictable support window, while compatibility with the Eaton Quicklag family helps maintain consistent protection strategies across plants, improving ROI through reduced stocking and unified maintenance procedures.
