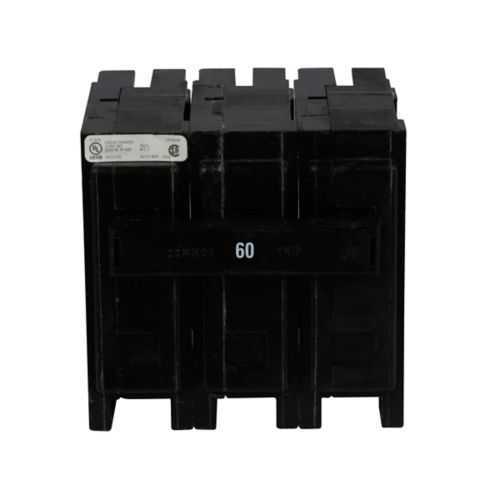

Eaton QPHW3060H Industrial Thermal-Magnetic Breaker - UL
Part Number: QPHW3060H
Quick Summary
The Eaton QPHW3060H is an industrial circuit breaker protecting control panels and machines from overloads. Engineers often grapple with nuisance trips and compatibility gaps when upgrading legacy gear. UL Listed and CSA Certified with HACR rating ensure reliable protection for HVAC and motor-driven loads. Plug-on mounting with fixed terminals simplifies installation in dense panels, while a 60 A / 22 kAIC rating supports high-demand circuits. For OEMs and integrators, that translates to faster commissioning, reduced spare parts, and improved overall system uptime.
Product Information
Extended Description
QPHW3060H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,60 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3060H
UPC
786679387320
Product Length/Depth
3.8 in
Product Height
4.9 in
Product Width
3.2 in
Product Weight
1.15 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
60 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Feature: Thermal-magnetic protection provides fast, selective interruption of fault currents, reducing nuisance trips and arc-flash exposure. Business Impact: Improves equipment uptime and safety in high-startup-load environments. Application: Ideal for motors, conveyors, and process machinery in manufacturing lines. Feature: Three-pole plug-on mounting with fixed terminals simplifies wiring and accelerates field installation. Business Impact: Shortens commissioning time, ensures solid, vibration-resistant connections, and lowers training needs for maintenance staff. Application: Efficient upgrades in dense control panels and panel-board retrofits. Feature: Robust electrical ratings — 60 A, 22 kAIC, 240 V — with Trip Type T268. Business Impact: Delivers strong short-circuit protection for demanding loads while accommodating normal operating surges. Application: Suitable for high-current industrial circuits and energy-intensive equipment. Feature: Certifications and HACR rating. Business Impact: Streamlines regulatory approvals and safety compliance across HVAC and general electrical installations. Application: Preferred in building services, machinery control, and process environments. Feature: Compact footprint, modest weight, and durable construction with a 1-year warranty. Business Impact: Enables dense panel layouts, easier handling, and predictable lifecycle costs for OEMs and service teams. Application: OEM production lines, field service replacements, and retrofit projects.
Get a Quick Quote for a Eaton QPHW3060H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3060H?
Enquire Now
FAQs
The QPHW3060H uses a plug-on mounting design with fixed terminals, engineered for standard 3-pole panels and compatible bus configurations used in industrial control panels. When upgrading, verify panel width, bus spacing, and enclosure clearance to ensure secure seating and compliant wiring during installation.
Key specs include a 60 A amperage rating, 22 kAIC interrupt rating, 240 V operating voltage, and three-pole configuration. The device employs thermal-magnetic trip with Trip Type T268 and is HACR rated, supporting motor and HVAC-related loads while maintaining reliable protection.
Yes. The HACR-rated UL Listed and CSA Certified design is intended for motor-driven loads and HVAC applications. With a 60 A rating and 22 kAIC interrupt capacity, it provides dependable short-circuit protection for motor control centers, conveyors, and HVAC panels.
The device is UL Listed and CSA Certified, with HACR-rated performance. These certifications certify safety and reliability for general electrical installations, HVAC equipment, and industrial control panels, aiding compliance with regulatory and insurance requirements.
With a 1-year warranty and a robust thermal-magnetic mechanism, it offers reliable protection with minimal maintenance. Its compact, fixed-terminal design reduces wiring errors, lowers repair time during replacements, and simplifies lifecycle planning for OEMs and service teams.
