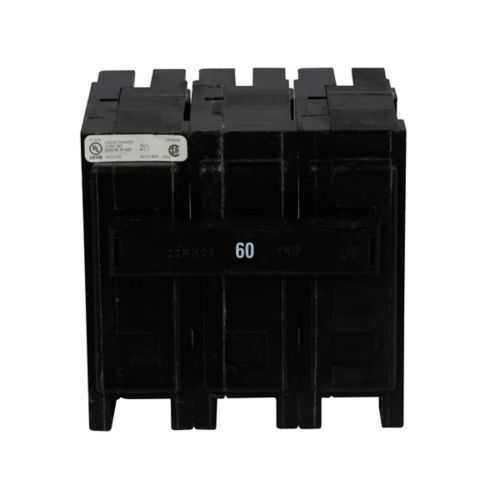

Eaton QPHW3060HS Industrial Breaker - 22 kAIC
Part Number: QPHW3060HS
Quick Summary
QPHW3060HS is an industrial thermal-magnetic circuit breaker that protects panels and machines. However, nuisance trips and diagnostic challenges can slow production and obscure fault sources. This unit is HACR Rated, UL Listed, and CSA Certified, supporting reliable motor protection and safety compliance in demanding environments. With plug-on mounting, three poles, and a 60 A rating for 120/208/240 V systems, it delivers robust protection while maximizing panel space and simplifying maintenance, making it a practical choice for industrial power distribution and machine control.
Product Information
Extended Description
QPHW3060HS Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,60 A,22 kAIC,Three-pole,120/208/240 V,Thermal-magnetic,Q32,QPHW,Non-Interchangeable,120/208/240 V
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3060HS
UPC
782116123124
Product Length/Depth
3.8 in
Product Height
4.9 in
Product Width
3.2 in
Product Weight
1.15 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
CSA Certified UL Listed
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Shunt trip
120-240V
Type
Industrial circuit breaker
Amperage Rating
60 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
120V or 120/240V
Options
Non-Interchangeable
Quantity
32
Special features
120/208/240 Vac shunt trip
Feature → Business Impact → Application: The thermal-magnetic design provides precise overcurrent protection with fast response, reducing equipment wear and unplanned downtime in manufacturing lines. Application: Ideal for panel boards and machine controls where reliable interruption at high fault currents is critical. Feature → Business Impact → Application: Three-pole, plug-on mounting simplifies installation and minimizes panel space consumption, enabling faster commissioning in control panels and switchgear assemblies. Application: Works well in compact enclosures with limited wiring space, improving installation efficiency. Feature → Business Impact → Application: Shunt trip capable at 120-240 V enhances safety by enabling remote disconnection during emergencies, reducing risk to personnel and assets. Application: Suitable for safety-critical lines and interlocks in automation cells. Feature → Business Impact → Application: Certifications and non-interchangeable design reduce compliance risk and accidental substitution, supporting NEC motor-protection requirements. Application: Essential for industrial facilities with strict regulatory standards and quality assurance programs. Feature → Business Impact → Application: 60 A, 22 kAIC, T268 trip type offer predictable protection for motors and feeders, improving reliability and reducing maintenance costs. Application: Suitable for 120/208/240 V distribution networks in manufacturing environments. Feature → Business Impact → Application: Compact footprint (3.8 in L × 4.9 in H × 3.2 in W) and 1.15 lb weight streamline inventory and logistics for field installs and service teams. Application: Ideal for low-profile panels and retrofit jobs in control cabinets.
Get a Quick Quote for a Eaton QPHW3060HS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3060HS?
Enquire Now
FAQs
The QPHW3060HS uses a plug-on mounting approach suitable for three-pole configurations in standard panel enclosures. Ensure compatible bus spacing and mounting rails, confirm clearance for the 3.2 in width and 4.9 in height, and follow manufacturer torque recommendations for terminals. This design minimizes wiring complexity and speeds up installation while maintaining robust electrical isolation.
The unit features a 60 A amperage rating with a 22 kAIC interrupt capacity and a T268 trip type. As a thermal-magnetic breaker, it provides reliable short-circuit protection and nuisance-trip resistance, enabling predictable performance for motor and feeder circuits in industrial panels.
Yes. The QPHW3060HS is designed for 120 V and 120/208/240 V systems, offering three-pole operation and a 60 A rating. It is well-suited for industrial distribution and machine control panels requiring dependable protection against overcurrent and short-circuit events.
The breaker is HACR Rated and UL Listed with CSA Certification, ensuring compatibility with motor loads and compliance with major safety standards. These certifications support code compliance (NEC/CEC), insurer confidence, and reduced risk during audits and inspections in industrial facilities.
With a 1-year warranty, proven 22 kAIC protection, and non-interchangeable design, the QPHW3060HS minimizes retrofit risk and maintenance rework. Its reliable performance reduces unplanned downtime, improves machine availability, and lowers total cost of ownership in automated environments.
