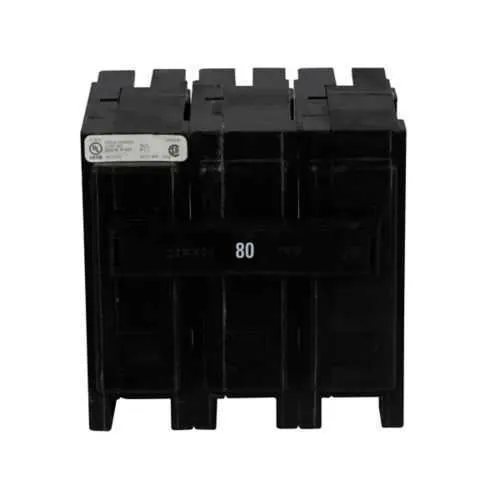

Eaton QPHW3080H Industrial Circuit Breaker - UL Listed
Part Number: QPHW3080H
Quick Summary
The Eaton QPHW3080H is an industrial circuit breaker used to protect 3-phase power in manufacturing and automation panels. Engineers often struggle with nuisance trips and slow responses to overloads, leading to unintended downtime. UL Listed and CSA Certified protections back global compliance, while HACR-rated performance ensures safe operation with heating and cooling equipment. With an 80 A rating, a 22 kAIC interrupt capability, and 240 V nominal voltage, this unit supports reliable fault isolation in demanding environments. The plug-on three-pole design simplifies installation and, together with fixed terminals, delivers a secure connection in tight control panels. This combination provides predictable protection, helping facilities maintain throughput and regulatory compliance.
Product Information
Extended Description
QPHW3080H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,80 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3080H
UPC
786679152041
Product Length/Depth
3.9 in
Product Height
4.7 in
Product Width
3.2 in
Product Weight
1.2 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
80 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Feature: 80 A amperage rating with a 22 kAIC interrupt capability at 240 V. Business Impact: Delivers dependable fault isolation, protecting motors, drives, and control circuits while minimizing unplanned downtime. Application: Fits main distribution panels in manufacturing lines and process automation environments. Feature: Thermal-magnetic trip with Trip Type T268. Business Impact: Balances fast short circuit clearance with nuisance trip resistance, improving system reliability and reducing maintenance visits. Application: Ideal for mixed loads including conveyors, pumps, and automation drives. Feature: Three-pole plug-on mounting with fixed terminals. Business Impact: Speeds wiring and ensures secure, vibration resistant connections, cutting installation time and risk of loose terminations. Application: Suited for 3-phase control panels and new buildouts. Feature: HACR rated with UL Listed and CSA Certified. Business Impact: Meets electrical safety standards across markets, simplifying compliance documentation and audits. Application: Useful in HVAC control panels and general industrial electricity distribution. Feature: Compact footprint with dimensions 3.9 in L × 4.7 in H × 3.2 in W and a weight of 1.2 lb. Business Impact: Enables denser panel layouts and easier retrofits without sacrificing protection. Application: Retrofit projects in space constrained electrical cabinets. Feature: Non-Interchangeable option and fixed terminals. Business Impact: Preserves equipment protection characteristics and minimizes risk of incompatible replacement devices. Application: Critical installations where specified protection is required.
