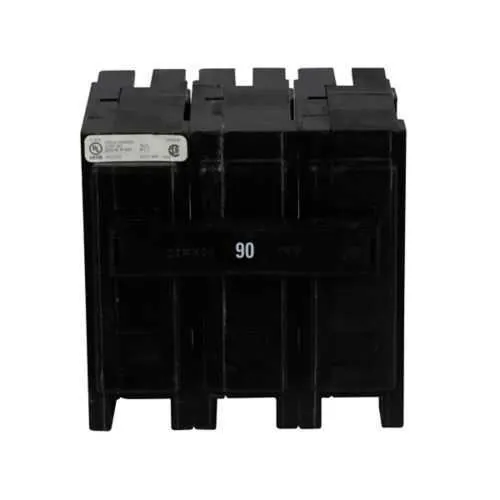

Eaton QPHW3090H Industrial Circuit Breaker - 22 kAIC
Part Number: QPHW3090H
Quick Summary
Eaton QPHW3090H industrial circuit breaker protects panels and industrial feeders in demanding electrical systems. Engineers often contend with nuisance trips, long replacement lead times, and challenging panel layouts that slow production. This unit is UL Listed, CSA Certified, and HACR rated, ensuring safe, code-compliant operation across commercial and industrial environments. The fixed, plug-on three-pole design simplifies panel integration, while the 90 A rating and 22 kAIC interrupt capability reduce downtime and maintenance costs in manufacturing lines. With a one-year warranty and compatibility with standard Eaton accessories and busbars, it delivers reliable protection in compact footprints.
Product Information
Extended Description
QPHW3090H Eaton: Eaton Quicklag Type QPH Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,90 A,22 kAIC,Three-pole,240 V,Thermal-magnetic,Q32,QPHW,Fixed,Non-Interchangeable
Product Name
Eaton Quicklag thermal magnetic circuit breaker
Catalog Number
QPHW3090H
UPC
786679387344
Product Length/Depth
3.8 in
Product Height
4.7 in
Product Width
3.2 in
Product Weight
1.2 lb
Warranty
1 year
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Circuit breaker type
QPHW
Mounting Method
Plug-on
Number of poles
Three-pole
Terminals
Fixed
Type
Industrial circuit breaker
Amperage Rating
90 A
Interrupt rating
22 kAIC
Trip Type
T268
Voltage rating
240 V - 240 V
Options
Non-Interchangeable
Quantity
32
Feature 1: 90 A, three-pole, plug-on mounting with fixed terminals. Business impact: precise electrical protection for motor circuits and feeders minimizes nuisance trips and simplifies installation. Application: panelboards, MCCs, and machine control panels in manufacturing and process facilities. Solution to objection: compact footprint fits tight spaces without sacrificing performance. Real-world context: enables fast pre-wiring and straightforward retrofits in existing enclosures. Feature 2: 22 kAIC interrupt rating at 240 V. Business impact: robust short-circuit withstand capability reduces arc-flash risk and protects expensive drives and sensors. Application: high-fault-current environments such as CNC, stamping, and packaging lines. Long-tail keywords: motor control protection, fault current rating, arc-flash mitigation. Feature 3: Certifications and compliance — UL Listed, CSA Certified, HACR rated. Business impact: streamlines regulatory approvals and safety audits, lowering project risk. Application: industrial facilities adhering to NEC/CEC standards. Secondary keywords: equipment protection, compliance-ready panels. Feature 4: Fixed terminals and plug-on mounting. Business impact: faster commissioning, easier field upgrades, and reliable connections with reduced wiring errors. Application: new builds and retrofit projects in control panels and machine enclosures. Feature 5: Compact dimensions and weight — 3.8 in depth, 4.7 in height, 3.2 in width, 1.2 lb. Business impact: space-efficient protection devices enable denser panel layouts and reduced enclosure costs. Application: compact standalone panels, integrated MCCs, and space-constrained electrical rooms. Warranty: 1 year supports predictable maintenance budgeting.
Get a Quick Quote for a Eaton QPHW3090H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QPHW3090H?
Enquire Now
FAQs
The QPHW3090H uses a plug-on mounting with fixed terminals for three-pole installation. Align the unit with the bus structure, secure it firmly, and connect conductors to the fixed terminals. Its compact 3.8 in depth and 3.2 in width help maximize panel density while ensuring proper torque and conductor termination per standard practices.
The 22 kAIC interrupt rating indicates the breaker can safely interrupt high fault currents typical of motor starts and short circuits. This reduces the risk of arc flash, protects downstream equipment, and helps maintain uninterrupted production in motors, drives, and conveyors within manufacturing environments.
Yes. The unit is UL Listed and CSA Certified and HACR rated. This combination supports NEC/CEC compliance, enables safer operation in HVAC and general industrial equipment, and simplifies regulatory audits for facilities that require certified protection devices in control panels.
The breaker measures 3.8 in in depth, 4.7 in in height, and 3.2 in in width, weighing 1.2 lb. It features a fixed-terminal design with plug-on mounting, ideal for compact enclosures and retrofit projects where space optimization and secure electrical connections are priorities.
The QPHW3090H reduces downtime through reliable trip protection, minimizes maintenance costs with a durable thermal-magnetic mechanism, and simplifies installation with plug-on mounting. Coupled with a 1-year warranty and readily available spare parts, it supports predictable budgeting and lower total cost of ownership in industrial environments.
