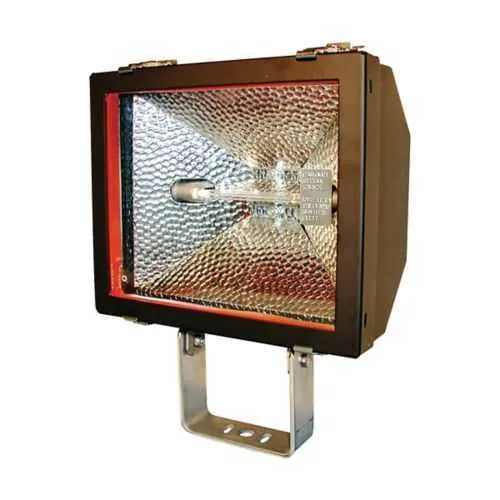

Eaton QS1603 Floodlight - IP66 Rated Protection
Part Number: QS1603
Quick Summary
The Eaton QS1603 floodlight delivers rugged, 300W quartz-halogen illumination for industrial outdoor locations. Maintenance teams often contend with corrosion, dust ingress, and frequent bulb replacements in washdown or harsh environments. This luminaire meets IP66 ingress protection and NEC/CEC standards, with ordinary/non-hazardous location suitability to simplify compliance. Crafted from 304 stainless steel and featuring a tempered glass lens, it withstands moisture and contaminants. A trunnion mount and 6x6 optical distribution enable flexible aiming and evenly lit areas across yards, docks, and facilities, helping improve safety and throughput while minimizing downtime.
Product Information
Extended Description
QS1603 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight, Quartz halogen lamp, Tempered glass lens, 304 stainless steel, Trunnion mount, 6x6 optical distribution, 120 Vac, 300W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight
Catalog Number
QS1603
UPC
662276414952
Product Length/Depth
9.75 in
Product Height
12.75 in
Product Width
5.88 in
Product Weight
10 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
304 stainless steel
Wattage
300W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Eaton Crouse-Hinds QS1603 3D drawing
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QS1603
Quartz-halogen 300W lamp delivers high-intensity, reliable illumination across wide areas, reducing shadows that can slow operations. The bright, consistent output supports safer forklift paths and clearer visibility in loading zones, improving throughput for warehousing and outdoor facilities. 304 stainless steel construction provides excellent corrosion resistance, extending service life in washdown and marine-adjacent environments while lowering maintenance costs. IP66 ingress protection guards against dust and water jets, enabling dependable operation in outdoor and damp locations and reducing unplanned outages. The tempered glass lens offers robust impact resistance and long-term clarity, minimizing lens replacements in high-traffic areas. Trunnion mounting with 6x6 optical distribution delivers flexible aiming and even coverage, simplifying retrofit and new-install planning while ensuring compliance with site lighting standards. The 120 VAC, 300W design aligns with standard electrical infrastructure, reducing wiring complexity and accelerating commissioning. With NEC/CEC compliance and Ordinary/Non-Hazardous location suitability, the QS1603 streamlines regulatory approvals and minimizes risk during facility upgrades.
Get a Quick Quote for a Eaton QS1603
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QS1603?
Enquire Now
FAQs
QS1603 uses a robust trunnion mounting system that lets you adjust aiming for optimal coverage. Installers should account for a 9.75 inch depth, 12.75 inch height, and 5.88 inch width, with the unit weighing 10 lb for straightforward handling during retrofit. Refer to Installation Sheets LBL1216 for step-by-step mounting guidance and hardware requirements.
The QS1603 employs a 300W quartz-halogen lamp operating at 120 VAC, delivering strong, broad-area illumination. It features a 6x6 optical distribution, tempered glass lens, and 304 stainless steel housing. Ingress protection is IP66, with ordinary/non-hazardous location suitability and a trunnion mounting method for flexible installation.
Yes, the QS1603 is designed for washdown and marine-adjacent environments thanks to its 304 stainless steel construction and IP66 ingress protection. This combination provides corrosion resistance and reliable sealing in damp conditions. It is intended for Ordinary/Non-Hazardous locations, so verify non-hazardous area suitability for your exact exposure.
QS1603 complies with NEC/CEC electrical standards and is suitable for Ordinary/Non-Hazardous Locations. IP66 ingress protection ensures resistance to dust and powerful water jets, while the 304 stainless steel and tempered glass lens contribute to durability and safety in industrial outdoor lighting applications.
Durable 304 stainless steel and a tempered glass lens reduce corrosion and lens replacements, lowering maintenance costs over the lifecycle. The quartz-halogen lamp provides high-intensity illumination and quick restart, improving safety and productivity in yards and docks. Typical ROI benefits come from reduced downtime and extended intervals between lamp replacements in demanding environments.
