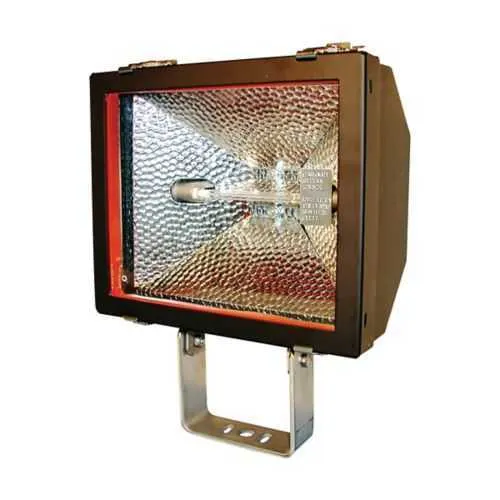

Eaton QS1605 Floodlight - Quartz Halogen, IP66
Part Number: QS1605
Quick Summary
Eaton QS1605 floodlight is a rugged, high-output lighting solution designed for demanding outdoor and industrial applications. Engineers often contend with unreliable illumination, corrosion risk, and downtime during maintenance in harsh environments. The unit delivers IP66 ingress protection, NEC/CEC compliance, and ordinary/non-hazardous area classification to support safety and regulatory alignment. Built to endure coastal, marine, and outdoor industrial sites, it pairs a durable 304 stainless-steel housing with a tempered-glass lens, while a robust 500 W quartz-halogen lamp provides fast start-up and dependable output for industrial lighting and marine lighting scenarios.
Product Information
Extended Description
QS1605 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight, Quartz halogen lamp, Tempered glass lens, 304 stainless steel, Trunnion mount, 6x6 optical distribution, 120 Vac, 500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight
Catalog Number
QS1605
UPC
662276414976
Product Length/Depth
9.75 in
Product Height
12.75 in
Product Width
5.88 in
Product Weight
10 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
304 stainless steel
Wattage
500W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Eaton Crouse-Hinds QS1605 3D drawing
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QS1605
Quartz halogen lighting in the QS1605 delivers immediate, high-intensity output with superior color rendering, improving task visibility and operator safety in outdoor work zones. Business impact: faster lighting readiness reduces downtime and accelerates ramp-up in docks, yards, and plant perimeters. Application: ideal for industrial floodlighting where quick illumination and reliability are critical, such as loading docks and outdoor substations. The 304 stainless steel housing and tempered glass lens provide corrosion resistance in coastal or washdown environments, lowering maintenance costs and extending service life. Application: marine facilities, refineries, and offshore facilities benefit from reduced maintenance cycles. IP66-rated protection ensures dependable operation in rain, dust, and wet locations, supporting compliance and uptime during adverse weather. Application: outdoor yards, parking areas, and exposed outdoor equipment. Trunnion mounting enables flexible aiming and quick installation, reducing commissioning time and enabling precise light distribution. Application: adjustable lighting for variable terrains and facility layouts. The 6x6 optical distribution concentrates light for broad area coverage with fewer fixtures, cutting total installed cost while delivering uniform illumination. Application: large outdoor spaces and perimeters. The combination of 120 VAC operation and a 500 W rated lamp offers compatibility with standard power systems and robust performance in retrofit projects. Application: retrofit in existing facilities without specialized power infrastructure.
Get a Quick Quote for a Eaton QS1605
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QS1605?
Enquire Now
FAQs
The QS1605 uses a robust trunnion mounting arrangement that enables flexible aiming and straightforward installation. This design supports precise flood lighting for dockyards, outdoor yards, and perimeters, reducing fixture repositioning during commissioning and maintenance. The trunnion method also simplifies retrofits by accommodating existing mounting brackets and overhead supports common in industrial facilities.
QS1605 is IP66 rated, providing ingress protection against dust and high-pressure water jets, suitable for outdoor and washdown environments. It complies with NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, making it appropriate for general industrial, marine, and outdoor applications where safety and code conformance are essential.
In marine and coastal facilities, the QS1605 demands reliability and corrosion resistance. Its 304 stainless steel housing and tempered-glass lens resist salt spray and moisture ingress, while a quartz-halogen lamp provides rapid start-up and high-intensity illumination. This combination minimizes maintenance downtime and extends service life in challenging environments.
The QS1605 operates at 120 VAC and is rated at 500 W, aligning with common utility supplies and retrofit projects. Its 6x6 optical distribution yields broad area coverage, and the unit’s design supports straightforward integration into existing lighting circuits, reducing wiring complexity and enabling reliable, field-ready performance in industrial settings.
Because QS1605 uses a quartz-halogen lamp, expect periodic lamp replacement as part of routine maintenance. The durable 304 stainless-steel housing and tempered-glass lens reduce corrosion and seal failures, lowering downtime and routine upkeep. For lifecycle planning, pair the fixture with standard spare lamps and ensure proper cleaning of the tempered lens to maintain maximum light output over time.
