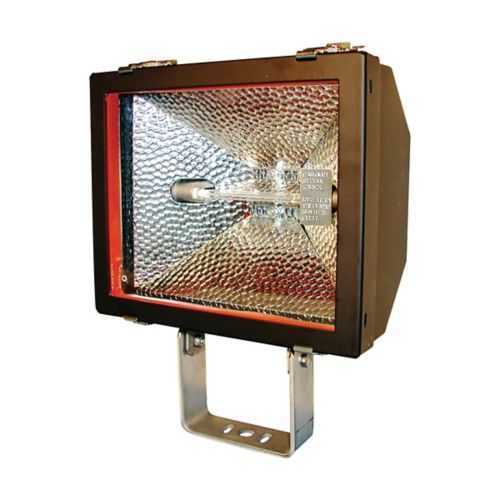

Eaton QS1610 Floodlight - 1000W Quartz Halogen IP66
Part Number: QS1610
Quick Summary
The Eaton QS1610 floodlight is a high-output lighting solution for industrial facilities requiring reliable illumination in ordinary locations. It addresses common pain points like corrosion, frequent maintenance, and challenging outdoor exposure by using 304 stainless steel, tempered glass, and a robust trunnion mount for flexible alignment. With NEC/CEC compliance and IP66 ingress protection, the QS1610 helps maintain code compliance while reducing downtime and safety risks. The quartz-halogen lamp delivers 1000W of bright, focused light through a 6x6 optical distribution, ideal for docks, warehouses, and outdoor yards. The design also supports straightforward installation and spare-part compatibility within the Pauluhn Achiever line, enhancing total cost of ownership for maintenance teams and procurement officers.
Product Information
Extended Description
QS1610 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight, Quartz halogen lamp, Tempered glass lens, 304 stainless steel, Trunnion mount, 6x6 optical distribution, 120 Vac, 1000W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight
Catalog Number
QS1610
UPC
662276415027
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
18 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
304 stainless steel
Wattage
1000W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QS1610
Feature: 304 stainless steel construction and tempered glass lens → Business impact: superior corrosion resistance and long service life in wet/dusty environments → Application: outdoor industrial facilities, docks, and marine-adjacent areas. The QS1610’s durable shell reduces replacement cycles and maintenance costs while preserving light quality over time. Feature: Quartz-halogen lamp at 1000W → Business impact: high lumen output with rapid full brightness and reliable illumination for large-area coverage → Application: yard, warehouse perimeter, and loading zones. Feature: IP66 ingress protection and Ordinary/Non-Hazardous Location rating → Business impact: robust protection against dust and water ingress; simplifies code compliance and reduces risk in non-hazardous environments → Application: non-hazardous industrial sites requiring dependable outdoor lighting. Feature: 6x6 optical distribution with tempered glass lens → Business impact: uniform, broad-area illumination with minimal glare → Application: docks, production floors, and outdoor yards. Feature: Trunnion mounting for flexible aiming → Business impact: easy installation and precise beam direction; reduces commissioning time and alignment effort → Application: overhead mounting and adjustable perimeter lighting. These elements together provide compatibility with Pauluhn Achiever components and standard NEC/CEC requirements, delivering predictable lifecycle performance and lower total cost of ownership for facilities teams.
Get a Quick Quote for a Eaton QS1610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QS1610?
Enquire Now
FAQs
QS1610 uses a robust trunnion mounting system that enables precise azimuth and tilt adjustments for flexible beam direction. It is designed for overhead, ceiling, or pole-mounted installations and pairs well with Pauluhn Achiever components. Ensure NEC/CEC wiring practices are followed and use a 120 VAC supply with appropriate hardware to support the 18 lb fixture and its mounting pattern.
The QS1610 employs a quartz-halogen lamp at 1000W with 120 VAC operation. It features a 6x6 optical distribution, tempered glass lens, and 304 stainless steel housing. The unit is IP66 rated and intended for ordinary/non-hazardous locations, offering reliable, high-intensity illumination for large outdoor or semi-enclosed spaces.
QS1610 is specified for ordinary/non-hazardous locations with IP66 protection. It is not rated for hazardous (explosive) atmospheres. For marine or harsh-duty environments, verify availability of marine-grade variants or consult Eaton for a variant that meets additional certifications and environmental requirements beyond the QS1610’s baseline rating.
QS1610 adheres to NEC/CEC standards and is listed for ordinary/non-hazardous locations. It carries IP66 ingress protection, providing robust dust and water resistance suitable for outdoor use. These certifications support compliance in general industrial facilities and ensure safer, code-aligned installations.
The QS1610 combines 304 stainless steel construction, tempered glass lens, and a durable quartz-halogen 1000W lamp to extend service life and reduce replacement frequency. Its robust IP66 rating and straightforward trunnion mounting speed up installation and maintenance, lowering downtime and inventory costs while delivering consistent, high-quality illumination across large outdoor areas.
