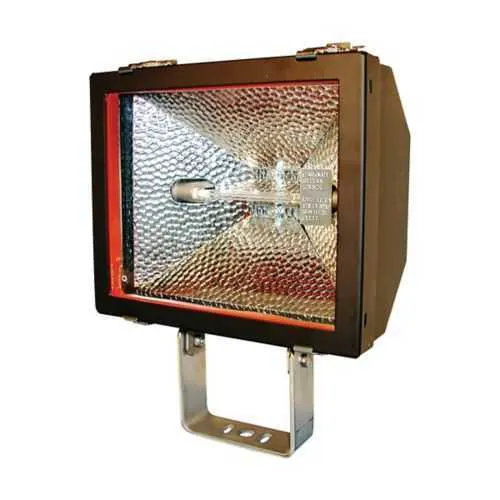

Eaton QS1615 Floodlight - 304 Stainless IP66

Part Number: QS1615
Manufacturer
Eaton
Part number
QS1615

Quick Summary

The Eaton QS1615 floodlight delivers rugged, high-output illumination for industrial facilities. Maintenance downtime and corrosion threats erode productivity in outdoor and washdown environments. It carries IP66 protection and NEC/CEC compliance with a 304 stainless steel enclosure, so it withstands washdowns, moisture, and vibration. With a 6x6 optical distribution and a versatile trunnion mounting system, it installs quickly and provides reliable coverage for dockyards, plants, and outdoor work zones. This durable, code-compliant outdoor lighting solution helps facilities reduce maintenance costs and improve safety, delivering long-term value for industrial lighting projects.

Product Information

Extended Description

QS1615 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight, Quartz halogen lamp, Tempered glass lens, 304 stainless steel, Trunnion mount, 6x6 optical distribution, 120 Vac, 1500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight
Catalog Number
QS1615
UPC
662276415065
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
18.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
304 stainless steel
Wattage
1 x 25W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
120 Vac
Lens material
Tempered glass
Feature → Business Impact → Application: 304 stainless steel enclosure with IP66 protection delivers superior corrosion resistance and washdown durability, reducing replacement cycles and maintenance costs in outdoor and marine-adjacent facilities. This translates to lower total cost of ownership for industrial outdoor lighting and reliable performance in harsh environments. Application: outdoor yards, docks, and production perimeters where exposure to water, dust, and impact is common. Feature → Business Impact → Application: Quartz halogen lamp at 120 Vac / 1500W provides high-intensity illumination with fast startup and robust brightness, improving visibility for operators and equipment safety. Operational efficiency rises as maintenance windows shrink and light quality remains consistent across shifts. Application: loading docks, material handling corridors, and outdoor work zones requiring bright, immediate light. Feature → Business Impact → Application: 6x6 optical distribution ensures broad, uniform coverage with fewer hot spots, reducing the need for multiple fixtures and lowering installed lighting costs. This also supports better area surveillance and workflow clarity. Application: large outdoor areas, warehouses exterior facades, and plant perimeters. Feature → Business Impact → Application: Trunnion mounting offers flexible aiming and straightforward installation, enabling rapid retrofit or new-build integration while minimizing alignment errors. This reduces on-site labor time and speeds up commissioning. Application: retrofit projects and new industrial installations with demanding coverage requirements. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous location rating provide regulatory assurance and safer operation, helping facilities meet code requirements and pass audits. Application: general industry, manufacturing floors adjacent exterior spaces, and non-hazardous outdoor environments, where reliable compliance is mandatory. Feature → Business Impact → Application: Durable construction and documented installation resources (datasheets, catalog pages) support procurement efficiency and maintenance planning, delivering consistency across sites. Application: procurement teams and maintenance planners seeking repeatable, code-compliant lighting solutions.

Get a Quick Quote for a Eaton QS1615

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton QS1615? Enquire Now

FAQs

QS1615 uses a trunnion mounting system for adjustable aiming and straightforward installation. Refer to the IF LBL1216 Pauluhn Achiever installation sheet for step-by-step guidance, wiring considerations, and mounting torque. The fixture’s 14.25 in length, 14.75 in height, and 7.38 in width inform mounting clearance and alignment during retrofit projects.
The QS1615 is rated IP66 for ingress protection and complies with NEC/CEC standards, suitable for Ordinary/Non-Hazardous locations. This combination supports washdown durability and code-compliant performance in outdoor industrial environments.
The QS1615 is specified for Ordinary/Non-Hazardous locations. It is not intended for hazardous or explosive environments. For marine or more demanding environments, consult Eaton’s marine/achiever family documentation to identify appropriate alternatives.
Key specs include a quartz halogen lamp at 120 Vac and 1500W, 6x6 optical distribution, tempered glass lens, and a 304 stainless steel enclosure. The unit uses a trunnion mounting method and weighs 18.3 lb, with dimensions of 14.25 in length, 14.75 in height, and 7.38 in width.
Available documents include the Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page, IF LBL1216 installation sheet, and the Eaton Specification Sheet for QS1615. These resources support spec verification, installation guidance, and procurement workflows.
