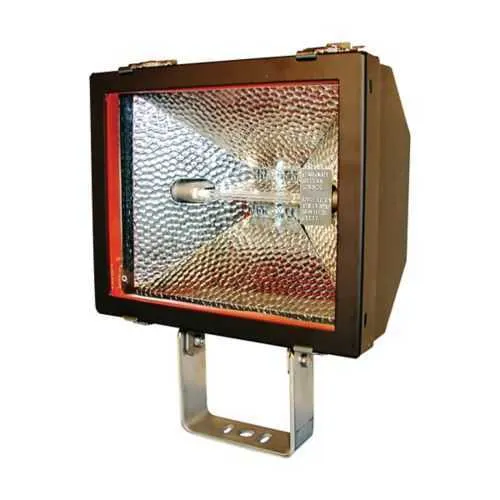

Eaton QS1615-208 Floodlight - IP66 Certified Elite
Part Number: QS1615-208
Quick Summary
The QS1615-208 floodlight from Eaton delivers rugged, high-output illumination for industrial outdoor and non-hazardous indoor areas. This design helps mitigate common pain points around reliability and maintenance in harsh environments, where dust, moisture, and vibration threaten visibility. With IP66 ingress protection, NEC/CEC compliance, and Ordinary/Non-Hazardous Locations classification, it meets essential reliability and regulatory expectations. Its corrosion-resistant 304 stainless steel construction and tempered glass lens support long service life, while 208 V operation and 6x6 optical distribution boost coverage and efficiency, delivering consistent performance across demanding facilities.
Product Information
Extended Description
QS1615-208 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight, Quartz halogen lamp, Tempered glass lens, 304 stainless steel, Trunnion mount, 6x6 optical distribution, 208 Vac, 1500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight
Catalog Number
QS1615-208
UPC
662276415072
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
304 stainless steel
Wattage
1 x 25W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
208 Vac
Lens material
Tempered glass
Crouse-Hinds Pauluhn Achiever Marine Halogen Floodlights catalog page
IF LBL1216 - Pauluhn Achiever Marine Floodlights
Eaton Specification Sheet - QS1615-208
304 stainless steel housing with a tempered glass lens delivers superior corrosion resistance, extending service life in marine, outdoor, and wash-down environments. This translates to lower replacement costs and reduced maintenance cycles for offshore platforms, docks, and chemical plants. The quartz halogen lamp rated at 25 W on 208 VAC provides stable, reliable lighting with quick start, enabling safer maintenance and faster response times in busy industrial settings. Trunnion mounting allows flexible aiming, simplifying installation and adjustments in constrained spaces such as control rooms, substations, and outdoor enclosures. The 6x6 optical distribution delivers broad, even coverage with fewer fixtures, reducing total installed cost and improving task illumination for warehouses, loading docks, and processing lines. IP66 protection plus NEC/CEC compliance minimizes regulatory risk while ensuring dependable operation in Ordinary/Non-Hazardous Locations, streamlining procurement and long-term budgeting. With dimensions of 14.25 in length, 14.75 in height, and 7.38 in width and a 25 lb weight, the QS1615-208 integrates smoothly into Pauluhn Achiever floodlight installations, delivering reliable performance with straightforward maintenance and replacement.
Get a Quick Quote for a Eaton QS1615-208
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton QS1615-208?
Enquire Now
FAQs
The QS1615-208 floodlight uses a quartz halogen lamp at 25 W powered by 208 VAC. It features a 6x6 optical distribution for broad coverage, a tempered glass lens, and a 304 stainless steel body. The unit carries IP66 ingress protection and NEC/CEC compliance for Ordinary/Non-Hazardous Locations, supporting reliable operation in harsh environments and simplifying procurement for industrial projects.
Yes. Built with 304 stainless steel and a tempered glass lens, the fixture offers excellent corrosion resistance suitable for marine, offshore, and wash-down environments. The IP66 rating protects against dust and strong jets of water, while the Pauluhn Achiever lineage ensures robust performance in demanding industrial settings with minimal maintenance.
Installation uses a straightforward trunnion mounting scheme that allows tilting and aiming to match site geometry. With standard dimensions of 14.25 in length, 14.75 in height, and 7.38 in width and a weight of about 25 lb, it fits typical mounting brackets and supports quick alignment during commissioning, reducing on-site labor and downtime.
The QS1615-208 meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. It carries IP66 ingress protection for dust and water resistance, and is designed for applications requiring reliable performance in non-hazardous industrial environments, helping with regulatory compliance and simplifying procurement for standard facilities.
The combination of a durable 304 stainless steel body, tempered glass lens, and IP66 rating delivers long service life with reduced replacement intervals, lowering maintenance costs. The 25 W quartz halogen lamp on 208 VAC provides efficient illumination with quick start and broad coverage, enabling safer operations, faster task completion, and lower total installed cost in warehouses, docks, and outdoor process areas.
