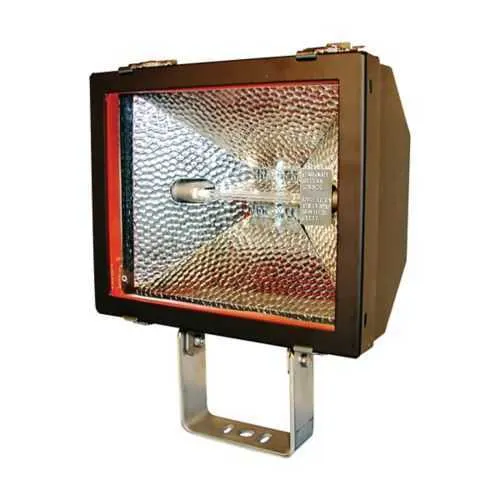

Eaton QS1615-220 Floodlight - IP66 Rated, 220 VAC, 304 SS

Part Number: QS1615-220
Manufacturer
Eaton
Part number
QS1615-220

Quick Summary

The Eaton QS1615-220 floodlight provides robust quartz-halogen illumination for industrial, outdoor, and non-hazardous locations. Maintenance teams often struggle with corrosion, lens deterioration, and fixtures that are hard to mount in tight spaces. Built to meet NEC/CEC standards, IP66 ingress protection, and 304 stainless steel construction, this fixture resists weather, chemicals, and harsh washdowns. With a trunnion mount and tempered glass lens, it integrates easily with 220 VAC power systems, delivering reliable performance and lower lifecycle cost. Our clients report reduced maintenance cycles and faster retrofit times thanks to standardized mounting and a durable housing, suitable for manufacturing floors and outdoor yards.

Product Information

Extended Description

QS1615-220 Eaton: Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight, Quartz halogen lamp, Tempered glass lens, 304 stainless steel, Trunnion mount, 6x6 optical distribution, 220 Vac, 1500W
Product Name
Eaton Crouse-Hinds series Pauluhn Achiever QS floodlight
Catalog Number
QS1615-220
UPC
662276415089
Product Length/Depth
14.25 in
Product Height
14.75 in
Product Width
7.38 in
Product Weight
18 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Lamp type
Quartz halogen
Material
304 stainless steel
Wattage
1 x 25W
Mounting Method
Trunnion
Optical distribution
6x6
Voltage rating
220 Vac
Lens material
Tempered glass
Feature → Business Impact → Application: The 304 stainless steel housing delivers superior corrosion resistance, reducing maintenance frequency and extending service life in outdoor and washdown environments. This directly lowers lifecycle costs while keeping downtime to a minimum in yard lighting and exterior areas. Feature → Business Impact → Application: IP66 ingress protection safeguards against dust and powerful water jets, ensuring consistent illumination in wet locations, loading docks, and exposed exterior zones. Feature → Business Impact → Application: Quartz halogen lamp with 220 VAC compatibility provides immediate full brightness and reliable color rendering for critical tasks, enabling faster decision-making on the plant floor and in outdoor workspaces. Feature → Business Impact → Application: 6x6 optical distribution delivers uniform flood coverage, reducing hot spots and improving safety in large areas such as service bays, walkways, and staging areas. Feature → Business Impact → Application: Trunnion mounting and tempered glass lens simplify installation and maintenance, allowing technicians to adjust aim quickly and protect the lamp from impacts in tight mounting quads. The fixture’s 25W lamp, combined with durable materials, supports predictable performance in demanding industrial environments while minimizing maintenance and replacement costs.

Get a Quick Quote for a Eaton QS1615-220

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton QS1615-220? Enquire Now

FAQs

Install using the included trunnion mounting hardware on a level surface or compatible mounting bracket. Ensure the area provides 220 VAC power and follow standard electrical codes for outdoor or industrial lighting, including weather-resistance considerations and secure wiring to prevent water ingress.
The unit operates at 220 VAC with a quartz-halogen lamp rated at 1 x 25W (per the product data). It uses a 6x6 optical distribution for wide-area coverage and is designed for reliable operation in ordinary/non-hazardous locations.
No. This luminaire is specified for Ordinary/Non-Hazardous Locations and does not carry approvals for hazardous or marine environments. For such applications, consider a model with appropriate certifications and IP rating enhancements.
The 304 stainless steel body offers superior corrosion resistance, reducing maintenance needs in outdoor or washdown environments and extending service life, which lowers lifecycle costs and downtime for routine lighting tasks.
Downloads include the Eaton Specification Sheet for QS1615-220, the LBL1216 installation sheet, and the Crouse-Hinds Pauluhn Achiever catalog page. Access links: QS1615-220 spec sheet (https://www.eaton.com/us/en-us/skuPage.QS1615-220.pdf), LBL1216 installation sheet (https://www.eaton.com/content/dam/eaton/products/lighting-and-controls/crouse-hinds/instruction-sheets/crouse-hinds-iflbl1216-instruction-sheet.pdf), catalog page (https://www.eaton.com/content/dam/eaton/products/lighting-and-controls/crouse-hinds/catalog-pages/crouse-hinds-achiever-marine-catalog-page.pdf).
