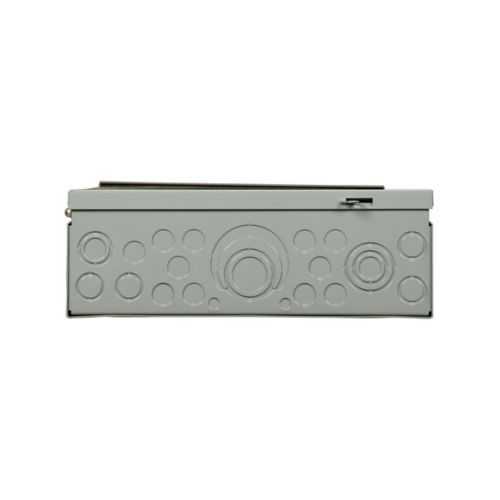

Eaton R3CPL130 Main Lug Loadcenter - 125A NEMA 3R
Part Number: R3CPL130
Quick Summary
The Eaton R3CPL130 main lug loadcenter is a rugged outdoor distribution solution for industrial power applications. Site teams often battle weatherproofing, expansion planning, and compliance when choosing a power distribution enclosure. This unit is CSA certified and rated for outdoor use with a NEMA 3R enclosure, supporting three-phase operation at 120/208 V and a 35 kAIC interrupt rating for enhanced fault protection. By delivering a scalable 42-space arrangement in a compact footprint, it enables cost-effective expansion, streamlined wiring, and reliable performance across harsh environments. For contractors and facilities managers, it also complements Eaton BR distribution strategies while enabling efficient procurement and installation workflows.
Product Information
Extended Description
R3CPL130 Eaton: Eaton BR main lug loadcenter,Non-combination, main lug only,125 A,Outdoor,NEMA 3R,30 Spaces,Three-phase,120/208V
Product Name
Eaton BR main lug loadcenter
Catalog Number
R3CPL130
UPC
622588101292
Product Length/Depth
14.5 in
Product Height
38.75 in
Product Width
5 in
Product Weight
40 lb
Certifications
Contact Manufacturer CSA Std. C22.2 No. 29
Type
Non-combination, main lug only
Amperage Rating
125 A
Bus material
Copper
Cover
Outdoor
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Voltage rating
120/208 V
Enclosure
NEMA 3R
Interrupt rating
35 kAICNEMA 3R
Feature: Non-combination, main lug only design. Business impact: simplifies configuration, reduces upfront component count, and lowers installation complexity. Application: suitable for new or retrofit outdoor projects where downstream breakers are selected separately. The R3CPL130's main lug approach supports flexible branch-circuit organization across 42 spaces. Feature: Outdoor NEMA 3R enclosure with copper bus. Business impact: delivers weatherproof protection and superior electrical conductivity, reducing maintenance cycles and improving reliability in exposed locations. Application: ideal for outdoor electrical infrastructure at manufacturing facilities and campuses. Feature: Three-phase, 120/208 V operation with 125 A rating. Business impact: supports balanced distribution for motors and equipment while maintaining voltage integrity and fault tolerance. Application: common in industrial automation and commercial power rooms seeking robust three-phase distribution. Feature: 42 spaces and 42 circuits. Business impact: facilitates future expansion without replacing the panel, preserving capital while enabling scalability. Application: planning for future growth in growing facilities. Feature: 35 kAIC interrupt rating. Business impact: enhances protection against high-energy faults, reducing risk of equipment damage and downtime. Application: critical in environments with higher fault currents or dense motor loads. Feature: Copper bus material. Business impact: improves conductivity and reduces energy losses, contributing to overall system efficiency. Application: preferred in high-performance distribution panels for long-term operating efficiency. Feature: CSA certification and weather-resistant specification. Business impact: aligns with regulatory compliance and reduces project risk, supporting warranty and service planning. Application: suitable for regulated industrial and commercial projects that demand traceable standards and durable outdoor enclosures.
Get a Quick Quote for a Eaton R3CPL130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton R3CPL130?
Enquire Now
FAQs
Plan for outdoor mounting with a compliant enclosure footprint (38.75 in height, 5 in width, 14.5 in depth). Ensure proper clearances for 42 spaces, three-phase 120/208 V wiring, and copper bus connections. Use appropriate conduit routing and secure mounting hardware to maintain weatherproof integrity in NEMA 3R environments.
The R3CPL130 is a main lug only panel, non-combination, designed to accept downstream BR-type breakers. It requires separate branch-circuit breakers to populate the 42 spaces. Verify listing and torque requirements per BR product guides to ensure compliant, safe operation with a maximum 125 A rating.
This enclosure carries CSA Std. C22.2 No. 29 certification and features a NEMA 3R outdoor enclosure. It supports three-phase 120/208 V operation with an interrupt rating of 35 kAIC, making it suitable for outdoor industrial and commercial environments.
Best for outdoor power distribution in industrial facilities, campuses, and commercial buildings requiring a weatherproof main-lug solution with substantial future expansion capacity (42 spaces) and reliable fault protection in three-phase systems.
Consult the Eaton warranty document for BR circuit breakers and the CSA certification scope. Routine inspections should verify enclosure integrity, bus connections, and seal integrity for outdoor use. The unit is designed for long-term reliability in harsh conditions, with documentation available for warranty terms and service guidance.
