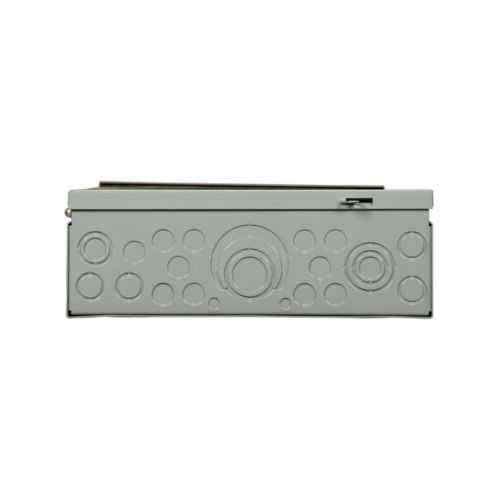

Eaton R3CPL136 Main Lug Loadcenter - NEMA 3R Outdoor
Part Number: R3CPL136
Quick Summary
Eaton R3CPL136 main lug loadcenter enables rugged outdoor power distribution for industrial facilities. When field deployments face weather exposure, space constraints, or wiring complexity, this unit delivers reliable protection and straightforward installation. Key certifications and ratings include CSA Std. C22.2 No. 29 compliance and a weatherproof NEMA 3R enclosure, supporting outdoor use. With 125 A capacity and 42 circuit spaces, the system aligns with Eaton BR components for scalable, standardized electrical distribution. This combination reduces downtime, lowers maintenance costs, and improves site reliability while delivering a compact footprint for tight installation spaces.
Product Information
Extended Description
R3CPL136 Eaton: Eaton BR main lug loadcenter,Non-combination, main lug only,125 A,Outdoor,NEMA 3R,36 Spaces,Three-phase,120/208V
Product Name
Eaton BR main lug loadcenter
Catalog Number
R3CPL136
UPC
622588101308
Product Length/Depth
14.375 in
Product Height
38.75 in
Product Width
5 in
Product Weight
22 lb
Certifications
Contact Manufacturer CSA Std. C22.2 No. 29
Type
Non-combination, main lug only
Amperage Rating
125 A
Bus material
Copper
Cover
Outdoor
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Voltage rating
120/208 V
Enclosure
NEMA 3R
Interrupt rating
35 kAICNEMA 3R
Outdoor-rated protection coupled with high-capacity distribution drives uptime in harsh environments. Feature → Business Impact → Application: NEMA 3R enclosure provides weather resistance that minimizes weather-induced faults, enabling reliable outdoor installations in manufacturing plants, outdoors at utility sites, or on construction projects. Application: Outdoor electrical rooms, remote substations, or rooftop distributions. Feature → Business Impact → Application: 125 A main lug, non-combination design reduces upfront costs and simplifies service changes, supporting fast commissioning and easier future expansion. Application: Electrical rooms with space constraints needing straightforward lug-only distribution. Feature → Business Impact → Application: 42 circuits across 42 spaces with copper bus material offers robust current handling and low resistance connections, improving fault current distribution and reducing heating losses in three-phase systems. Application: 120/208 V three-phase equipment bays, panel boards, and modular subpanels. Feature → Business Impact → Application: Three-phase operation ensures compatibility with standard industrial power, improving efficiency and enabling standardized BR accessories. Application: Industrial automation panels, conveyor systems, and process equipment. Feature → Business Impact → Application: 35 kAIC interrupt rating enhances short-circuit resilience, lowering risk of equipment damage and downtime. Application: High-demand production lines and critical outdoor installations.
Get a Quick Quote for a Eaton R3CPL136
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton R3CPL136?
Enquire Now
FAQs
The R3CPL136 is an outdoor-rated, main lug only loadcenter with 42 spaces designed for three-phase 120/208 V systems. Install on a stable, level surface with proper clearance, secure the enclosure to a fixed base, and verify NEMA 3R weather protection seals. Follow manufacturer guidelines in the Eaton BR ecosystem for wiring, grounding, and labeling to ensure safe, compliant operation.
Yes. The R3CPL136 supports 120/208 V three-phase power and is rated for 125 A. This makes it suitable for mid-size outdoor installations requiring robust, mains-distribution capability with a dense 42-space configuration to accommodate multiple circuits.
This unit carries CSA Std. C22.2 No. 29 certification, signaling compliance with recognized safety standards. It uses a NEMA 3R enclosure, which denotes weather resistance suitable for outdoor use, protecting contents from rain, sleet, and corrosion. Together, these ratings support regulatory compliance and safe operation in outdoor industrial environments.
The R3CPL136 is a non-combination, main lug only design with 42 spaces indicating a fixed circuit capacity. While it supports 42 slots now, future expansion typically involves upgrading to a larger enclosure or adding compatible BR accessories to reconfigure the distribution, ensuring continuity with Eaton’s BR family for consistent installation practices.
Maintenance for the R3CPL136 is focused on routine inspection of connections, bus bars, and enclosure seals to prevent corrosion and ensure proper operation. Warranty information is provided by Eaton; users can refer to the Eaton BR warranty document issued June 2024 for terms and coverage, and should consult the official specification sheet for recommended service intervals and component life expectations.
