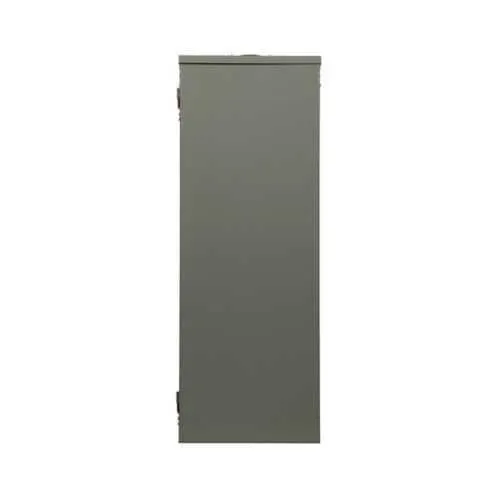

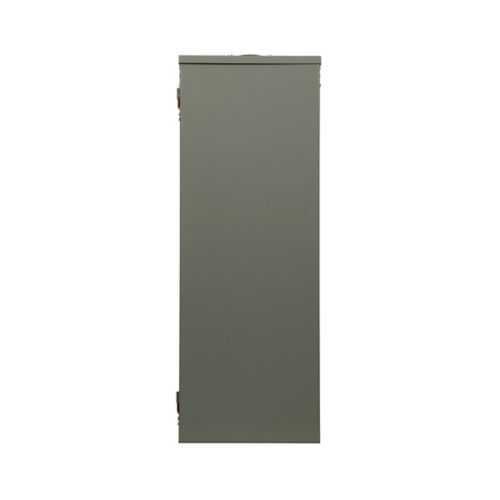

Eaton R3CPL242 Main Lug Loadcenter Outdoor - NEMA 3R
Part Number: R3CPL242
Quick Summary
Eaton BR main lug loadcenter is a rugged outdoor power distribution solution for industrial facilities. For engineers and procurement teams facing outdoor mounting, space and reliability constraints, this unit simplifies compliance and installation. Key attributes include NEMA 3R protection, 120/208 V three-phase operation, 42 circuit positions, and a 200 A main lug rating, backed by CSA standards. This combination delivers improved uptime, safer outdoor service, and scalable capacity for future expansions, supporting critical processes without repeated panel replacements. Designed to work with Eaton BR circuit breakers, it simplifies procurement with a single, standardized enclosure family. For project teams, this means faster installation, predictable lead times, and a clear path to compliance across CSA standards and NEMA requirements.
Product Information
Extended Description
R3CPL242 Eaton: Eaton BR main lug loadcenter,Non-combination, main lug only,200 A,Outdoor,NEMA 3R,42 Spaces,Three-phase,120/208V
Product Name
Eaton BR main lug loadcenter
Catalog Number
R3CPL242
UPC
622588101322
Product Length/Depth
14.375 in
Product Height
38.75 in
Product Width
5 in
Product Weight
26 lb
Certifications
Contact Manufacturer CSA Std. C22.2 No. 29
Type
Non-combination, main lug only
Amperage Rating
200 A
Bus material
Copper
Cover
Outdoor
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Voltage rating
120/208 V
Enclosure
NEMA 3R
Interrupt rating
35 kAICNEMA 3R
Outdoor NEMA 3R enclosure provides weather-resistant protection for outdoor electrical distribution, reducing weather-related downtime and maintenance costs while enabling reliable service in exposed environments. The copper bus material offers superior conductivity and lower resistance, improving overall efficiency and reducing heat buildup during peak loads, which translates to longer equipment life and fewer replacement parts. With 42 spaces and 42 circuits, this loadcenter supports high-density power distribution and future expansion without reclosing to a new panel, enabling scalable motor control and feeder layouts for growing facilities. The 120/208 V three-phase configuration aligns with typical industrial equipment and drives, simplifying integration with existing controls and reducing wiring complexity for a faster, cleaner install. An interrupt rating of 35 kAIC enhances fault tolerance in higher-short-circuit scenarios, increasing system reliability and safety in critical applications.
Get a Quick Quote for a Eaton R3CPL242
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton R3CPL242?
Enquire Now
FAQs
The R3CPL242 is designed for Eaton BR family breakers, ensuring reliable performance with a single, optimized enclosure. Verify compatibility with BR series breakers for main-lug configurations and future extensions.
Key specs include 200 A amperage rating, 120/208 V three-phase operation, 42 spaces, copper bus material, 35 kAIC interrupt rating, and an outdoor NEMA 3R enclosure, suitable for external installation.
Yes. With a NEMA 3R outdoor enclosure and weather-rated design, it’s well-suited for outdoor power distribution, substations, and equipment feeders in industrial environments.
The unit carries CSA standard considerations (CSA Std. C22.2 No. 29) as part of its certified protection, with a weather-rated enclosure suitable for outdoor deployment.
Its durable copper bus, weatherproof enclosure, and high fault tolerance reduce downtime, maintenance costs, and panel replacements, delivering a lower total cost of ownership over the system’s life.
