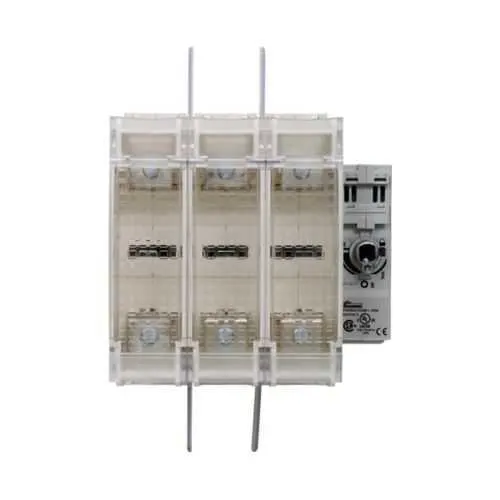

Eaton RDF200J-3 Fused Rotary Disconnect Switch - 600V
Part Number: RDF200J-3
Quick Summary
The Eaton RDF200J-3 fused rotary disconnect switch provides reliable power isolation for electrical protection in industrial panels. Many engineers struggle with safe, code-compliant disconnects in high-current circuits under tight space and downtime constraints. RoHS compliant with catalog references to UL98, supporting regulatory and safety requirements in harsh industrial environments. This solution delivers rugged performance at 600V and 200A, with front or side handle operation and flange mounting for flexible installation. For panel builders and maintenance teams, it translates to improved reliability, faster service, and lower total cost of ownership.
Product Information
Extended Description
RDF200J-3 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600V, 200A, Fused disconnect switch - RDF200J-3
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF200J-3
UPC
051712402675
Product Length/Depth
7.5 in
Product Height
11.5 in
Product Width
5 in
Product Weight
7 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
200A
Voltage rating
600 V
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
RDF200J-3~Switch 200A J 3P UL98
RDF200J-3~Switch 200A J 3P UL98
Bussmann series Fuseology
Eaton Specification Sheet - RDF200J-3
The RDF200J-3 uses a fused rotary disconnect design that provides a clear isolation path during maintenance and fault events, protecting personnel and downstream equipment. This reduces arc flash exposure and fault propagation, improving safety and uptime in motor control circuits in manufacturing and process facilities. Its compact footprint—7.5 in depth, 11.5 in height, and 5 in width—with flange mounting supports straightforward integration into existing control panels. Front or side handle operation offers ergonomic disconnection access, speeding routine maintenance and minimizing setup time during commissioning. Rated for 200A at 600V, the RDF200J-3 delivers reliable isolation for feeders and MCCs while accommodating typical Bussmann fuse configurations. The fused design helps coordinate upstream protection with downstream devices, reducing nuisance trips and enabling selective protection in complex electrical distributions. RoHS compliant and documented in Eaton's specification sheets, this switch aligns with sustainability and compliance goals. The included catalogs and data sheets simplify ordering and ensure the correct part is used in critical safety applications. Installation and maintenance are enhanced by clear part labeling, UPC, and catalog references; the unit ships with a well-documented SKU RDF200J-3 and a standard 051712402675 UPC, supporting fast procurement.
Get a Quick Quote for a Eaton RDF200J-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF200J-3?
Enquire Now
FAQs
The RDF200J-3 supports flange mounting with front or side handle operation, enabling flexible installation in standard control panels. Its dimensions—7.5 in depth, 11.5 in height, 5 in width—allow integration into compact enclosures, while the front/side access facilitates safe disconnection during commissioning and routine maintenance. Ensure proper clearance, wiring clearance, and adherence to the panel’s wiring diagram during installation.
RDF200J-3 is rated for 200A at 600V and uses a fused rotary disconnect design to interrupt current and protect downstream devices. It supports front or side handle operation for safe disconnection and is RoHS compliant. For proper fuse coordination and replacement, reference Eaton’s Specification Sheet and Bussmann fuseing guidelines included in the product literature.
Yes. The RDF200J-3 is designed for motor control centers and industrial panels requiring reliable 600V isolation and 200A capacity. Its restrained footprint and ergonomic handle support quick, safe disconnections during start/stop sequences. This makes it a strong fit for MCCs and critical control panels where uptime and regulatory compliance are essential.
The RDF200J-3 is RoHS compliant, aligning with environmental and workplace safety standards. Catalog documentation references UL98 for listing and evaluation, supporting regulatory acceptance in North American markets. Always verify current listings and local standards with the latest Eaton documentation when selecting this switch for a specific project.
Maintenance benefits include reduced downtime due to straightforward front/side disconnection and a robust fused isolation path that protects equipment during faults. With a 7 lb enclosure and 200A/600V rating, the unit supports durable, long-term operation. Following Eaton’s specification sheets for inspections and fuse status helps sustain uptime and yields favorable total cost of ownership in manufacturing environments.
