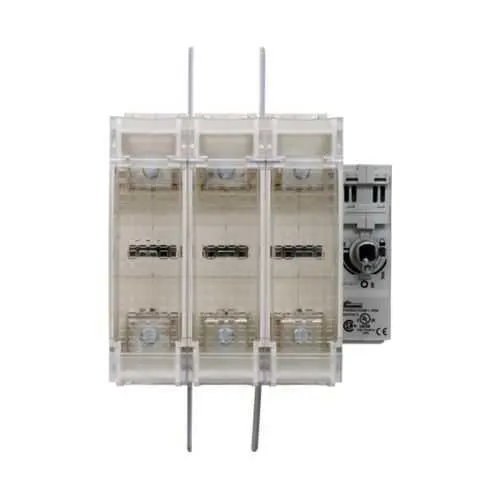

Eaton RDF200J-4 Fused Rotary Disconnect - 600V/200A
Part Number: RDF200J-4
Quick Summary
Eaton RDF200J-4 fused rotary disconnect switch provides reliable isolation for 600V electrical systems in industrial control panels. In real-world plants, outages caused by hard-to-operate disconnects extend downtime and complicate maintenance. This model aligns RoHS compliance with robust electrical ratings, while the front/side handle option simplifies operation in confined spaces. While explicit SIL, CE, or IP certifications aren’t listed in the provided data, RoHS compliance supports regulatory requirements and safer disposal. For OEMs and service teams, the RDF200J-4 offers a straightforward path to compliant isolation, improved fault management, and predictable maintenance planning in motor control centers and equipment enclosures.
Product Information
Extended Description
RDF200J-4 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600V, 200A, Fused disconnect switch - RDF200J-4
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF200J-4
UPC
051712402682
Product Length/Depth
7.5 in
Product Height
11.5 in
Product Width
5 in
Product Weight
7 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
200A
Voltage rating
600 V
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF200J-4
Feature -> Business Impact -> Application: Fused rotary design provides positive isolation, reducing arc flash exposure and fault propagation, which translates to safer maintenance windows and lower risk in control panels. This improves uptime and lowers labor costs during servicing in manufacturing lines and packaging equipment. Feature -> Application: Front/side handle operation enables ergonomic access in tight spaces, speeding disconnections during routine tests or fault isolation in machine safety systems. Application: Industrial control cabinets and MCCs where space is at a premium. Feature -> Application: Flange mounting and compact footprint (7.5 in depth x 11.5 in height x 5 in width) simplifies integration into existing panel layouts and reduces enclosure modifications. Feature -> Application: 600 V/200 A electrical rating ensures compatibility with common plant power distributions and motor circuits, minimizing the need for auxiliary components and simplifying procurement. Feature -> Application: RoHS compliant compliance supports modern procurement and regulatory alignment, reducing lifecycle risk and disposal concerns. Feature -> Application: 200 A fused protection with Bussmann series integration supports selective coordination and fault isolation, enabling faster troubleshooting and reduced outage costs for OEMs and maintenance teams.
Get a Quick Quote for a Eaton RDF200J-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF200J-4?
Enquire Now
FAQs
Install the RDF200J-4 using flange mounting in a suitable enclosure. Verify the panel layout supports a 7.5 inch depth, 11.5 inch height, and 5 inch width footprint, then connect routing for the fused path per the Eaton specification sheet. Use the front or side handle to test positive isolation during commissioning and routine maintenance.
RDF200J-4 provides a 600 V voltage rating and a 200 A current rating with a fused path designed for reliable isolation. Its RoHS compliant build supports modern regulatory expectations, and the unit is intended for use in industrial power distributions and control circuits where dependable disconnect capability is required.
Yes, the RDF200J-4 is designed for applications in control panels and machine safety systems where quick, positive disconnection is essential. Its fused rotary design minimizes fault propagation, enhances operator safety during maintenance, and aligns with typical plant requirements for safe equipment isolation and downtime reduction.
The provided data confirms RoHS compliance for RDF200J-4. Specific standards such as SIL, CE, or IP ratings are not listed in the available information, so verify local regulatory requirements and consult Eaton’s datasheet for any additional certifications relevant to your installation and region.
By providing reliable isolation with a straightforward front/side operation, the RDF200J-4 can reduce maintenance time and outage duration in routine tests and fault isolation. Its robust fuse protection and compact mounting support easier service planning, potentially lowering lifecycle costs and improving plant availability through faster outage recovery and safer resets.
