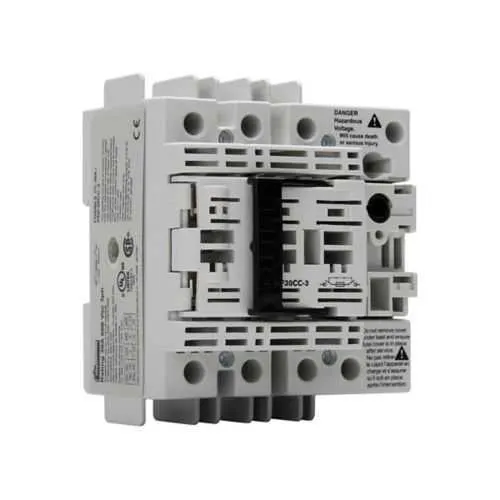

Eaton RDF30CC-3 Fused Rotary Disconnect Switch - Class CC
Part Number: RDF30CC-3
Quick Summary
The Eaton RDF30CC-3 fused rotary disconnect switch is designed to provide reliable isolation for control panels and machine enclosures in demanding industrial environments. Engineers often struggle with sourcing a compact disconnect that fits tight spaces without sacrificing safety or quick operation. This model delivers front handle operation, a 600 V rating, and a 30 A fuse class CC capacity, enabling robust protection for feeders and control circuits. It also aligns with RoHS compliance, reducing regulatory concerns while supporting sustainable design. By combining a small footprint with Eaton Bussmann reliability, you gain installation flexibility, easier maintenance, and faster panel wiring—lowering total cost of ownership and improving uptime in capital-intensive systems.
Product Information
Extended Description
RDF30CC-3 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front handle operation, Fuse class CC, 600V, 30A, Fused disconnect switch - RDF30CC-3
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF30CC-3
UPC
051712402699
Product Length/Depth
3.81 in
Product Height
4.56 in
Product Width
3.3 in
Product Weight
0.99 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
30A
Voltage rating
600 V
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF30CC-3
Feature: Compact footprint and front handle operation. Business impact: Frees panel space and speeds safe disconnections, reducing maintenance time. Application: Control panels in compact automation enclosures and inline equipment. Feature: 600 V, 30 A rating with fuse class CC. Business impact: Provides robust protection and selectivity for motor starters and feeders, helping prevent nuisance trips. Application: Industrial machinery and process lines with higher voltage circuits. Feature: RoHS compliant and durable mechanical design. Business impact: Regulatory compliance and long service life, reducing rework and replacement costs. Application: Global manufacturing environments with stringent environmental requirements. Feature: Easy installation and compatibility. Business impact: Smaller footprint and straightforward mounting reduce wiring complexity and installation time. Application: Standard control panels and equipment enclosures in new builds or upgrades. Feature: Trusted Eaton Bussmann reliability. Business impact: Improves uptime and maintenance planning through proven performance and part availability. Application: Panel builders and OEMs designing robust electrical protection in capital equipment.
Get a Quick Quote for a Eaton RDF30CC-3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF30CC-3?
Enquire Now
FAQs
RDF30CC-3 is designed for compact control panel integration, with a footprint that supports standard enclosures. The front handle operation supports quick, safe disconnection during servicing and startup checks. When planning, verify enclosure depth (3.81 in) and width (3.3 in) to ensure a tidy wiring layout and accessible handle access for maintenance crews.
The RDF30CC-3 provides a 600 V voltage rating and a 30 A amperage rating with a fuse class CC. It is intended for safe isolation of feeds and control circuits in 600 V industrial systems. Its fuse protection allows selective coordination for motor loads and feeders, supporting reliable shutdown during faults while keeping normal operation uninterrupted.
Yes. With a 600 V rating and a 30 A fuse class CC, RDF30CC-3 is well-suited for isolating circuits in motor control panels and other 600 V industrial equipment. Its compact form factor helps when space is limited, and the front handle design aids quick manual operation in routine maintenance or emergency shutdown scenarios.
The data confirms RoHS compliance for RDF30CC-3, aligning with regulatory requirements for restricted substances. Specific certifications such as CE, SIL, or IP are not indicated in the available data, so users should verify any project-specific certification needs with Eaton or their distributor if required for a given region.
The fused rotary design reduces panel space and simplifies wiring, which lowers installation costs and accelerates commissioning. The front handle enables faster disconnection during maintenance, minimizing downtime. Combined with RoHS compliance and the trusted Eaton Bussmann lineage, the solution adds predictable maintenance cycles and improved uptime for capital equipment.
