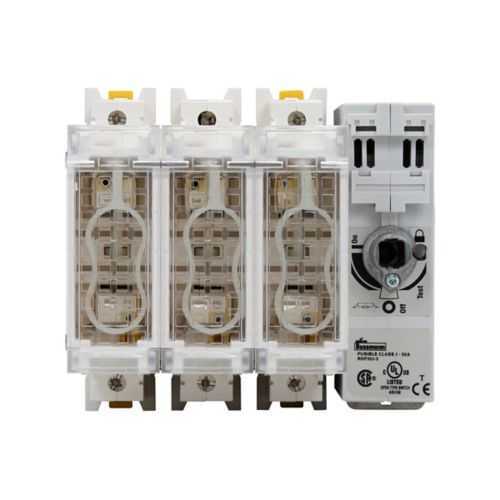

Eaton RDF30J-2 Fused Rotary Disconnect - 600 Vac, 30A RoHS
Part Number: RDF30J-2
Quick Summary
The Eaton RDF30J-2 fused rotary disconnect switch provides reliable circuit isolation for industrial panels and motor-control gear. This design addresses the common challenge of safely de-energizing equipment during maintenance without exposing personnel to live circuits. RoHS compliant and built for durability, it supports 600 Vac and 250 Vdc applications at 30 A, with a compact footprint suitable for tight enclosures. For region-specific approvals such as CE or UL, consult the official datasheet to confirm exact certifications. With front/side handle operation and a robust flange, installation is straightforward in new builds or retrofits, delivering safer service, faster maintenance, and reduced lifecycle costs.
Product Information
Extended Description
RDF30J-2 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 30A, Fused disconnect switch - RDF30J-2
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF30J-2
UPC
051712402712
Product Length/Depth
5.71 in
Product Height
5.36 in
Product Width
4.14 in
Product Weight
3.26 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
30A
Voltage rating
600 Vac, 250 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
RDF30J-2~Switch 30A J 2P UL98
RDF30J-2~Switch 30A J 2P UL98
Bussmann series Fuseology
Eaton Specification Sheet - RDF30J-2
Feature: Fused rotary disconnect design provides reliable isolation and interrupt protection. Business Impact: Minimizes arc flash risk and protects both personnel and equipment during maintenance. Application: Ideal for control panels and machine enclosures in manufacturing lines. Feature: Electrical rating of 30A at 600 Vac / 250 Vdc supports common control circuits and motor-related applications. Business Impact: Enables safe switching of typical industrial loads while meeting system specs and compliance needs. Application: Suitable for conveyors, presses, and automated tooling. Feature: Front/side handle operation with a flange for easy manual operation. Business Impact: Improves accessibility and ergonomics in panel installations, reducing maintenance time. Application: Especially beneficial in cabinets with limited external clearance. Feature: Compact footprint—5.71 in length, 5.36 in height, 4.14 in width, and weight around 3.26 lb. Business Impact: Saves panel real estate and simplifies retrofits in tight spaces while maintaining robust enclosure protection. Application: Retrofit projects and new builds with space constraints. Feature: RoHS compliant construction supports regulatory compliance and sustainable design goals. Business Impact: Eases environmental and waste-handling considerations across multiple regions. Application: Suitable for OEMs and panel builders targeting RoHS-driven programs. Feature: Operating temperature range from -20 °C to 70 °C ensures reliable performance in harsh industrial environments. Business Impact: Improves uptime and reduces failure risk in diverse facilities. Application: Factories, warehouses, and outdoor electrical installations.
Get a Quick Quote for a Eaton RDF30J-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF30J-2?
Enquire Now
FAQs
Install the RDF30J-2 as a two-pole disconnect with the flange mounted to the panel opening. Connect the load and line conductors to the appropriate terminals, then operate the front/side handle to engage or isolate the circuit. Ensure panel clearance accommodates the 5.71 in length and observe safety procedures for de-energizing equipment before installation.
The RDF30J-2 is rated for 30 A at 600 Vac and 250 Vdc, configured as a 2P fused switch. This makes it suitable for controlling standard industrial loads and auxiliary circuits within the specified voltage ranges, while the fused design provides overcurrent protection during isolation.
Yes. With a 30A/600 Vac rating and a fused rotary disconnect design, it provides safe, localized isolation for motors and conveyors during maintenance or changeovers, helping to minimize downtime and improve safety in automated lines.
The RDF30J-2 is RoHS compliant per the provided data. For region-specific requirements such as CE or UL listings, verify exact certifications in the official Eaton datasheet and your project’s compliance requirements before procurement.
The RDF30J-2 offers reliable electrical isolation with a compact footprint, supporting faster maintenance, improved operator safety, and easier regulatory compliance. Its robust construction helps reduce unplanned downtime and extends the life of control panels in demanding environments.
