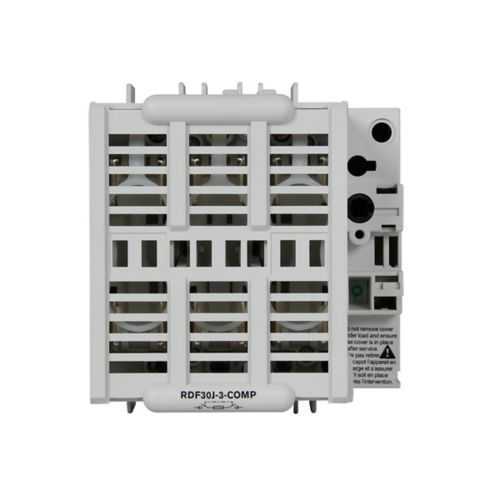

Eaton RDF30J-3N-COMP Fused Rotary Disconnect - 600V/30A
Part Number: RDF30J-3N-COMP
Quick Summary
The Eaton RDF30J-3N-COMP fused rotary disconnect switch provides safe, reliable isolation for medium-power electrical distributions in panels and machines. Maintenance teams struggle with safe de-energization when fuse status is unclear or front-panel operation is cumbersome. RoHS compliant and rated for 600 V / 30 A, the RDF30J-3N-COMP combines compact form with front handle operation for fast, predictable disconnection. This aligns with industrial electrical protection workflows, delivering improved uptime and safer maintenance across control panels and machinery.
Product Information
Extended Description
RDF30J-3N-COMP Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front handle operation, Fuse class J, 600V, 30A, Fused disconnect switch - RDF30J-3N-COMP
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF30J-3N-COMP
UPC
051712402743
Product Length/Depth
11 in
Product Height
6.5 in
Product Width
11 in
Product Weight
5.32 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
30A
Voltage rating
600 V
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF30J-3N-COMP
Compact fused rotary disconnect switch with front handle operation. The front-access design reduces downtime during fuse replacement and testing, enhancing operator safety by isolating circuits cleanly. In machine safety circuits, the RDF30J-3N-COMP enables rapid, positive isolation at the panel face, supporting safer maintenance and quicker commissioning. Electrical rating delivers predictable interrupting capacity. The 600 V, 30 A rating, paired with Class J fuses, supports standard industrial protection schemes and reduces the risk of nuisance openings. RoHS compliance aids global compliance and environmental responsibility, helping you meet supplier requirements and regulatory expectations. Dimensions and weight support installation in compact panels, with 11 in length, 11 in width, and 6.5 in height, plus a weight of 5.32 lb, facilitating accurate panel design. The device’s operating range of -20 °C to 70 °C makes it suitable for a wide range of manufacturing environments, while the rugged construction supports long service life. Compatibility with the Bussmann RDF series simplifies procurement and spares planning, delivering a cohesive protection architecture for electrical protection & circuit control.
Get a Quick Quote for a Eaton RDF30J-3N-COMP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF30J-3N-COMP?
Enquire Now
FAQs
RDF30J-3N-COMP is designed for panel-level isolation in control cabinets and industrial machines. It supports front handle operation and works with Bussmann RDF fuse configurations, making it compatible with standard electrical protection architectures. Ideal for 600 V systems up to 30 A, it fits into compact control panels and safety interlock circuits with straightforward installation.
The RDF30J-3N-COMP is rated for 600 V and 30 A, with fuse class J protection. This combination provides a predictable interrupting path for feeders and control circuits in automated equipment. Ensure your wiring harness and enclosure accommodate the 11 in by 11 in footprint for proper clearance and ventilation.
Yes. The switch operates from -20 °C to 70 °C, accommodating typical industrial and manufacturing environments. Its 11 in by 11 in footprint and 6.5 in height support panel integration in tight spaces, while a weight of 5.32 lb contributes to robust mounting. This makes it suitable for machine enclosures and safety interlocks in demanding settings.
The RDF30J-3N-COMP is RoHS compliant, aligning with restricted substances requirements for modern electronics. The provided data does not list explicit CE or UL markings; verify local regulatory approvals and consult Eaton’s specification sheets (RDF30J-3N-COMP) to confirm certifications for your region and application.
Benefits include reduced maintenance time and safer operation due to rapid, front-panel isolation. The compact design simplifies panel layouts and spare parts management, while the 600 V / 30 A rating supports standard protection schemes. Overall, you can expect lower downtime, improved operator safety, and a smoother maintenance workflow in panel-heavy automation environments.
