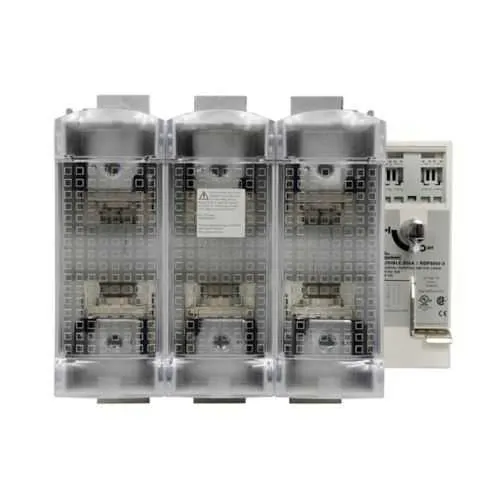

Eaton RDF600J-2 Fused Rotary Disconnect - 600A/600V
Part Number: RDF600J-2
Quick Summary
RDF600J-2 fused rotary disconnect switch isolates power safely in industrial switchgear and control panels. For engineers, downtime and arc-flash risk during maintenance are constant pain points; this front-handled unit enables fast isolation with reduced exposure. RoHS compliant aligns with regulatory expectations for modern electrical components, supporting sustainable practices. With a 600 A rating and voltage support of 600 Vac / 600 Vdc, it covers a broad range of equipment and configurations. Its robust mechanical design and compatibility with Bussmann fuse elements help maintain system reliability while simplifying maintenance workflows and part sourcing. In short, this device balances safety, performance, and ease of integration for industrial power distribution applications.
Product Information
Extended Description
RDF600J-2 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front handle operation, 600 Vac, 600 Vdc, 600A, Fused disconnect switch - RDF600J-2
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF600J-2
UPC
051712402798
Product Length/Depth
14.5 in
Product Height
9.6 in
Product Width
11.2 in
Product Weight
39.12 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
600A
Voltage rating
600 Vac, 600 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF600J-2
Feature → Business Impact → Application: 600A current rating with 600 Vac / 600 Vdc voltage support reduces the risk of overload and electrical faults, enabling safer startup and shutdown sequences. This translates to lower incident costs and minimized unplanned downtime in heavy machinery and panel assemblies; ideal for power distribution in control rooms and process lines. Feature → Front handle operation with a fused design supports rapid, front-access isolation and straightforward fuse changes, cutting maintenance time and exposure during servicing; applicable to retrofit projects and new installations in existing switchgear. Feature → RoHS compliant construction aligns with sustainability and regulatory requirements, simplifying procurement for regulated industries and easing end-of-life handling; useful for automotive, food & beverage, and general industrial automation environments. Feature → Compact footprint with 14.5 in length, 11.2 in width, and 9.6 in height ensures compatibility with standard enclosures, reducing remodeling costs and enabling straightforward retrofits. Feature → 39.12 lb weight signals a robust, durable unit capable of withstanding wiring vibrations and in-plant temperature variations; suitable for factory floors and machine enclosures. Feature → Availability of catalogs and datasheets (PDF) and a dedicated specification sheet supports engineering validation and faster approval cycles, improving procurement lead times and project alignment.
Get a Quick Quote for a Eaton RDF600J-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF600J-2?
Enquire Now
FAQs
RDF600J-2 occupies a substantial but standard footprint suitable for common industrial enclosures. Its dimensions are 14.5 inches in depth, 11.2 inches in width, and 9.6 inches in height, with an approximate weight of 39.12 pounds. When planning a retrofit or new installation, verify clearance for front-access operation and fuse access panels. The unit is designed to integrate with Bussmann series fuse elements, enabling straightforward substitutions without extensive rewiring. Ensure mounting hardware and enclosure space accommodate the front-hand operation and fuse compartment for safe maintenance and testing.
The RDF600J-2 is rated for 600 amperes with dual voltage support of 600 Vac and 600 Vdc. This fused rotary disconnect provides robust isolation for high-current applications and is suitable for use in power distribution panels and machine control circuits. When selecting for a system, confirm that your downstream equipment and fuses are compatible with the Bussmann RDF family and that installation practices meet your site’s electrical codes and safety standards.
Yes, the RDF600J-2 is RoHS compliant, aligning with regulatory requirements for reducing hazardous substances in electrical components. This makes it suitable for regulated industries such as electronics manufacturing, automotive assembly, and process industries where RoHS conformance is expected. Practically, RoHS compliance supports easier supplier qualification and waste handling while maintaining the device’s performance and reliability in routine operating conditions.
Ideal applications include industrial control panels, machine power distribution, and switchgear assemblies requiring safe, rapid isolation. The 600 A rating and dual 600 Vac/600 Vdc capability make it suitable for heavy equipment, conveyors, presses, and packaging lines. Its front-hand operation and fused design help minimize downtime during fuse changes and testing, while its RoHS compliance supports sustainability goals. When selecting for a project, consider enclosure size, fuse compatibility with Bussmann products, and the need for quick-swap fuses during maintenance windows.
Plan for periodic fuse inspection and replacement as part of standard maintenance, leveraging the front-access design to minimize panel opening time and exposure. The fused design provides protective isolation, helping prevent downstream faults during servicing. Its robust construction and moderate weight indicate durability in typical factory environments, but plan for proper handling and storage of spare Bussmann fuse elements. Maintain documentation using the supplied specification sheet and datasheets to ensure correct fuse types and replacement intervals, supporting a predictable total cost of ownership.
