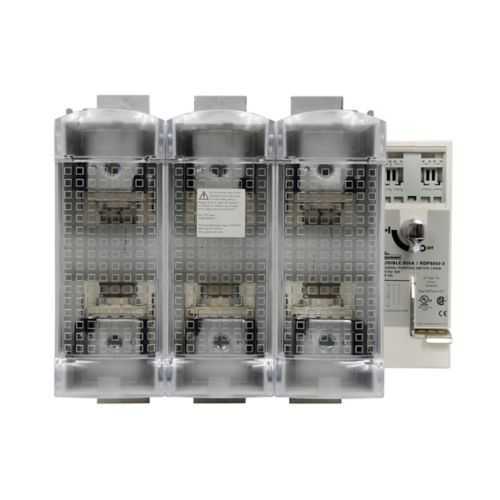

Eaton RDF600J-4 Fused Rotary Disconnect - 600A 600Vac
Part Number: RDF600J-4
Quick Summary
The RDF600J-4 is an Eaton fused rotary disconnect switch for safe motor and feeder isolation in industrial power circuits. Maintenance teams often struggle with arc-flash risk and unclear isolation status during servicing. UL98-listed and RoHS compliant, it meets key safety and environmental requirements for electrical protection and circuit control. The design supports reliable isolation, simple front-access operation, and a compact footprint suitable for control panels. In practice, you gain improved uptime, safer maintenance, and easier compliance across industrial power distribution.
Product Information
Extended Description
RDF600J-4 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front handle operation, 600 Vac, 600 Vdc, 600A, Fused disconnect switch - RDF600J-4
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF600J-4
UPC
051712402811
Product Length/Depth
14.5 in
Product Height
9.6 in
Product Width
11.2 in
Product Weight
39.12 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
600A
Voltage rating
600 Vac, 600 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
RDF600J-4~Switch 600A J 4P UL98
RDF600J-4~Switch 600A J 4P UL98
Bussmann series Fuseology
Eaton Specification Sheet - RDF600J-4
With a 600A amperage rating and dual voltage capability of 600Vac and 600Vdc, the RDF600J-4 delivers robust isolation for high-demand motors and feeders. This translates to reduced nuisance trips and safer maintenance windows, especially in mixed AC/DC installations. It’s well suited for electrical protection and circuit control strategies where fast, reliable disconnection matters in manufacturing lines and process automation. Configured as a 4-pole (4P) fused disconnect, it coordinates fusing with full circuit isolation, enabling improved fault containment and easier switchgear coordination in complex panels. Front handle operation simplifies field operation and lockout/tagout compliance, adding an extra layer of safety during maintenance. RoHS compliant and UL98 listed, this model aligns with regulatory expectations while reducing environmental impact. Its compact footprint and weight facilitate integration into existing panels without sacrificing performance.
Get a Quick Quote for a Eaton RDF600J-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF600J-4?
Enquire Now
FAQs
RDF600J-4 is a 4-pole fused rotary disconnect with 14.5 in depth, 11.2 in width, and 9.6 in height, designed for panel mounting in electrical protection and circuit control assemblies. Ensure panel space for the 39.12 lb unit, provide appropriate enclosure clearances, and use the front-access handle for safe operation during installation and maintenance.
The RDF600J-4 is rated for 600A and supports both 600Vac and 600Vdc. It is a fused disconnect suitable for isolating high-current AC and DC circuits, with a 4-pole configuration to provide complete circuit isolation and safe maintenance procedures.
Yes, the RDF600J-4 supports 600Vdc along with 600Vac. When using DC, ensure proper fuse selection and coordination with the overall protection scheme. The front-access design and 4P configuration help maintain safe isolation points and predictable fault clearance in DC drive and process control circuits.
Key features include front handle operation for easy disconnection, a robust fused design to limit arcing, and a 4‑pole configuration for full isolation. The unit’s RoHS compliance and UL98 listing support regulatory requirements, while the compact footprint simplifies retrofits in existing control panels and switchgear.
RDF600J-4 is UL98 listed and RoHS compliant, aligning with safety and environmental standards for electrical protection devices. These certifications support regulatory audits and green manufacturing initiatives, helping customers meet compliance goals in industrial facilities.
