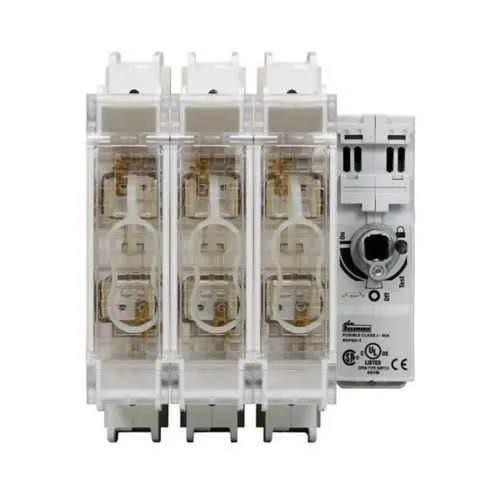

Eaton RDF60J-2 RDF fused rotary disconnect switch - 600 Vac
Part Number: RDF60J-2
Quick Summary
RDF60J-2 is a fused rotary disconnect switch used to safely isolate power in electrical protection applications. Maintenance teams frequently struggle with ensuring reliable isolation and minimizing arc-flash risk during servicing. This model delivers RoHS compliant reliability and is referenced in Eaton literature with UL98 catalog identifiers, supporting global sourcing and compliance. Its front/side handle operation, flange mounting, and 60A, 600 Vac / 250 Vdc ratings enable fast, safe isolation across industrial panels while simplifying stocking, installation, and maintenance workflows. For engineers designing or upgrading electrical protection schemes, RDF60J-2 offers a compact, robust solution that reduces downtime and improves site safety.
Product Information
Extended Description
RDF60J-2 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 60A, Fused disconnect switch - RDF60J-2
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF60J-2
UPC
051712402828
Product Length/Depth
5.75 in
Product Height
7.1 in
Product Width
4.5 in
Product Weight
4.4 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
60A
Voltage rating
600 Vac, 250 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
RDF60J-2~Switch 60A J 2P UL98
RDF60J-2~Switch 60A J 2P UL98
Bussmann series Fuseology
Eaton Specification Sheet - RDF60J-2
Feature → Business Impact → Application: 60A current rating with 600 Vac and 250 Vdc voltage ratings provides robust protection for power circuits, reducing the risk of equipment damage and arc flash during maintenance. This translates to lower lifecycle costs and higher system availability in manufacturing lines and processing plants. Feature → Front/side handle operation improves operator ergonomics and quick engage/disconnect during routine isolations, enabling faster maintenance cycles and consistent safety practices on control panels. Feature → Flange mounting offers flexible installation on various enclosure designs, reducing panel modification time and enabling standardized retrofits across facilities. Feature → RoHS compliant reduces regulatory and environmental risk, supporting sustainable design goals and simplifying supplier compliance audits. Feature → Compact dimensions and a 4.4 lb weight improve handling and integration in crowded electrical rooms, minimizing installation time and freight costs. Feature → Broad compatibility with Bussmann series RDF components supports streamlined spare parts management and faster replacements during outages.
Get a Quick Quote for a Eaton RDF60J-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF60J-2?
Enquire Now
FAQs
RDF60J-2 supports flange mounting with a front/side handle operation, allowing flexible installation on a variety of panel designs. This promotes faster retrofits and simpler alignment with existing enclosures, reducing field labor and revision cycles during commissioning.
The switch is rated for 60A with 600 Vac and 250 Vdc, enabling reliable isolation for typical industrial power circuits. These ratings support robust protection against fault conditions and enable compliant maintenance shutoffs without overstressing downstream equipment.
RoHS compliance is specified for RDF60J-2, helping meet environmental and regulatory expectations. Catalog references mention UL98 in documentation, which should be validated against current Eaton datasheets to confirm formal listing status for your region and application.
Install with flange mounting and ensure the operating handle is accessible for front or side operation. Follow standard safety practices, verify enclosure integrity, and maintain clear isolation paths to maximize reliability. Use compatible Bussmann RDF components to ensure consistent electrical protection and ease of future maintenance.
The RDF60J-2 provides reliable, code-compliant isolation, reducing unplanned downtime and maintenance time through quick, safe switch operations. Its RoHS compliance simplifies regulatory audits, while its robust ratings help extend panel life and minimize spare-part variability, contributing to lower total cost of ownership.
