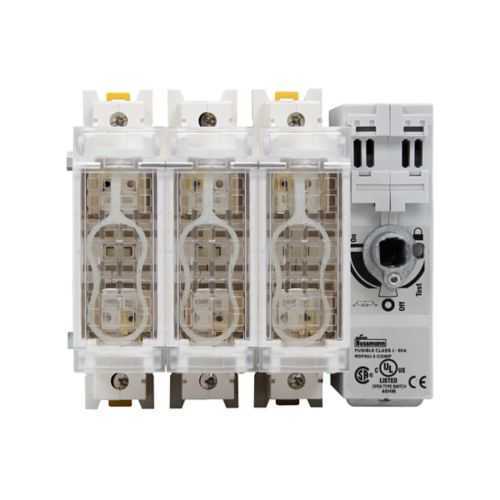

Eaton RDF60J-2-COMP Fused Rotary Disconnect - RoHS
Part Number: RDF60J-2-COMP
Quick Summary
The Eaton RDF60J-2-COMP fused rotary disconnect switch provides reliable isolation for electrical protection panels and motor circuits. Engineers often wrestle with limited control-panel space, cumbersome front or side operation, and the risk of unsafe disconnections during maintenance. RoHS compliance is noted for material safety, but region-specific standards such as CE, IP, or SIL should be verified for your installation. With a compact footprint, 60 A rating, and dual voltage options (600 Vac / 250 Vdc), this RDF model helps shrink panel size while preserving fault protection and serviceability. It aligns with broader Eaton Bussmann RDF strategies to simplify installation, improve maintenance efficiency, and support scalable automation projects.
Product Information
Extended Description
RDF60J-2-COMP Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 60A, Fused disconnect switch - RDF60J-2-COMP
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF60J-2-COMP
UPC
051712402835
Product Length/Depth
5.67 in
Product Height
5.35 in
Product Width
4.73 in
Product Weight
3.44 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
60A
Voltage rating
600 Vac, 250 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF60J-2-COMP
Feature: Fused rotary disconnect design provides immediate isolation and arc-flash protection. Business Impact: Enhances operator safety and reduces unplanned downtime during service. Application: Ideal for motor control panels and machinery isolations where reliable fault protection is required. Feature: 60 A amperage rating with 600 Vac and 250 Vdc voltage ratings. Business Impact: Supports mixed-load panels and reduces the need for multiple devices, lowering part counts and inventory costs. Application: Control circuits, drives, and equipment in industrial automation setups. Feature: Front/side handle operation. Business Impact: Improves ergonomics and enables compliant lockout/tagout procedures, minimizing handling errors. Application: Field service, panel maintenance, and quick-disconnect tasks in constrained enclosures. Feature: Flange mounting with a compact footprint (5.67 in L x 5.35 in H x 4.73 in W). Business Impact: Saves panel space and simplifies retrofits in tight installations, accelerating deployments. Application: Compact control enclosures and small machine control panels. Feature: RoHS compliant construction. Business Impact: Reduces compliance risk and simplifies procurement for electronics-heavy environments. Application: Automotive, electronics assembly, and industrial equipment where regulatory adherence matters. Feature: Operating temperature range from -20 °C to 70 °C. Business Impact: Ensures reliable performance in typical factory floors, outdoors, and warehouse environments. Application: Industrial plants, processing lines, and harsh environments where temperature variability occurs.
Get a Quick Quote for a Eaton RDF60J-2-COMP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF60J-2-COMP?
Enquire Now
FAQs
RDF60J-2-COMP uses flange mounting with a front/side handle, enabling versatile installation in compact control panels. The flange mount simplifies retrofits and aligns with standard enclosure designs, while the dual voltage capability supports mixed-load panels. Ensure mounting clearance and service access per Eaton documentation for safe maintenance.
The switch is rated for 60 A and supports 600 Vac and 250 Vdc, suitable for medium-power circuits. It operates from -20 °C to 70 °C, making it appropriate for typical industrial environments where temperature varies during operation and maintenance.
Yes. The 60 A fused rotary disconnect provides safe isolation for motor circuits and control panels, reducing downtime during servicing. Its compact footprint and front/side handle design improve accessibility in machine rooms, making it a practical choice for panel builders and integrators.
The product is RoHS compliant, supporting regulatory requirements for material safety. Region-specific certifications such as CE or IP may be needed depending on the installation site, so verify local standards and the Eaton datasheet for your application.
Fused isolation minimizes arc-flash risk and enables safer maintenance windows, reducing downtime. The compact, easy-to-install design lowers panel upgrade costs, while the dual-voltage capability reduces part counts. Over time, this can translate to shorter commissioning times and improved uptime in automation lines.
