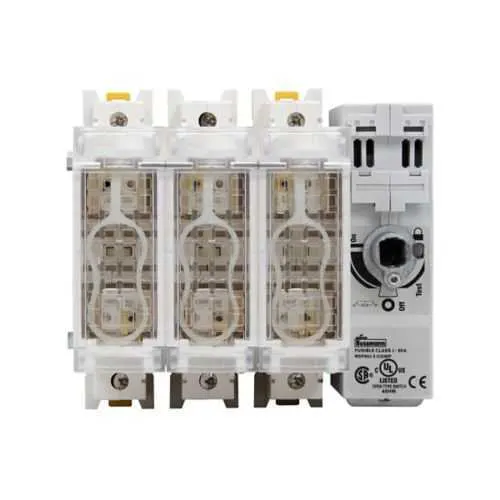

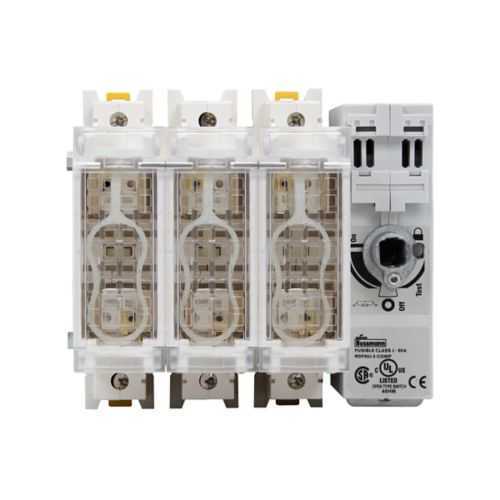

Eaton RDF60J-4-COMP Fused Rotary Disconnect Switch - RoHS Compliant
Part Number: RDF60J-4-COMP
Quick Summary
Eaton RDF60J-4-COMP fused rotary disconnect switch is designed for safe isolation in electrical distribution and control panels. This compact unit addresses common pain points of bulky, hard-to-access disconnects by offering front/side handle operation and a flange-mount footprint that fits tight panel layouts. RoHS compliant construction supports environmentally responsible manufacturing and regulatory alignment. While regional approvals vary, this module is designed to integrate smoothly into industrial control schemes requiring reliable 60A isolation at 600 Vac and 250 Vdc. By combining robust protection with easy installation, it delivers measurable business value through reduced downtime, safer maintenance, and improved panel space utilization in mission-critical applications.
Product Information
Extended Description
RDF60J-4-COMP Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 60A, Fused disconnect switch - RDF60J-4-COMP
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF60J-4-COMP
UPC
051712402873
Product Length/Depth
5.67 in
Product Height
5.35 in
Product Width
4.73 in
Product Weight
3.44 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
60A
Voltage rating
600 Vac, 250 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF60J-4-COMP
Feature → Business Impact → Application: The RDF60J-4-COMP delivers a 60A amperage rating with 600 Vac and 250 Vdc voltage ratings, enabling reliable protection for motors and distribution circuits while maintaining efficient load isolation in mid-range power systems. This directly reduces nuisance trips and short-circuit exposure, improving uptime in manufacturing lines and process control cabinets. Application: Motor control centers, power distribution panels, and equipment racks that demand dependable isolation without compromising space or serviceability. Feature → Business Impact → Application: Front/side handle operation combined with flange mounting simplifies manual operation and mechanical installation in constrained enclosures, cutting commissioning time and minimizing maintenance effort. Application: Retrofit projects and new builds where ease of access and quick disconnect actions are critical for safe servicing. Feature → Business Impact → Application: Compact footprint (5.67 in L × 5.35 in H × 4.73 in W) and 3.44 lb weight enable denser panel layouts and easier handling, lowering enclosure cost and shipping weight while preserving mechanical stability. Application: High-density control panels in automation and distribution. Feature → Business Impact → Application: RoHS compliant construction supports compliance with hazardous-substance restrictions, reducing environmental and regulatory risk across global operations. Application: International manufacturing sites and equipment intended for ISO and regional compliance programs. Feature → Business Impact → Application: The fused design provides safe, intentional isolation during maintenance, enabling safer lockout/tagout procedures and predictable fault response. Application: Safety-critical control circuits in conveyors, presses, and process lines. Additional Insight: Compatibility with Bussmann series components ensures a familiar, streamlined maintenance path for spare parts, reducing downtime related to part sourcing and stocking. Application: OEMs and integrators seeking standardized, long-term support for switched-disconnect solutions.
Get a Quick Quote for a Eaton RDF60J-4-COMP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF60J-4-COMP?
Enquire Now
FAQs
RDF60J-4-COMP is designed for flange-mounted installations with front or side handle operation, making it suitable for standard electrical control panels and compact distribution enclosures. Its dimensions (5.67 in L, 5.35 in H, 4.73 in W) and mounting style support retrofit into already-installed panels without major rework.
The switch is rated for 60 A, with a voltage rating of 600 Vac and 250 Vdc. These specifications enable safe isolation for medium-duty motor control and distribution circuits, while supporting typical industrial control panel duties.
Yes, the RDF60J-4-COMP is RoHS compliant, aligning with restricted hazardous substances requirements. For other regional certifications, verify local regulatory needs as some markets may require additional approvals beyond RoHS.
With a footprint of 5.67 in by 5.35 in by 4.73 in and a weight of 3.44 lb, the unit fits tight panel spaces, reduces enclosure depth, and eases handling during installation and replacement. Front/side handle operation further simplifies servicing in crowded control panels.
Maintenance focuses on ensuring safe isolation during servicing and inspecting fuse elements if applicable. The datasheet notes a Not Applicable warranty, so plan preventive inspection and part stocking accordingly, leveraging RoHS-compliant components to maintain regulatory alignment over time.
