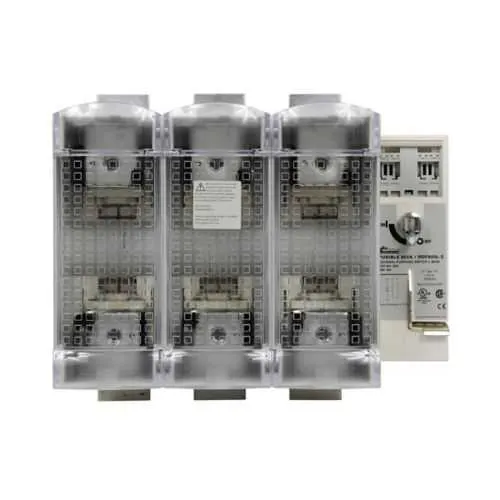

Eaton RDF800L-2 Fused Rotary Disconnect - 800A, 600 Vac
Part Number: RDF800L-2
Quick Summary
RDF800L-2 fused rotary disconnect switch from Eaton delivers reliable isolation for medium-voltage power distribution panels. This solution addresses the common challenge of slow, uncertain line isolation during maintenance and high arc-flash risk. With front handle operation and a robust fused design, it enables quick, visible confirmation of disconnection while limiting fault energy. This unit is RoHS compliant, aligning with sustainability and regulatory expectations. Rated for 800A at 600 Vac and 600 Vdc, the RDF800L-2 supports scalable protection in demanding environments. In practice, it reduces downtime, improves safe operating procedures, and simplifies panel integration for electrical protection and circuit control applications, helping procurement and maintenance teams achieve reliable, code-compliant installations while maintaining overall cost efficiency.
Product Information
Extended Description
RDF800L-2 Eaton: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front handle operation, 600 Vac, 600 Vdc, 800A, Fused disconnect switch - RDF800L-2
Product Name
Eaton Bussmann series RDF fused rotary disconnect switch
Catalog Number
RDF800L-2
UPC
051712402880
Product Length/Depth
14.5 in
Product Height
12.5 in
Product Width
1 in
Product Weight
39.2 lb
Warranty
Not Applicable
Compliances
Not Applicable RoHS Compliant
Amperage Rating
800A
Voltage rating
600 Vac, 600 Vdc
Operating temperature - max
70 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RDF800L-2
Feature: 800A amperage rating with dual-voltage capability. Business Impact: Provides a robust fault-current interruption path for large loads, reducing the risk of uncontrolled arcing and equipment damage during maintenance. Application: Ideal for motor control centers, switchgear banks, and heavy-duty power distribution panels where high-current disconnection is essential. Feature: Fused disconnect topology delivers protective interruption at the switch level. Business Impact: Ensures safe isolation with controlled energy release and clear visual status. Application: Suitable for industrial facilities requiring secure disconnection points in electrical protection circuits. Feature: Front handle operation enables fast, intuitive manual isolation. Business Impact: Reduces training time and operator error while speeding maintenance procedures. Application: On-the-spot isolation in control panels and instrument enclosures. Feature: RoHS compliant construction supports sustainability and regulatory alignment. Business Impact: Helps facilities meet environmental requirements and procurement standards. Application: Panels in manufacturing and facility environments with restricted substances. Feature: Compact footprint and durable build (14.5 in length, 12.5 in height, 1 in width; 39.2 lb). Business Impact: Predictable installation footprint simplifies retrofits and cabinet design, reducing installation time and kick-off costs. Application: New builds or equipment upgrades in control rooms, MCCs, and distribution centers.
Get a Quick Quote for a Eaton RDF800L-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RDF800L-2?
Enquire Now
FAQs
RDF800L-2 is designed for use in electrical protection and control panels requiring high-current isolation. It supports front-handle operation for convenient manual disconnection and fits standard panel assemblies in motor control centers and switchgear configurations. When mounting, ensure clearance for front accessibility and adequate ventilation, and follow manufacturer torque and spec guidelines to maintain safe operation and reliable fuse protection.
The RDF800L-2 is rated for 800A with a voltage rating of 600 Vac and 600 Vdc, providing a robust path to interrupt fault currents in both AC and DC applications. This makes it suitable for demanding industrial loads, including large-motor circuits and feeder lines, while maintaining controlled fault energy during disconnection.
Yes. The RDF800L-2 is purpose-built for inclusion in motor control centers (MCCs) and switchgear assemblies where high-current isolation and reliable disconnection are critical. Its fused design enhances protection against short circuits, while front-access operation simplifies maintenance workflows and minimizes downtime in busy plant environments.
The datasheet specifies RoHS compliance, aligning with restricted substances regulations and sustainability goals. There are no listed CE, SIL, or IP certifications in the provided documentation. Customers should verify regional regulatory requirements for their specific installation or project needs.
Maintenance benefits come from a durable fused design and front handle operation, which reduces maintenance time and operator error. The high-current capability minimizes the need for frequent replacements in demanding lines, contributing to lower lifecycle costs. ROI is realized through improved uptime, safer maintenance procedures, and easier integration into existing electrical protection schemes.
