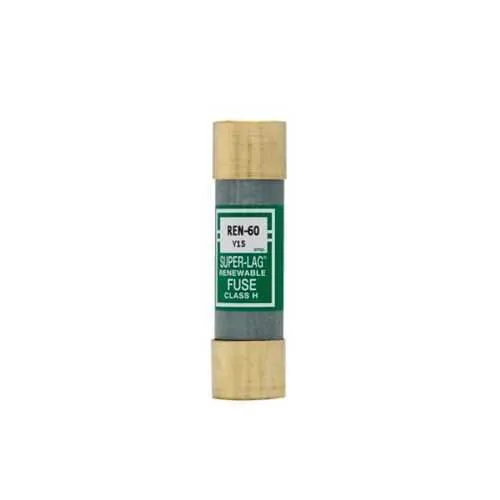

Eaton REN-60 Fuse - Class H 60 A Industrial Grade 10 kAIC
Part Number: REN-60
Quick Summary
The Eaton REN-60 fuse provides time-lag protection for industrial and commercial electrical systems. Engineers often wrestle with nuisance trips and outages when protection coordination isn’t precise or replacements aren’t readily available. This Class H device carries a 60 A rating and a 10 kAIC interrupt rating at 250 V, with ferrule-end connections; the record lists warranty and compliances as Not Applicable, so validate region-specific UL/CE requirements in Eaton’s datasheet. Designed for compatibility with standard Bussmann-series panels, it supports straightforward installation and consistent performance, delivering dependable protection while simplifying stocking, maintenance, and service life.
Product Information
Extended Description
REN-60 Eaton: Eaton Bussmann series REN fuse, time lag, non current-limiting, Industrial and commercial structures, 60 A, Class H, Non-indicating, Ferrule end x ferrule end, 10 kAIC, Standard, 10, 250 V
Product Name
Eaton Bussmann series REN fuse
Catalog Number
REN-60
UPC
051712100601
Product Length/Depth
0.82 in
Product Height
3 in
Product Width
3 in
Product Weight
1.4 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
60 A
Interrupt rating
10 kAIC
Voltage rating
250 V
Packaging type
Standard
Class
Class H
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Super lag, time lag, non current-limiting
REN-60~SUPER LAG RENEWABLE FUSE 60/250
REN-60~SUPER LAG RENEWABLE FUSE 60/250
Bussmann series Fuseology
Eaton Specification Sheet - REN-60
Feature: Time-lag, non current-limiting design enables selective coordination and reduces nuisance trips; Business Impact: minimizes unnecessary outages and extends equipment life; Application: motor feeders and control circuits in industrial facilities. Feature: 60 A rating with a 10 kAIC interrupt rating; Business Impact: robust short-circuit protection for high-current faults; Application: distribution panels and large drives in commercial and light industrial sites. Feature: Ferrule end x ferrule end connections; Business Impact: easier installation and replacement with standard hardware; Application: plug-in fuse holders and panelboards. Feature: Standard packaging with ten fuses per lot; Business Impact: streamlined procurement and consistent stocking for maintenance teams; Application: warehouse and plant maintenance inventories. Feature: Class H construction with 250 V rating; Business Impact: aligned with common electrical protection standards and reliable performance in demanding environments; Application: industrial and commercial electrical protection schemes.
Get a Quick Quote for a Eaton REN-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton REN-60?
Enquire Now
FAQs
The REN-60 fuse has an amperage rating of 60 A, which defines the continuous operating current for protection of feeders and motor circuits in industrial and commercial installations.
Yes. The REN-60 is specified with ferrule-end x ferrule-end connections, enabling straightforward installation in standard ferrule-compatible fuse holders.
The REN-60 fuse provides a 10 kAIC interrupt rating, enabling reliable clearance of high-energy faults in appropriately rated systems at 250 V.
Yes. With Class H construction, 60 A rating, and 250 V operation, the REN-60 is intended for protection in industrial and commercial electrical distributions, including panel and feeder applications.
Datasheets and catalogs are available from Eaton; look for the REN-60 Specification Sheet and full Bussmann-series catalogs to review detailed electrical ratings, installation guidance, and compliance notes.
