Eaton RES-10 Fuse - Class H, 10 kAIC
Part Number: RES-10
Quick Summary
RES-10 fuse provides time-lag protection for industrial power circuits, delivering reliable motor and panel protection in commercial facilities. Engineers often battle nuisance trips and costly downtime from mismatched protection—RES-10’s time-lag design minimizes that risk. Note: Certifications are not listed in the datasheet; verify regional standards such as CE or UL for your safety. Used in industrial electrical protection strategies, the RES-10 aligns with Bussmann series components to improve panel reliability and simplify maintenance, creating a clear path to scalable protection across multiple sites.
Product Information
Extended Description
RES-10 Eaton: Eaton Bussmann series RES fuse, time lag, non current-limiting, Industrial and commercial structures, 10 A, Class H, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 250 Vac, Standard, 10, 600 V
Product Name
Eaton Bussmann series RES fuse
Catalog Number
RES-10
UPC
051712110105
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
10 A
Interrupt rating
10 kAIC at 250 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class H
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Super lag, time lag, non current-limiting

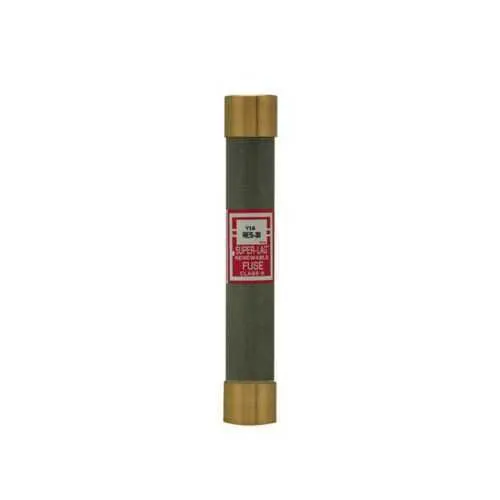

RES-10~SUPER LAG RENEWABLE FUSE 10/600
RES-10~SUPER LAG RENEWABLE FUSE 10/600
Bussmann series Fuseology
Eaton Specification Sheet - RES-10
Time-lag operation is a central feature of the RES-10 fuse. It tolerates brief inrush currents, which minimizes nuisance trips during motor start-up and rapid load changes. The result is shorter unplanned downtime and improved uptime metrics for industrial power distribution, making RES-10 ideal for motor-control panels, lighting feeders, and feeder circuits in commercial facilities. The fuse carries a 10 A amperage rating with a 10 kAIC interrupt rating at 250 Vac and a 600 V voltage rating. This combination provides robust protection against overcurrents in moderate-load circuits and ensures rapid disconnection under fault conditions without risking arcing across conductors. It’s well-suited for industrial distribution boards, MCCs, and power trunks in manufacturing facilities. Ferrule-end x ferrule-end connections and a compact 5 in length with 0.81 in width and height enable straightforward installation in tight panels and standard fuse holders. The standard packaging reinforces fast stocking and replacement, reducing maintenance lead times and supporting consistent replacement part numbers across sites. The RES-10 is non-indicating, delivering clean panel aesthetics and reduced maintenance checks. For facilities requiring indication, Eaton Bussmann offers indicated variants while the standard RES-10 keeps installation simple and cost-effective in large-scale builds. As part of Eaton Bussmann’s protection portfolio, RES-10 aligns with common Bussmann series devices, simplifying integration in mixed fleets. In renewable energy installations and traditional facilities alike, RES-10 supports reliable protection, fast replacement, and optimized spare parts planning.
