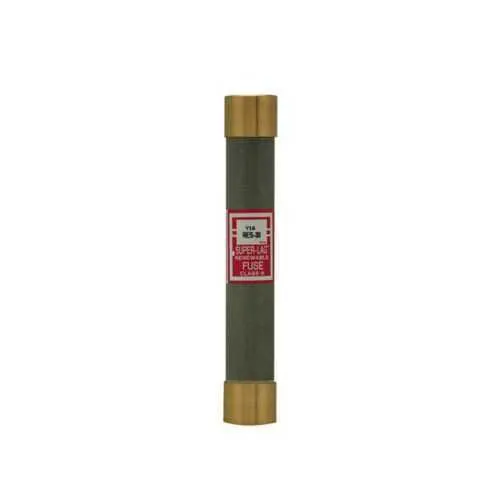

Eaton RES-30 fuse - 10 kAIC at 250 Vac
Part Number: RES-30
Quick Summary
Eaton RES-30 fuse provides reliable overcurrent protection for industrial electrical systems. Facilities often face nuisance trips and costly downtime from improper protection coordination, so a time-delay solution can reduce outages while maintaining safety. Key characteristics include Class H construction, 600 V rating, and a 10 kAIC interrupt rating with ferrule-end connections for quick, secure panel installation. This fuse supports robust protection in commercial and industrial environments, delivering dependable performance and straightforward procurement. For engineers and procurement teams, the RES-30 pairs with standard Bussmann series components to streamline stocking, maintenance, and compliance in demanding electrical systems.
Product Information
Extended Description
RES-30 Eaton: Eaton Bussmann series RES fuse, time lag, non current-limiting, Industrial and commercial structures, 30 A, Class H, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 250 Vac, Standard, 10, 600 V
Product Name
Eaton Bussmann series RES fuse
Catalog Number
RES-30
UPC
051712110303
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.18 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
30 A
Interrupt rating
10 kAIC at 250 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class H
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Super lag, time lag, non current-limiting
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RES-30
Feature: Time-delay, non-current-limiting design. Business Impact: Enables selective coordination with upstream protection and reduces nuisance trips during transient faults. Application: Motor control centers and lighting feeders in industrial facilities. The RES-30’s time-lag behavior helps maintain uptime in equipment with inrush currents, while preserving circuit protection integrity. Feature: 30 A, 600 V rating with a 10 kAIC interrupt rating at 250 Vac. Business Impact: Provides safe interruption of fault currents, protecting conductors and devices and supporting safety standards. Application: Distribution panels and industrial control circuits requiring reliable fault handling. Feature: Class H, ferrule end connections. Business Impact: Improves installation speed and connection reliability in control panels, reducing commissioning time. Application: Replacements in existing Bussmann series installations and new panel builds. Feature: Standard packaging of ten with 5 in length and compact 0.81 in footprint. Business Impact: Eases stocking, reduces warehouse space, and simplifies field replacements. Application: High-volume procurement for electrical distributors and OEMs. Feature: Non-indicating fuse with ferrule terminations. Business Impact: Simplifies identification and maintenance planning while ensuring durable, vibration-resistant terminations. Application: Industrial protection in harsh environments where quick verification is not required.
Get a Quick Quote for a Eaton RES-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RES-30?
Enquire Now
FAQs
The RES-30 is a 30 A, 600 V, 10 kAIC time-delay fuse with ferrule ends, ideal for motor control circuits, lighting feeders, and distribution panels in industrial and commercial structures. Its time-lag design tolerates short surges, enabling selective coordination with upstream protection and reducing nuisance trips.
Time-lag (super lag) delays fuse clearing during brief inrush events common with motors, preventing unnecessary outages while still protecting against sustained faults. This improves equipment uptime and extends motor life by avoiding excessive voltage dips and unnecessary replacements.
Yes. The RES-30 uses ferrule end x ferrule end terminations and is designed to fit standard Bussmann series mounting arrangements, enabling straightforward replacement in existing panels and minimizing installation time.
Plan for a fuse that is 5 inches long with a 0.81 inch width and height, weighing about 0.18 lb. Use in circuits up to 600 V with a 10 kAIC interrupt rating at 250 Vac, and ensure ferrule crimp leads are properly installed for reliable, vibration-resistant connections in panels.
The RES-30 offers 10 kAIC interrupt rating at 250 Vac, indicating it can safely interrupt high fault currents in typical commercial and industrial circuits, protecting conductors and equipment while meeting short-circuit withstand requirements.
