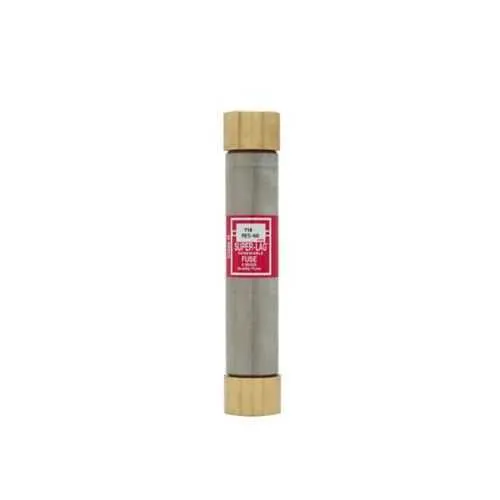

Eaton RES-35 Fuse - 10 kAIC at 250 Vac
Part Number: RES-35
Quick Summary
The Eaton RES-35 fuse is a time-lag, non current-limiting protective device designed for industrial and commercial electrical systems. Engineers often face the challenge of balancing nuisance trips with reliable protection under fluctuating load profiles. This Bussmann series fuse uses a Class H construction and supports up to 10 kAIC interrupt rating at 250 Vac, with a 600 V rating, offering robust protection in demanding environments. While specific CE, SIL, or IP certifications are not listed in the provided data, the RES-35 aligns with standard industrial protection practices. Its compatibility with standard Bussmann fuse holders and straightforward stocking—10 fuses per pack—delivers clear value for maintenance and procurement programs, supporting uptime and project timelines.
Product Information
Extended Description
RES-35 Eaton: Eaton Bussmann series RES fuse, time lag, non current-limiting, Industrial and commercial structures, 35 A, Class H, Non-indicating, 10 kAIC at 250 Vac, Standard, 10, 600 V
Product Name
Eaton Bussmann series RES fuse
Catalog Number
RES-35
UPC
051712110358
Product Length/Depth
5.5 in
Product Height
1.06 in
Product Width
1.06 in
Product Weight
0.36 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
35 A
Interrupt rating
10 kAIC at 250 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class H
Fuse indicator
Non-indicating
Quantity
10
Special features
Super lag, time lag, non current-limiting
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - RES-35
Feature → Business Impact → Application: Time-lag, non current-limiting design (Super lag) minimizes nuisance trips during startup surges while maintaining dependable protection, reducing panel reset time and downtime in HVAC, lighting, and control circuits. This translates to measurable efficiency improvements in commercial buildings and manufacturing lines, where steady operations are critical. Feature → Business Impact → Application: 35 A amperage rating paired with a 600 V voltage rating enables protection for medium-load feeders and motor circuits without overfusing, improving safety margins and compliance in electrical distribution to industrial panels. Feature → Business Impact → Application: 10 kAIC interrupt rating at 250 Vac provides high surge tolerance for arrival currents and fault scenarios, enabling safer startup sequencing in machine rooms and control panels while simplifying protection coordination with upstream devices. Feature → Business Impact → Application: Class H physical design coupled with standard packaging and 5.5 in length simplifies retrofits, ensuring easy compatibility with existing fuse holders and stock management for facilities teams. Feature → Business Impact → Application: Non-indicating fuse indicator reduces panel clutter and maintenance checks, supporting cleaner enclosures and reducing unnecessary visual inspections in high-density electrical cabinets. Feature → Business Impact → Application: Pack quantity of 10 and standard packaging streamline procurement, reduce ordering complexity, and support just-in-time stocking for maintenance cycles in industrial facilities.
Get a Quick Quote for a Eaton RES-35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RES-35?
Enquire Now
FAQs
The RES-35 is a Bussmann series Class H fuse with a 5.5 in length and standard packaging, designed to fit typical Class H fuse holders used in industrial and commercial panels, simplifying retrofits and replacements.
Key ratings are 35 A amperage, 600 V voltage rating, and 10 kAIC interrupt rating at 250 Vac, enabling reliable protection for mid-range feeders and motor circuits in industrial equipment.
No, the RES-35 is non current-limiting with time-lag characteristics. This reduces nuisance trips on startup while still protecting the circuit, making it suitable for loads with brief surge currents.
Datasheets and catalogs are available from Eaton, including the Eaton Specification Sheet for RES-35 and Bussmann series catalogs. You can also view related Bussmann resources such as full-line catalogs and Fuseology videos for installation guidance.
The RES-35 is suited for electrical panels, motor control centers, feeders, and other protection points in industrial and commercial structures, where reliable 35 A protection, high interrupt rating, and standard form-factor support efficient maintenance and uptime.
