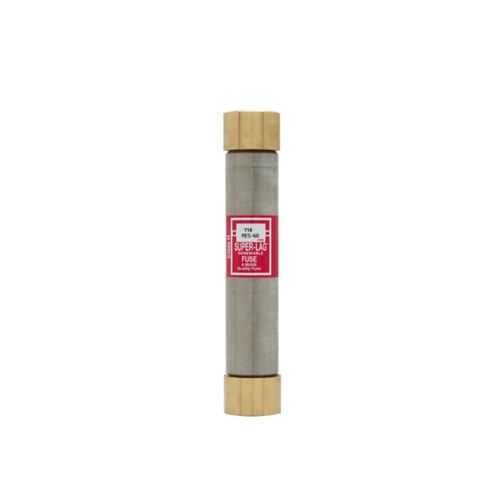

Eaton RES-60 Fuse - 60A Class H, 10 kAIC @250V
Part Number: RES-60
Quick Summary
Eaton RES fuse is a time-lag fuse designed for protecting electrical circuits in industrial and commercial structures. Engineers often contend with nuisance trips and mis-coordinated interrupt ratings that drive maintenance costs and downtime. The RES-60 delivers a Class H fuse with a 60 A rating and a 10 kAIC interrupt rating at 250 V, ferrule-end connections, and a 600 V rating for reliable, safe operation. While the data notes the standard packaging of ten and non-indicating indicators, these attributes translate into straightforward stock management and quick field replacement. In practical terms, this fuse supports efficient electrical protection and circuit control, helping maintenance teams reduce inventory complexity and improve uptime.
Product Information
Extended Description
RES-60 Eaton: Eaton Bussmann series RES fuse, time lag, non current-limiting, Industrial and commercial structures, 60 A, Class H, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 250 Vac, Standard, 10, 600 V
Product Name
Eaton Bussmann series RES fuse
Catalog Number
RES-60
UPC
051712110600
EAN
5027590465991
Product Length/Depth
0.78 in
Product Height
5.5 in
Product Width
0.78 in
Product Weight
0.29 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
60 A
Interrupt rating
10 kAIC at 250 Vac
Voltage rating
600 V
Packaging type
Standard
Class
Class H
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Super lag, time lag, non current-limiting
Edison full line catalog 1005
Edison full line catalog 1005
Edison full line catalog 1005
Bussmann series Fuseology
Eaton Specification Sheet - RES-60
Time-lag design (feature) provides selective protection by allowing brief inrush currents without tripping. This improves system reliability and reduces unnecessary downtime in motor starters, HVAC panels, and power distributed circuits. Applications include panel feeders and motor control centers in manufacturing environments. 60 A amperage rating (feature) ensures protection is matched to medium-load circuits while avoiding nuisance trips on minor surges. This translates to fewer fuse replacements and better asset protection for MCC feeders and branch circuits. 10 kAIC interrupt rating at 250 Vac (feature) delivers robust short-circuit protection in line with common industrial protection schemes. It supports safer shutoffs in service entrances, distribution panels, and heavy equipment enclosures. Ferrule-end connections (feature) mean straightforward installation using standard ferrule terminals, reducing commissioning time and improving connector reliability. Non-indicating indicator (feature) simplifies inventory and minimizes misreading in crowded panels; combined with standard packaging of 10 units, it eases stocking and replacement planning. Compact Class H housing and a 600 V rating suit a broad range of industrial and commercial applications, enabling safer, more efficient electrical protection in control panels and power distribution.
Get a Quick Quote for a Eaton RES-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton RES-60?
Enquire Now
FAQs
The RES-60 is designed for industrial and commercial circuits that use ferrule-end terminations. It provides 60 A protection with a 600 V rating and a 10 kAIC interrupt rating, making it suitable for motor feeders, panelboards, MCCs, and other distribution points where orderly protection and easy field replacement are valued.
Time-lag fuses tolerate brief inrush currents typical of motors and transformers, reducing nuisance trips. This improves uptime for motorized equipment, minimizes unwarranted outages, and enhances coordination with upstream protection devices, which is critical for equipment longevity and predictable maintenance cycles.
Ideal applications include panel boards, motor control centers, feeders, and service entrances in manufacturing or processing facilities. The 60 A rating, Class H construction, and 10 kAIC at 250 V make it well-suited for circuits with moderate load and higher inrush, while ferrule-end connections streamline installation.
In the provided data, Compliances and related certifications are listed as Not Applicable. Nevertheless, the RES-60 provides a Class H fuse with a 60 A rating and a 10 kAIC interrupt rating at 250 V, along with standard interconnections (ferrule ends) and a 600 V rating, which aligns with common industrial protection practices.
Using the RES-60 can reduce downtime due to nuisance trips, simplify stock management with a standard 10-unit packaging, and streamline field replacements thanks to ferrule-end connections. Over time, these factors translate to lower maintenance labor costs and improved equipment availability in critical production lines.
